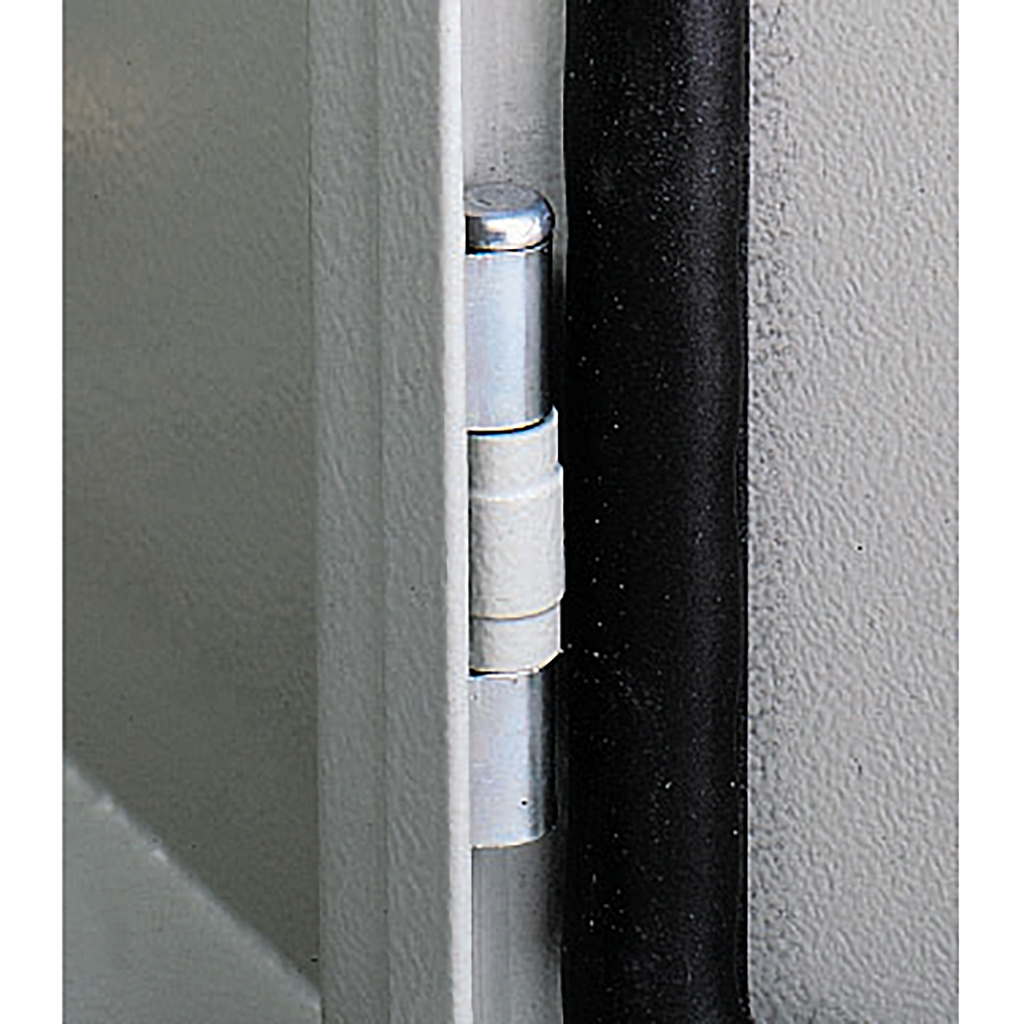

Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.

SWM standard hinge 120

SQDNSYAEDH120S3D NSYAEDH120S3D 3606480169021
2.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.-1
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Complementary Attributes
    • Maximum Load : 50 kg/m²
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : fixing elements, 1 x hinge body, 1 x pin
    • Enclosure Nominal Dimensions : -, -
    • Fixing Mode : by screws - on enclosure body
    • Material : hinge body treated sheet steel, pin aluminium
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Application : multi-purpose
    • Energy Efficiency Optimized : False
    • Mounting Location : enclosure
    • Operating Angle : 120 °
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : hinge
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : Yes
    • Sustainable Packaging : No
    • Silicone Free : Yes
    • Warranty In Months : 18
    • Pep Code : ENVPEP1001004EN
    • Offer Owner Code : 190789
    • Pn : 1
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Environmental Disclosure : ENVPEP1001004EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1001004EN
  • General Attributes
    • Product Or Component Type : hinge
  • ETIM
    • ETIM 8 : EC001167
    • ETIM 9 : EC001167
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, France
