SQUARE D

Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters

CLIMASYS FORCED VENT. 54 M3/H,

SQDNSYCVF54M230MM2 NSYCVF54M230MM2 3606480151415
58.17 / EA
http://schema.org/OutOfStock

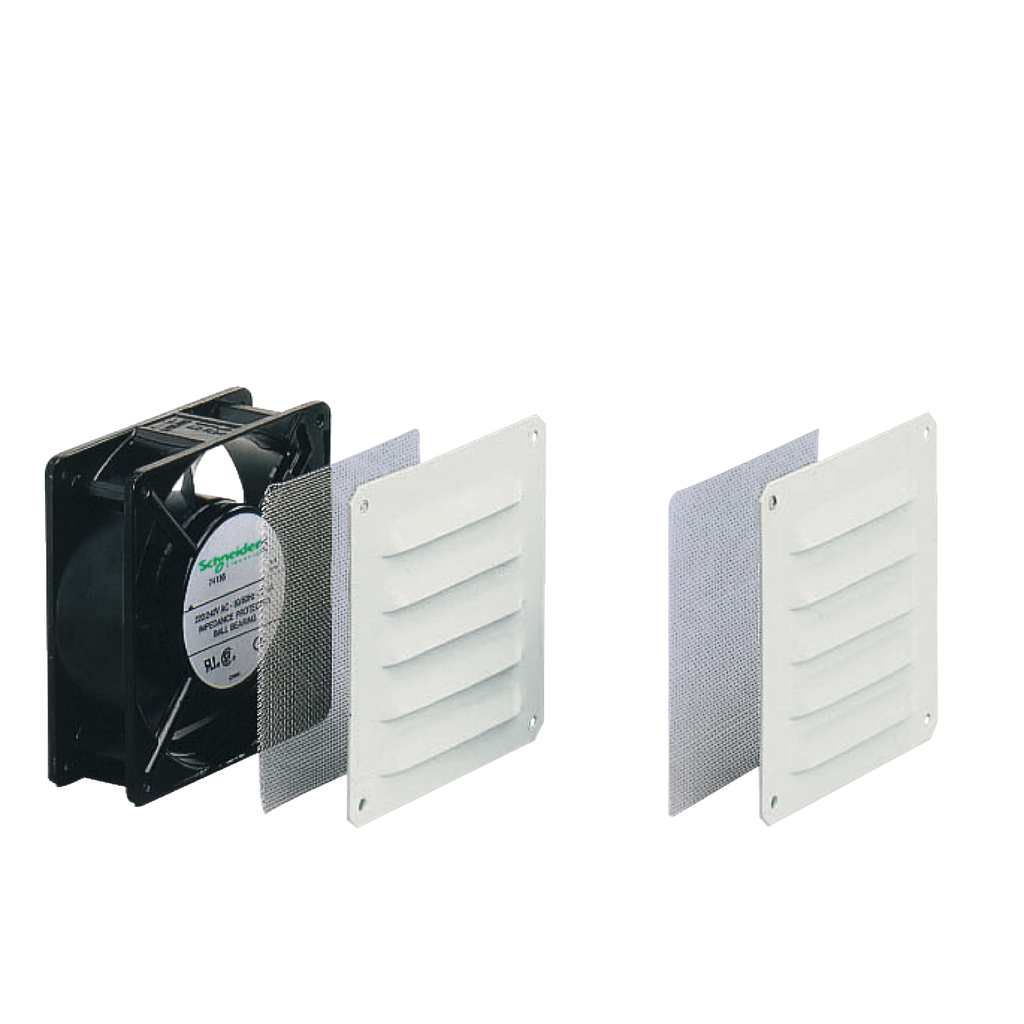

Mayer-DDS-Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters-1
  • Height: 4.72 in
  • Input Voltage: 230 V
  • Warranty Length: 18 mth
  • Width: 4.72 in
ClimaSys CV Axial motor ventilator with 2 metal outlet grilles and 2 anti-insect filters. 230V 50Hz or 60Hz. 22 W 50 Hz, 20 W 60 Hz. Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. 120 x 120 x 38 mm. Cut-out dimensions of 96 x 96 mm. Metal Outlet grilles, Steel made, epoxy-polyester powder finish, Grey RAL 7035, IP33 Protection, IK10 Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.
QTY
  • Product Description
  • Features
  • Specifications
ClimaSys CV Axial motor ventilator with 2 metal outlet grilles and 2 anti-insect filters. 230V 50Hz or 60Hz. 22 W 50 Hz, 20 W 60 Hz. Free flow rate of 170 m3/h at 50 Hz and 208 m3/h at 60 Hz. 120 x 120 x 38 mm. Cut-out dimensions of 96 x 96 mm. Metal Outlet grilles, Steel made, epoxy-polyester powder finish, Grey RAL 7035, IP33 Protection, IK10 Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.
  • Features
    • 22 W 50 Hz, 20 W 60 Hz
    • Connections terminals by cable
    • Cut-out dimensions of 3.8in x 3.8in
    • Ext Dimensions : 4.7in x 4.7in x 1.5in
  • Physical Attributes
    • Color : outlet grille Gray RAL 7035)
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : 1 axial motor, 1 power cord, 2 anti-insect filter, 2 metal louvre
    • Material : outlet grille steel, filter stainless steel 304L
    • Carbon Footprint Of The Distribution Phase A4 : 2.0511770062685244, 2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.5437021586682294
    • Carbon Footprint Of The Installation Phase A5 : 0.11502351359088266, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.721458572628
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1107017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Cut Out Dimensions : 96 x 96 mm
    • Package Weight Lbs : 1.035 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : fan
    • Range : ClimaSys
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 10 kg CO2 eq.
    • Type Of Ventilation Filter : anti-insect
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Medium Desc : Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP110717EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
    • Product Name : ClimaSys CV
  • Environment Attributes Main
    • Take Back : No, Nej
    • Air Flow : free flow rate without filter or grille: 170 m3/h, overall flow rate: 54 m3/h at 50 Hz
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 10.431361251155636
    • Circularity Profile : ENVEOLI1107017EN
    • Environmental Disclosure : ENVPEP110717EN
    • IP Degree Of Protection : IP33
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP110717EN
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : fan
  • Surge Protection And Filtering Attributes
    • Type Of Ventilation Filter : anti-insect
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Voltage : 230 V 50/60 Hz
  • Specifications
    • Height : 4.72 in
    • Width : 4.72 in
