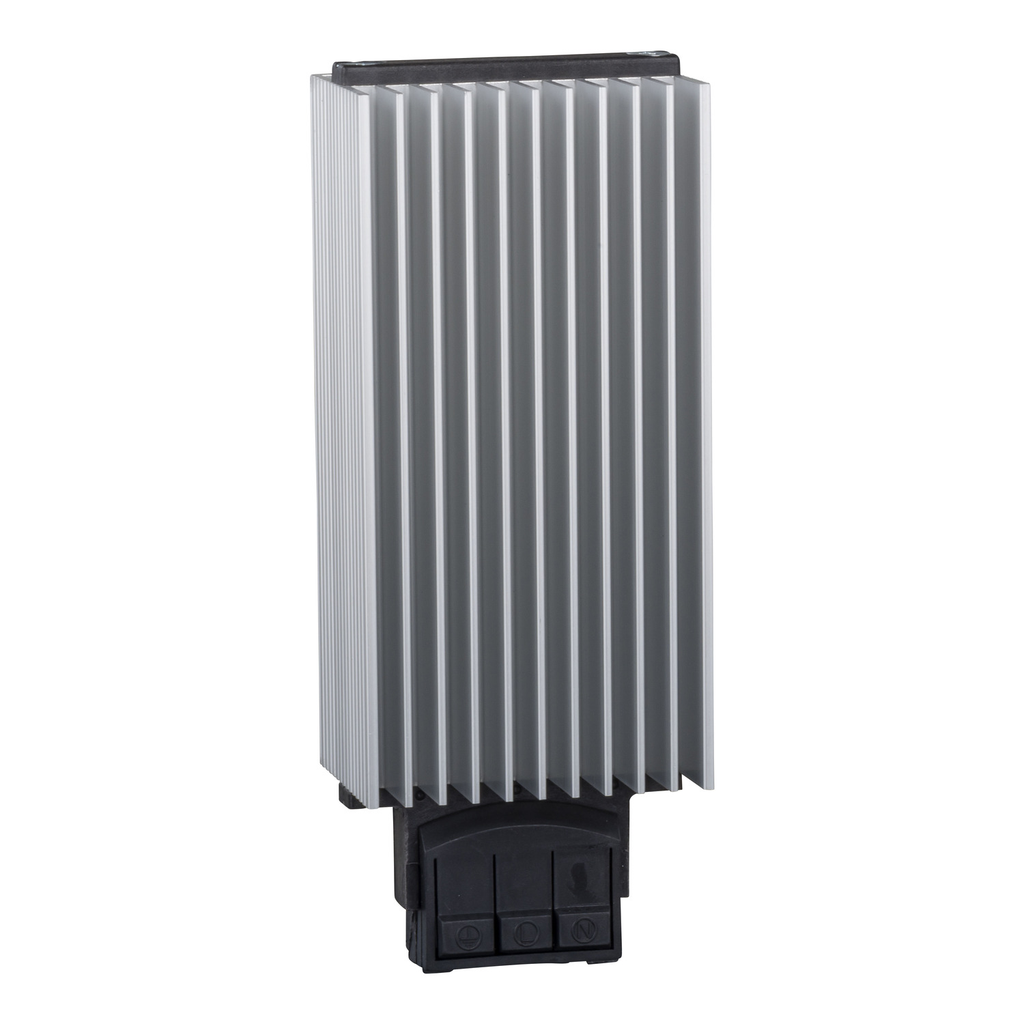

ClimaSys PTC heating resistance. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller. Prisma P/G compatible.

• Features
• Extruded aluminum body.
• Surface temperature limited to 75 ºC when the ambient temperature is -5 ºC.
• Heaters equip with a power cable with a length of 500 mm with silicon insulation, with a connection terminal block.
• The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure
• The enclosure must be sealed to prevent the entry of air from the outside
• An electrical protection device must be installed on the supply side of the unit

• Conformance Attributes
• Product Certifications : UL, VDE
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Condition Of Use : air sealed enclosure, heaters must be installed with a thermal controller, electrical protection is needed
• Carbon Footprint Of The Distribution Phase A4 : 1.078106561748867, 1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.4754124025020338
• Carbon Footprint Of The Installation Phase A5 : 0.0514031814780364, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 6 kg CO2 eq., 5.786611859676767
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-30
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Fixing Mode : by clips
• Material : body extruded aluminium
• Mounting Support : 35 mm DIN rail
• Operating Position : vertical
• Package Weight Lbs : 544.000 g
• Power Range : 55 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : resistance heater
• Range : ClimaSys
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Medium Desc : ClimaSys PTC heating resistance 55W, 110-250V
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2103011_V2
• Database Version : 2024-01
• Pep Verification Date : 2025-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : The resistance heaters prevent the formation of condensation and guarantee the ideal temperature for the correct operation of the electronic components in the enclosure during 10 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; China, CN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Product Name : ClimaSys CR
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 7.391534005405704
• Ambient Air Temperature For Operation : -40-70 °C
• Environmental Disclosure : ENVPEP2103011_V2
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2103011_V2
• Pep Verification Date : 2025-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : resistance heater
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 110...250 V AC 50/60 Hz
• Specifications
• Country of Origin : Spain, United States
• Depth : 70 mm
