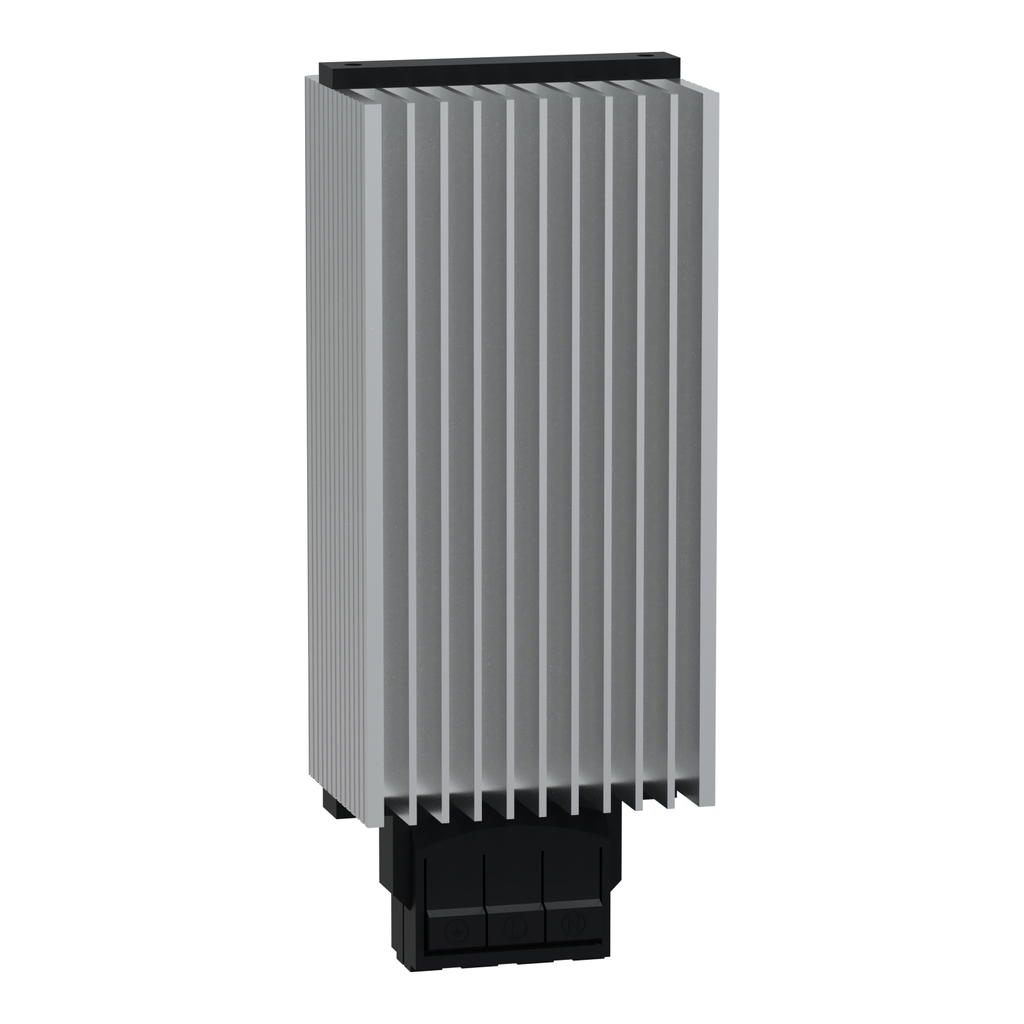

ClimaSys PTC heating resistance. 100W, 110-250V AC, 50/60 Hz. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.

• Features
• Extruded aluminum body.
• Surface temperature limited to 75 ºC when the ambient temperature is -5 ºC.
• Heaters equip with a power cable with a length of 500 mm with silicon insulation, with a connection terminal block.
• The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure
• The enclosure must be sealed to prevent the entry of air from the outside
• An electrical protection device must be installed on the supply side of the unit
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance
• Rohs : Compliant By Exemption
• Reach : Reference contains Substances of Very High Concern above the threshold
• Reach Compliance Date : 2025-12-10
• Scip Number : 60bb7229-9ac3-41cb-896e-a93aa448ebf8
• Sustainability
• TakeBack : No
• Carbon Footprint : 1778.1327822291078
• Recycled metal content in percentage : 0 %
• Packaging with recycled cardboard : No
• Packaging without single use plastic : No
• Product contributes saved avoided emissions : No
• PVC Free : Yes
• Silicon Free : Yes
• Weight, Height, Width, Depth
• Height : 7.87 in (200 mm)
• Width : 3.35 in (85 mm)
• Depth : 2.56 in (65 mm)
• Logistical informations
• Customs number : 8516808000
• Specifications
• Country of Origin : China
• Warranty
• Warranty : Core product: 18 month(s)
