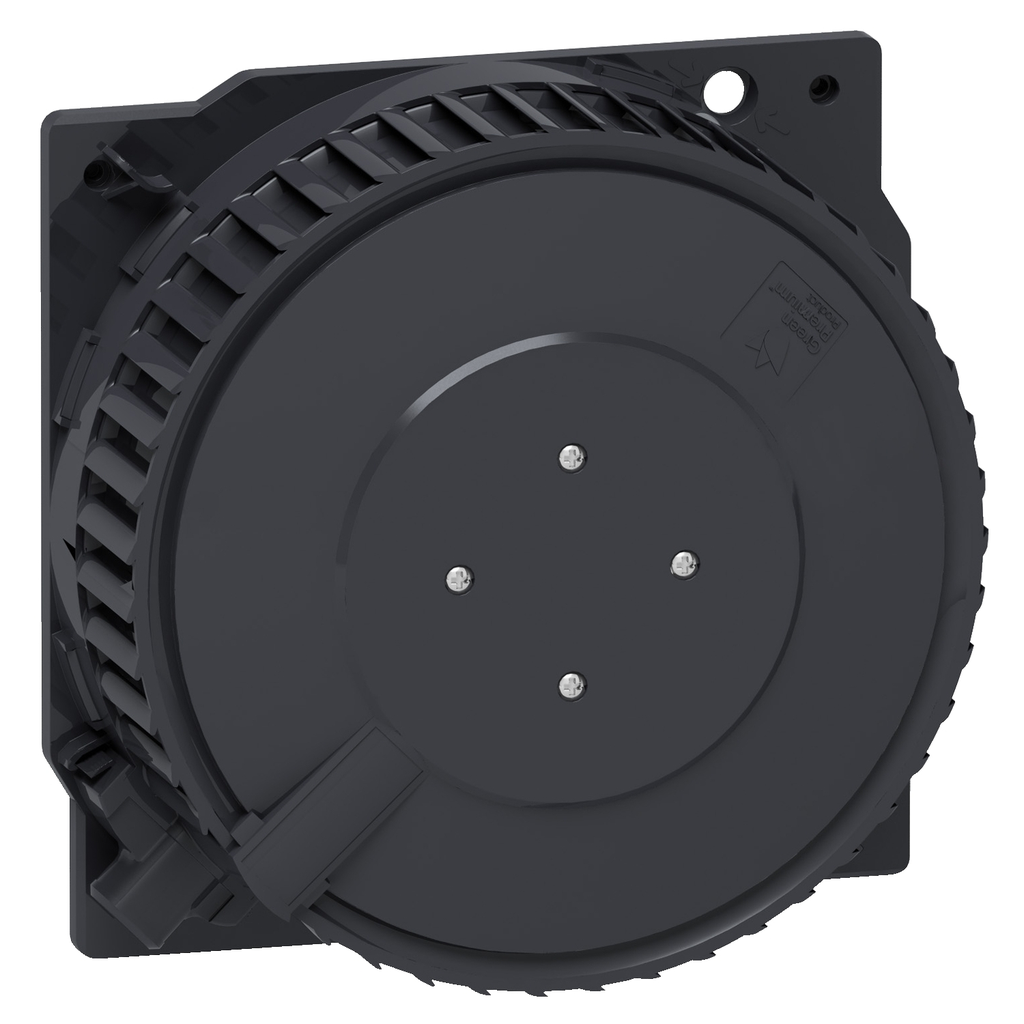

ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC

ClimaSys CVHD outdoor HD fan-b

SQDNSYCVF550M230FB NSYCVF550M230FB 3606480678769
257.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC-1
  • Country of Origin: Spain
  • Depth: 0 in
  • Height: 8.78 in
  • Warranty Length: 18 mth
  • Width: 8.78 in
ClimaSys CV Fanbox without grille and filter 230V 50Hz or 60Hz. 72 W 50 Hz, 88 W 60 Hz. Free flow rate with standard filter of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz. 350 Pa flow rate 0 m³/h. 223 x 223 x 90 mm. Spring clamp terminal. 1 fanbox and 4 scre
QTY
  • Product Description
  • Features
  • Specifications
ClimaSys CV Fanbox without grille and filter 230V 50Hz or 60Hz. 72 W 50 Hz, 88 W 60 Hz. Free flow rate with standard filter of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz. 350 Pa flow rate 0 m³/h. 223 x 223 x 90 mm. Spring clamp terminal. 1 fanbox and 4 scre
  • US Rated Supply Voltage
    • 230 V AC +/- 10 %
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M230FB_3D-CAD&p_File_name=NSYCVF550M230FB_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M230FB_3D-CAD&p_File_name=NSYCVF550M230FB_2D-back.dwg
    • https:
  • Range Compatibility
    • Thalassa PHD
    • Spacial S3HD
    • Spacial SFHD
  • Maximum Pressure
    • 350 Pa flow rate 0 m³/h
  • IP Degree Of Protection
    • IP55 grid:
    • IP44
  • Carbon Footprint Of The Installation Phase A5
    • 0.27161107943586205
    • 0.3 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 4 kg CO2 eq.
    • 3.6452251939953166
  • Condition Of Use
    • flow rates depends on the work point, see ProClima software
    • overfrequent filter replacement should be avoided
    • outside temperature must be 5 °C lower than inside temperature
    • filter must be cleaned and replaced regularly
    • surrounding environment mus
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 16 kg CO2 eq.
    • 15.871734059423028
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 fanbox
    • 4 screw
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Line Rated Current
    • 0.3-0.4 A 50 Hz
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Input Voltage
    • 230 V AC 50/60 Hz
  • Air Flow
    • free flow rate: 550 m3/h at 50 Hz
    • 550 m3/h at 60 Hz
  • Carbon Footprint Of The Distribution Phase A4
    • 4.843552273739395
    • 5 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • dark grey RAL 7016)
  • Product Certifications
    • CE
    • UL conforming to UL 508 A
    • CSA conforming to CSA C22.2
    • ecodesign directive 2009/125/EC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Manufacturing Carbon Footprint : 15.871734059423
    • Distribution Carbon Footprint : 4.84355227373939
    • Installation Carbon Footprint : 0.271611079435862
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 3.64522519399532
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1107017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1916
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bearing Type : ball
    • Package Weight Lbs : 2.444 kg
    • Power Range : 72...88 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : fanbox without grille and filter
    • Product Specific Application : outdoor heavy duty
    • Range : ClimaSys
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 25 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 24.6321226065936
    • Pep Code : ENVPEP110717EN
    • Pep Verification Date : 2025-08-05
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
    • Product Weight In G : 2444
    • Functional Unit Description : "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 17
    • Energy Consumption On Product Lifetime In Kwh : 0
    • Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; France, FR
    • Energy Model Installation A5 : No energy used
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
    • Recyclability Potential In : 64
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.18066531735289582
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.14806091218525314
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.019926675368173274
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0007958956517501023
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.011881834147719319
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.08733729188714337
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : -0.0695257280936111
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.09932365574560423
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.012901464734278579
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.016896462917714537
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.06381562188762208
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 24.70100902010103
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 15.970419090805716
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 4.843552273739395
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.2587096147015835
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 3.6283280408543335
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -9.93903739296608
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 24.6321226065936
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 15.871734059423028
    • Climate Change Total Kg Co2 Eq Distribution A4 : 4.843552273739395
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.27161107943586205
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 3.6452251939953166
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -9.875221771078456
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0015207119005781046
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.001520458608512295
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000041508107939
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000668232707519
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000024619465765522
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0012273561679767594
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 420.06672381989415
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 324.93216612449476
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 60.08408006209072
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 2.6941635142481153
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 32.35631411906058
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -167.52608335116065
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 481.30265392070083
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 407.8996739430698
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 39.30150636019601
    • Ecotoxicity Fresh Water Ctue Installation A5 : 3.682067527913465
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 30.419406089521534
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -50.46798969397506
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000286888722425244
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000272842868858456
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000005486361911834
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000478008893
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000008081482761954
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000218448562167486
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.02677396914473569
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.002067674758305571
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.011109288851694916
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.013597005534735205
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00008530227022644212
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00007209365881531902
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000056543845196781
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000623048832431866
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000641268463483664
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000033893283013974
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 101.23978977433498
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 100.93219457156724
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.004000776822776623
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.006779989510372086
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.296814436434591
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -96.76132561942774
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000059995465004191
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000055708058766729
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000007112267657
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000003073541880519
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001206752089286
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00001109251387793569
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000059604912192331
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000057234231895237
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000858164796721
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000080168231223
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000143234726915
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000053292491412909
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 1.9558134523565296
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.9270850912189625
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0.0007434327558576928
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.02798492838170919
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 15.380933682584976
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 14.911509219710181
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.01070620141672443
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.041551380599382515
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.4171668808586868
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -3.8320894708363524
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.02914461181708635
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.01715605072744747
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.009067280586289686
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00034616412618067207
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.002575116377168519
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.006092925067591954
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 1.6378134054275713
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.20481272088733782
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 1.4330006845402334
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.2829350328978287
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.23173488693354977
    • Net Use Of Fresh Water M3 Distribution A4 : 0.005704077449871392
    • Net Use Of Fresh Water M3 Installation A5 : 0.0004888994738269003
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.04500716904058063
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.090578952783727
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 22.461189428017203
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 20.547085148846676
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.004914895896831791
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.11636609503038035
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.7928232882433146
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -13.695712658155399
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000654088737193815
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000218868376816221
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000426131730772837
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000352283185778
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000873634641898
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000146251840183812
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.10002679410168763
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.05879814056658569
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.032788079171367744
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0005519887434881436
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.007888585620246056
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.023836887485548512
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.01581678706063525
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.014739585957344786
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0009600759461034367
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00001438236551329596
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00010274279167372832
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.009979736457039248
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.3149198941166741
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.18467038509005607
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0983530011413849
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00240803575854117
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.029488472126691975
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.067195766149938
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23.375729117431955
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 23.375729117431955
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 440.37019894556545
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 343.14705105710954
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 60.084472881585114
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 3.047510432106366
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 34.091164574764406
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -175.79443403081868
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 20.303378781749256
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 18.214788588692777
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003928194944007411
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.3533469178582511
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.7348504557038298
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -8.26835067965803
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 23.375729117431955
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 23.375729117431955
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 396.69109104638403
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 301.55653335098464
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 60.08408006209072
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 2.6941635142481153
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 32.35631411906058
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -167.52608335116065
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.369356269278085
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.369356269278085
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.7588955636653365
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14.93402251247117
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.845432319414687
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003928194944007411
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.3533469178582511
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.7348504557038298
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -4.50945511599269
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 11.02884668639195
    • Water Use M3 Eq Manufacturing A1 A3 : 9.941878879034133
    • Water Use M3 Eq Distribution A4 : 0.24499012647197632
    • Water Use M3 Eq Installation A5 : 0.020992064046909224
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 0
    • Water Use M3 Eq End Of Life C1 C4 : 0.8209856168389312
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -3.8902105338881485
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : fanbox without grille and filter
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=431969304&lang=en-us
    • Take Back : No
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 24.6321226065936
    • Circularity Profile : ENVEOLI1107017EN
    • Environmental Disclosure : ENVPEP110717EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP110717EN
    • Pep Verification Date : 2025-08-05
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 8.78 in
    • Width : 8.78 in
    • Depth : 0 in
