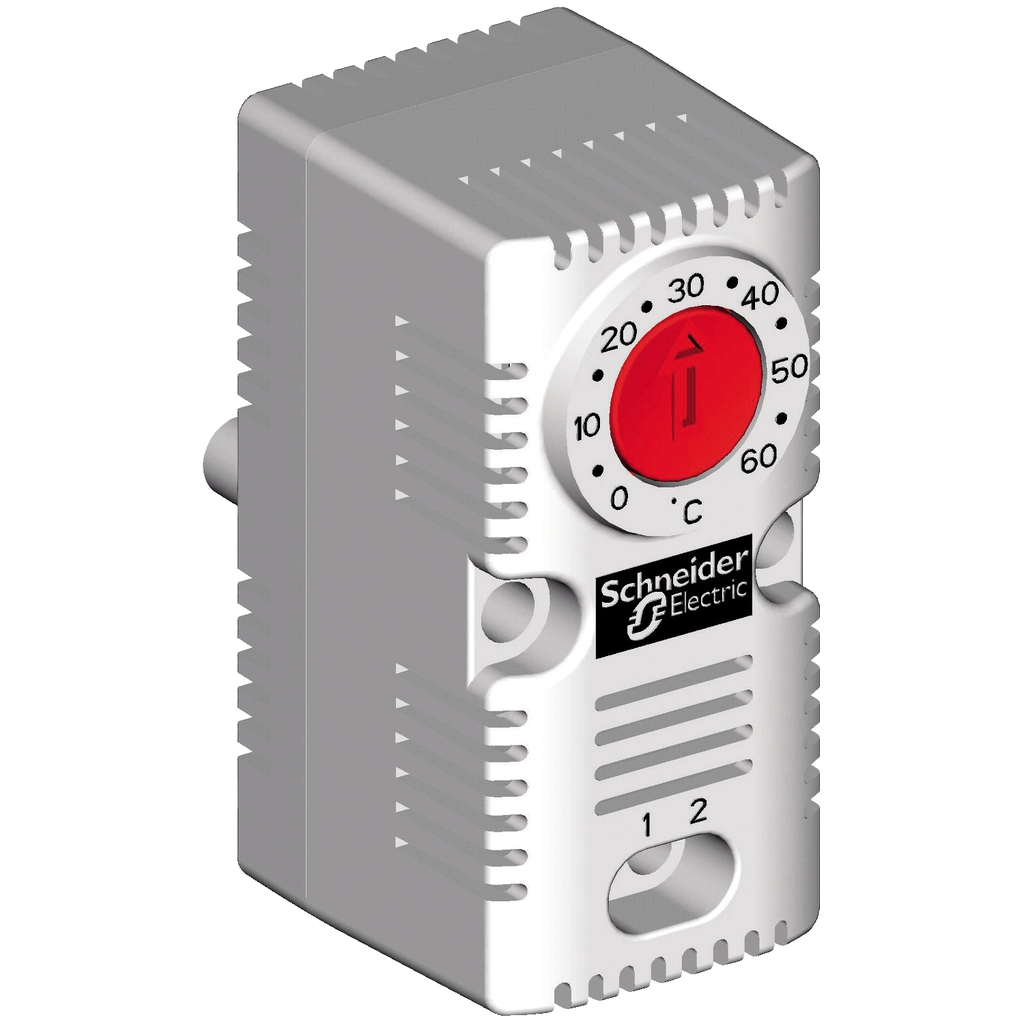

ClimaSys CC - simple thermostat 240V - range of temperature 0…60°C - NC - °C

THERMOSTAT

SQDNSYCCOTHC NSYCCOTHC 3606480152498
49.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-ClimaSys CC - simple thermostat 240V - range of temperature 0…60°C - NC - °C-1
  • Height: 2.68 in
  • Input Voltage: 240 V
  • Material: Polycarbonate
  • Number of Outputs: 1 Heating Function
  • Warranty Length: 18 mth
  • Width: 1.3 in
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
QTY
  • Product Description
  • Features
  • Specifications
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
  • Features
    • Sensor type Bimetal - 100000 cycles
    • Multi mounting mode : DIN rail, mounting plate, cross rails
    • Electrical connection 4 terminals, clamping capacity : 2.5 mm²
    • Ext Dimensions : 2.7in x 1.3in x 1.7in
  • Physical Attributes
    • Color : Light gray
  • Conformance Attributes
    • Product Certifications : UL
  • Complementary Attributes
    • Maximum Switching Capacity : 2 A 120...250 V AC inductive 0.6, 10 A 250 V AC resistive, 15 A 120 V AC resistive, 30 W DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Mounting Location : Spacial upright, 35 mm DIN rail, cross rails, on mounting plate
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contact Resistance : 10 mOhm
    • Contacts Type And Composition : NC
    • Electrical Connection : 4 terminals 2.5 mm²
    • Flame Retardance : self-extinguishing conforming to UL94 (material V0)
    • Hysteresis : 7 K +/- 0.4K
    • Information Displayed : temperature in °C
    • Material : PC
    • Mounting Mode : clipped
    • Package Weight Lbs : 66.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : simple thermostat
    • Range : ClimaSys
    • Returnability : Yes
    • Sensor Type : bimetal
    • Sustainable Packaging : No
    • Temperature Setting Range : 0-60 °C
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Medium Desc : ClimaSys CC - simple thermostat 240V - range of temperature 0…60°C - NC - °C
    • Country Of Origin 6 : FR
    • Country Of Origin 7 : IT
    • Country Of Origin 8 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2103012EN
    • Service Life In Cycles : 100000 cycles
    • Global Commercial Status : Commercialised
    • Product Name : ClimaSys CC
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -20-80 °C
    • Environmental Disclosure : ENVPEP2103012EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2103012EN
  • General Attributes
    • Product Or Component Type : simple thermostat
  • Output Attributes
    • Number Of Outputs : 1 heating function
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Voltage : 240 V
  • Specifications
    • Height : 2.68 in
    • Width : 1.3 in
    • Country of Origin : Germany, Spain
