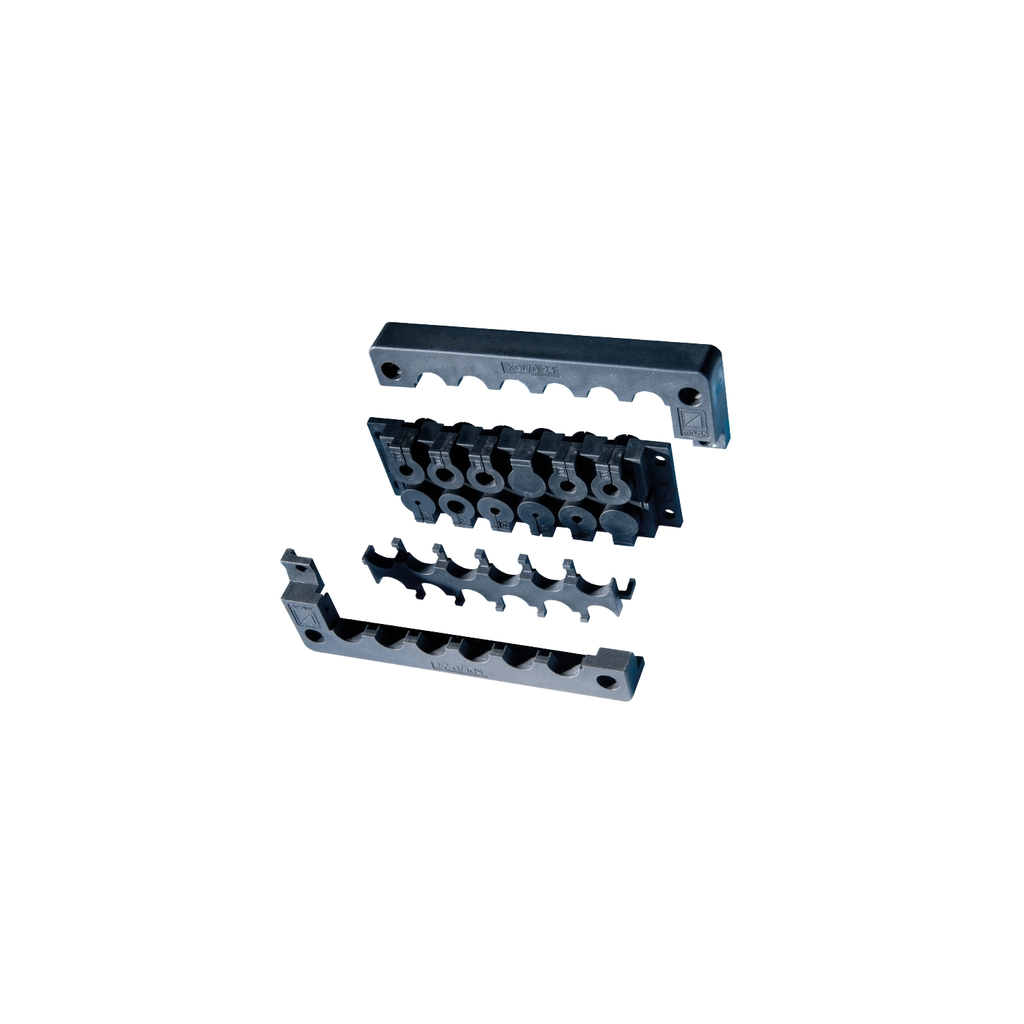

Cable entry system type Multi-CS dimensions 112 x 36 mm and 9 openings

Cable entry system type Multi-

SQDNSYDCD249 NSYDCD249 3606489429058
61.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable entry system type Multi-CS dimensions 112 x 36 mm and 9 openings-1
  • Country of Origin: France
  • Depth: 0.59 in
  • Height: 5.83 in
  • Warranty Length: 18 mth
  • Width: 2.28 in
Multi-purpose cable entry for enclosures. The product is made of polypropylene. The width is 58mm. The height is 148mm. The depth is 15mm. The cable entry is to be mounted on enclosure bottom. Ingress protection rating is IP65, ensuring the level of cabl
QTY
  • Product Description
  • Features
  • Specifications
Multi-purpose cable entry for enclosures. The product is made of polypropylene. The width is 58mm. The height is 148mm. The depth is 15mm. The cable entry is to be mounted on enclosure bottom. Ingress protection rating is IP65, ensuring the level of cabl
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002282_3D-CAD&p_File_name=MCADUE0002282_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0002282_3D-CAD&p_File_name=MCADUE0002282_2D-back.dwg
    • https://downlo
  • IP Degree Of Protection
    • IP65 IEC 60529
  • Cable Entry
    • 8 grommets 2-12 mm
    • 1 grommet 12-24 mm
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Flame Retardance
    • V0 conforming to UL 94
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1951
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Material : polypropylene
    • Package Weight Lbs : 196.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : cable entry
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Pep Code : ENVPEP100104EN
  • General Attributes
    • Product Or Component Type : cable entry
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=497067169&lang=en-us
    • Take Back : No
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -30-100 °C
    • Environmental Disclosure : ENVPEP100104EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP100104EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
    • Height : 5.83 in
    • Width : 2.28 in
    • Depth : 0.59 in
