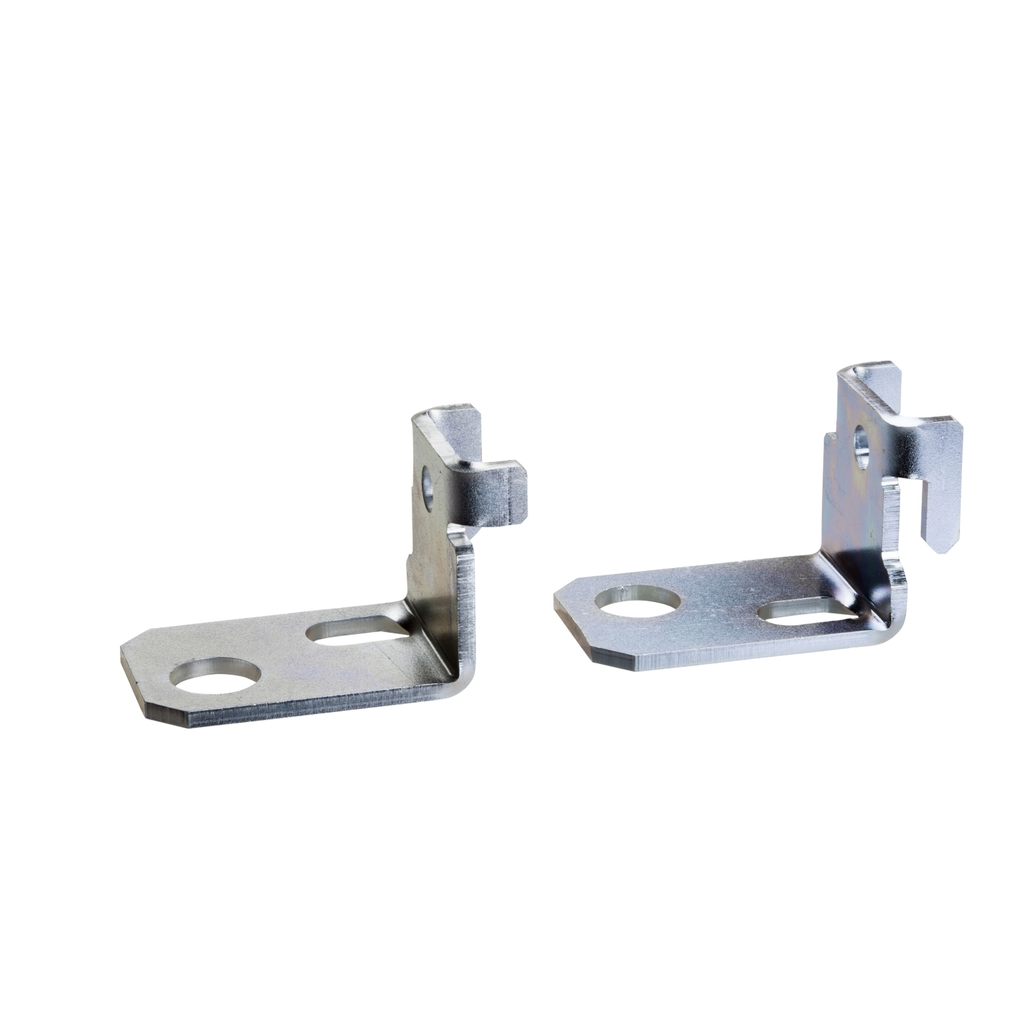

This is a set of bracket to fix the enclosure to the floor by usign the fixing points of previous version (OLN/CMO or PanelSeT 6000 and 18500). This product is suitable for PanelSeT SF and PanelSeT SM electrical enclosures. It is made of zinc-coated steel. The product contains 4 pieces. The fixing elements are not supplied.

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 4 bracket
• Enclosure Nominal Dimensions : -, -
• Fixing Mode : by screws M12 - on floor
• Material : steel
• Mounting Support : plinth kit
• Carbon Footprint Of The Distribution Phase A4 : 0.038499657, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.470169521
• Carbon Footprint Of The Installation Phase A5 : 0.044346799, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.9 kg CO2 eq., 0.869023693
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-14
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : fixing bracket
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Software Version : v5.9.4
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Thickness : 4 mm
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Accessory Separate Part Category : fixing accessory
• Warranty In Months : 18
• Pep Code : ENVPEP1109023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential, In % : 98
• Offer Owner Code : 190789
• Pn : 1
• Height Nominal : 32.5 mm
• Height Useful : 32.5 mm
• Width Nominal : 30 mm
• Width Real : 30 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.42203967
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : fixing bracket
• ETIM
• ETIM 8 : EC002625
• ETIM 9 : EC002625
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
• Height : 1.28 in
• Width : 1.18 in
• Depth : |53 mm
