Actassi - ventilation plate with 3 cut-outs with fan

ACTASSI - VENTILATION PLATE WI

SQDNSYECVT3V440 NSYECVT3V440 3606480148972
272.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-Actassi - ventilation plate with 3 cut-outs with fan-1
  • Warranty Length: 18 mth
  • Width: 16.54 in

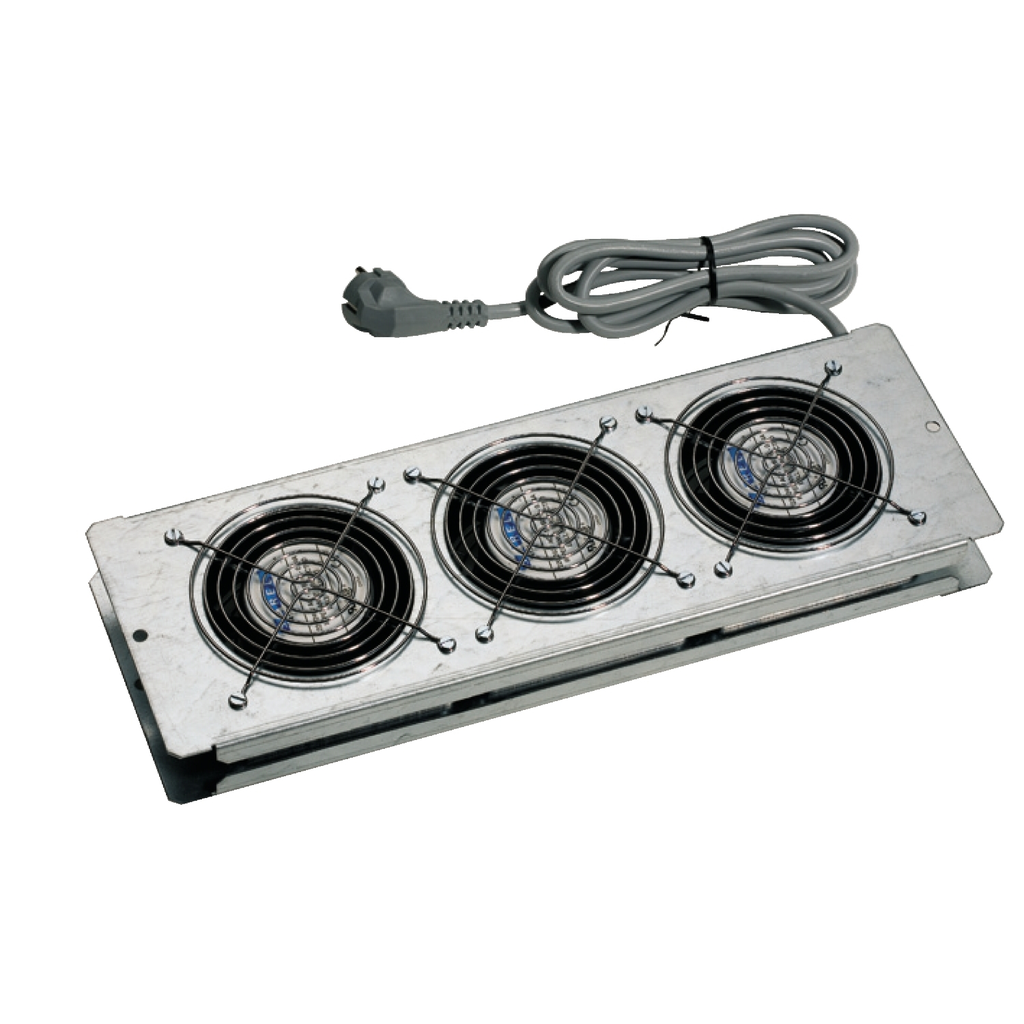

This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 3 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
QTY
  • Product Description
  • Specifications
This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 3 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : fixing elements, 1 plate, 1 2 m power cord
    • Cable Gland Type : with 3 fans, ventilated
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : electronic application
    • Energy Efficiency Optimized : False
    • Fixing Mode : by screws
    • Material : plate galvanised steel
    • Mounting Location : on outside of the roof
    • Noise Level : 34 dB
    • Package Weight Lbs : 3.780 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : fan
    • Quantity Per Set : set of 1
    • Range : Actassi
    • Range Of Product : Actassi
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Type2 : ventilation plate
    • Medium Desc : Actassi - ventilation plate with 3 cut-outs with fan
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1001003EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Air Flow : 170 m3/h
    • Environmental Disclosure : ENVPEP1001003EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : SF roof for Actassi plates
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1001003EN
  • General Attributes
    • Product Or Component Type : fan
    • Range Of Product : Actassi
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Width : 16.54 in
