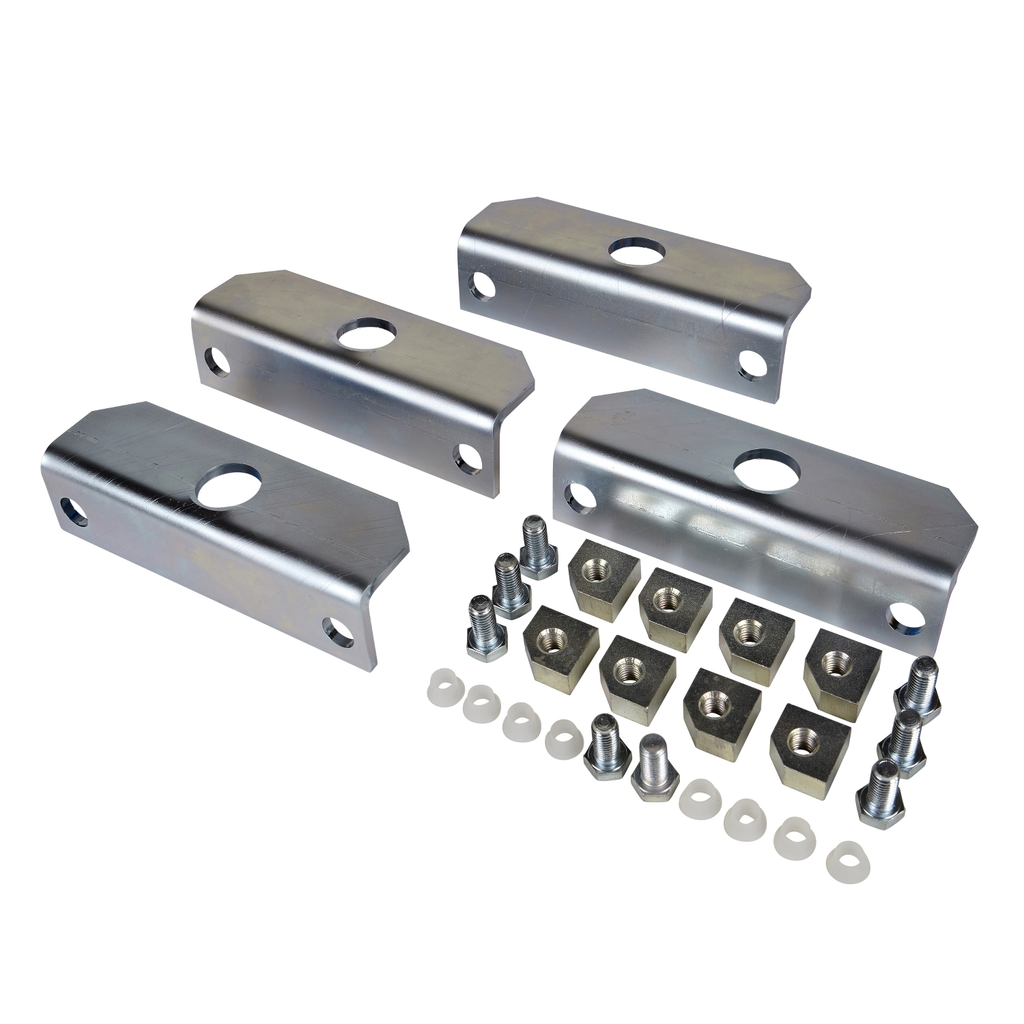

Set of lifting and transport brackets, for PanelSeT SFX enclosures. The brackets are made from treated steel. Maximum load is 2000kg when slinging at 60°. The kit is made of 4 brackets (M12 screws).

• Features
• Installation: They are fixed instead of the eyebolts on two suitable enclosures side-by-side
• Treated steel
• Maximum load: 1300 kg when slinging at 60°
• helping guarantee the rigidity of the enclosure when lifted

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.954791494, 1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 12 kg CO2 eq., 11.66020412
• Carbon Footprint Of The Installation Phase A5 : 1.099800606, 1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 22 kg CO2 eq., 21.55178759
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Device Composition : 4 bracket
• Energy Efficiency Optimized : False
• Fixing Mode : by screws M12
• Material : treated steel
• Mounting Location : enclosure top
• Mounting Support : directly in the axis of the uprights
• Package Weight Lbs : 5.584 kg
• Permanent Permissible Load : 2000 kg slinging at 60°
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : lifting bracket
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 35 kg CO2 eq.
• Accessory Separate Part Category2 : lifting accessory
• Medium Desc : 4 lifting brackets for Spacial SFX enclosure. Max. load 2000kg
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1109023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 35.2665838
• Environmental Disclosure : ENVPEP1109023EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• General Attributes
• Product Or Component Type : lifting bracket
