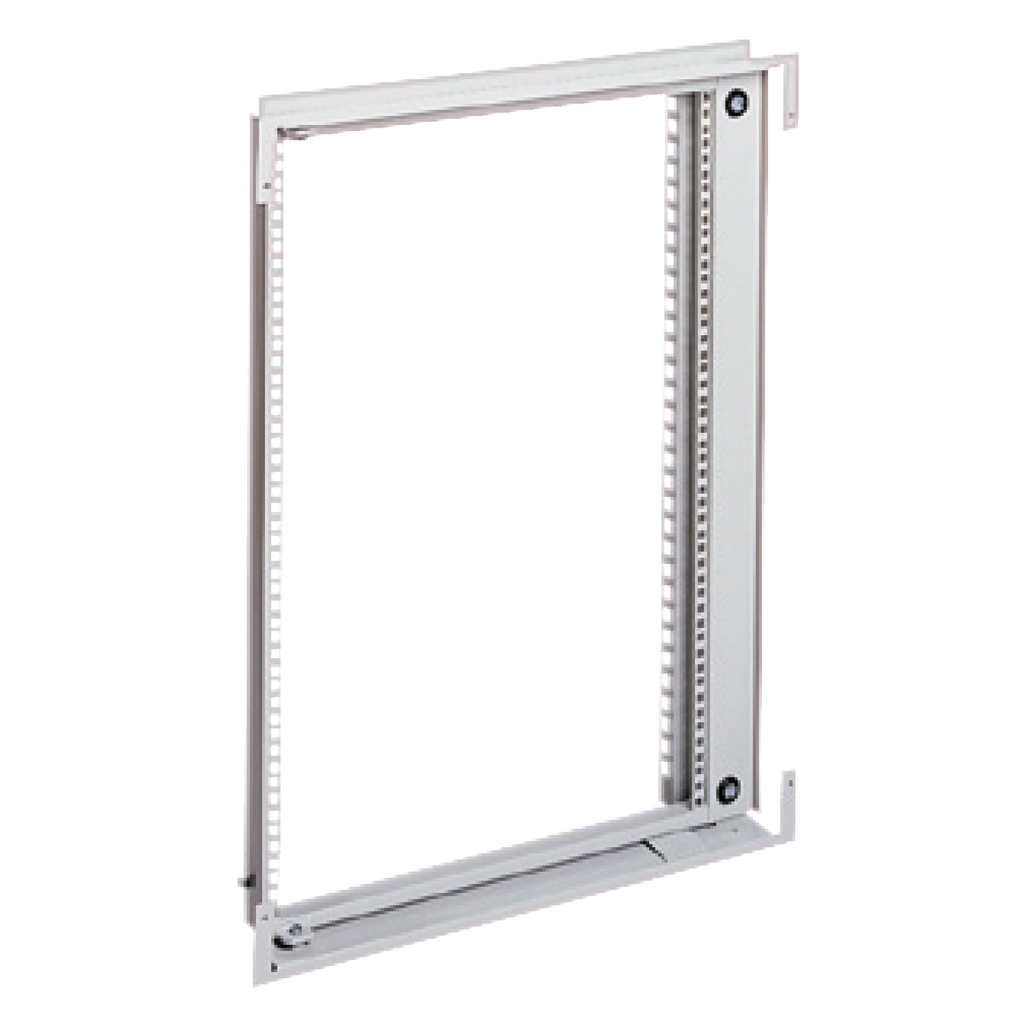

Swing chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM, PanelSeT CRN and PanelSeT CRNG enclosures. The nominal width is 600mm. The nominal height is 1000mm. The depth is 100mm. Supports mounting of 20 units. Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 1 19" swing chassis and 2 locks. The chassis is made from steel. Anti-corrosion protection is ensured by epoxy-polyester powder coating. Anti-corrosion protection is ensured by epoxy-polyester powder coating. Net weight is 8.86kg.

• Features
• 19" swing chassis opening to 120° with locking system by 3-mm double-bar insert.
• Material: Steel
• Finish: Epoxy polyester powder
• Color: RAL 7035 grey
• Maximum load: 3 kg per unit

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Application : electronic application, multi-purpose
• Device Composition : fixing elements, 1 19" swing chassis, 2 lock
• Enclosure Nominal Dimensions : - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 400 mm, - H: 1000 mm W: 600 mm D: 400 mm, - H: 1000 mm W: 600 mm D: 400 mm, - H: 1000 mm W: 600 mm D: 400 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 400 mm
• Carbon Footprint Of The Distribution Phase A4 : 17.589958976814778, 18 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 21 kg CO2 eq., 20.872867784615295
• Carbon Footprint Of The Installation Phase A5 : 1.7455710173166121, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 43 kg CO2 eq., 43.2598099365143
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element
• Lock Type : lock with 3 mm double bar insert
• Material : chassis steel
• Mounting Location : front of enclosure
• Package Weight Lbs : 8.860 kg
• Permanent Permissible Load : 3 kg per unit
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : 19" rack
• Rack Type : swing
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 83 kg CO2 eq.
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : 19" swing chassis 20U Spacial
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1001004EN
• Database Version : 2023-02
• Pep Verification Date : 2024-08-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : France, FR
• Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Enclosure Cubicle Description : wall-mounted enclosure
• Opening Of The 19 Racks2 : reversible 120 °
• Global Commercial Status : Commercialised
• Opening Of The 19 Racks5 : reversible 120 °
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 83.46820771526099
• Environmental Disclosure : ENVPEP1001004EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• Pep Verification Date : 2024-08-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : 19" rack
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 39.37 in
• Width : 23.62 in
• Depth : 100 mm
