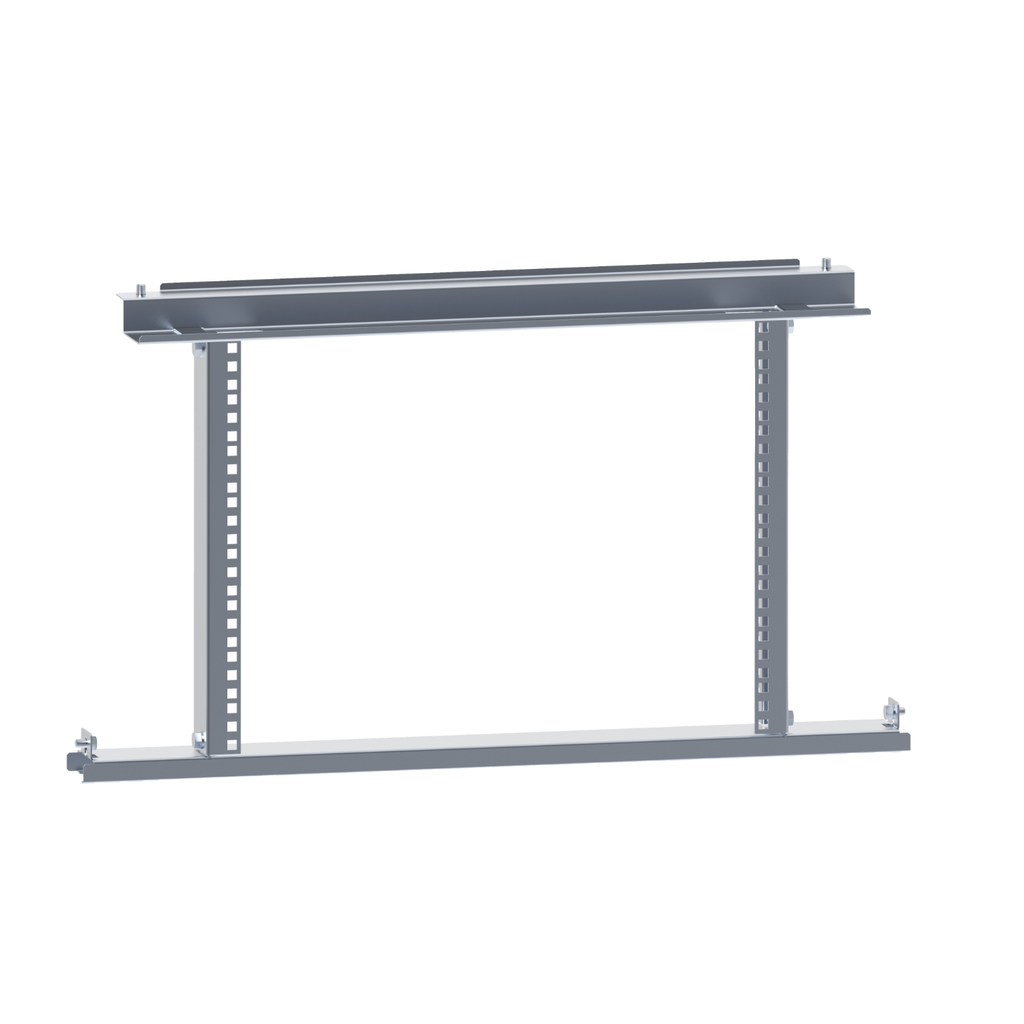

Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT PLA enclosures. The nominal height is 500mm. Supports mounting of 8 units. The kit supplied with fixing elements and 2 19" uprights. The strips are manufactured from 2mm grey sheet steel (RAL 7035). The product is be mounted on front of enclosure. Anti-corrosion protection is ensured by epoxy-polyester powder coating. The permanent permissible load is 3kg per unit. The permanent permissible load is 3kg per unit.

• Features
• Very sturdy 19" metal chassis, designed for installation in enclosures with a width of 750 and 1250 mm.
• These chassis can be used as partial mounting plates in enclosures with a height greater than the nominal height.
• Incompatible with the internal doors and the step slides.
• Fixed chassis made up of two uprights with fixings
• Material: Galvanized steel
• Finish: Epoxy polyester paint
• Color: RAL 7035 grey
• Maximum load: 3 kg per unit
• In enclosures with a width of 1250 mm, the chassis is installed in the 750-mm part with an intermediate support

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements, 2 19" uprights
• Enclosure Nominal Dimensions : -, -
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element
• Lock Type : lock 5 mm double bar
• Material : sheet steel
• Mounting Location : front of enclosure
• Package Weight Lbs : 3.512 kg
• Permanent Permissible Load : 3 kg per unit
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : 19" rack
• Quantity Per Set : set of 1
• Rack Type : fixed
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Thickness : 2 mm
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : 19" fixed chassis 8U forPLA enclosure H500xW750mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1109021EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1109021EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109021EN
• General Attributes
• Product Or Component Type : 19" rack
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 19.69 in
