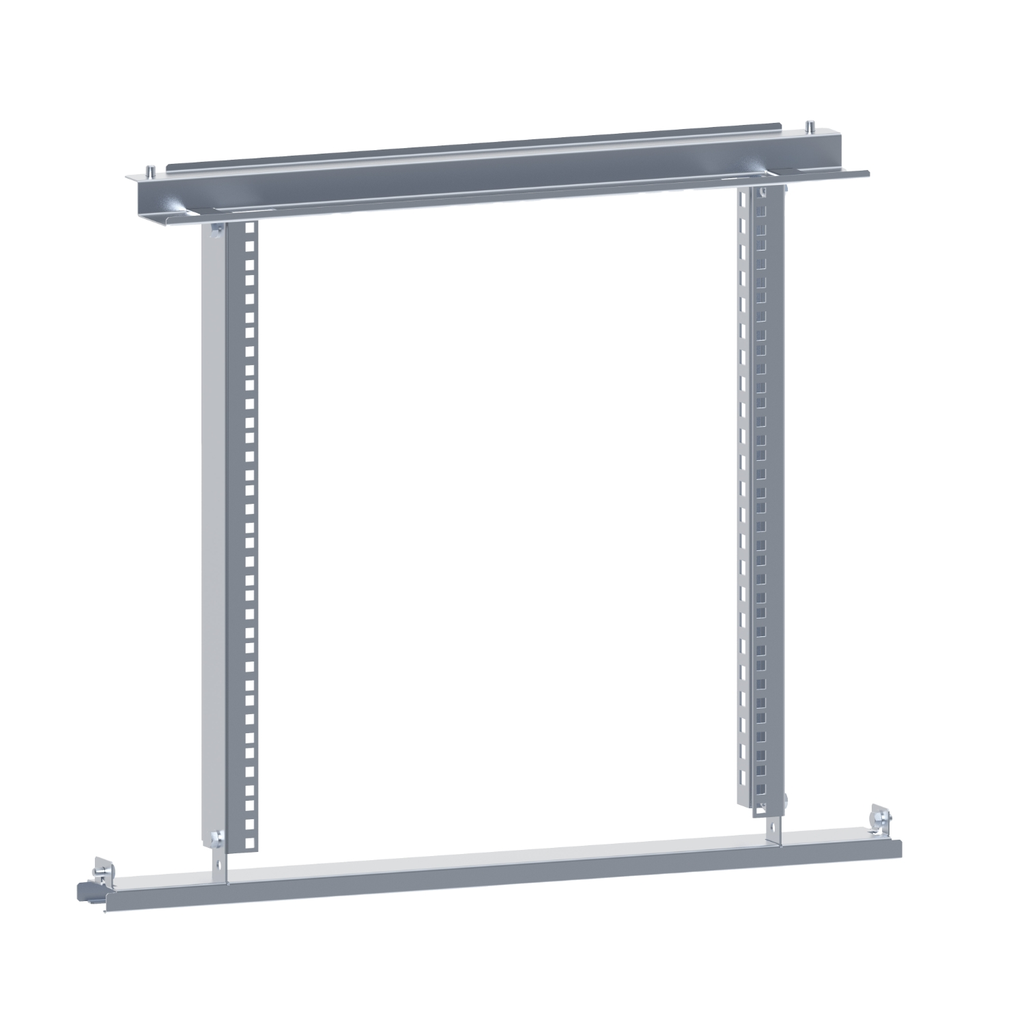

Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT PLA and PanelSeT PHD enclosures. The nominal height is 750mm. Supports mounting of 12 units. The kit supplied with fixing elements and 2 19" uprights. The strips are manufactured from 2mm grey sheet steel (RAL 7035). The product is be mounted on front of enclosure. Anti-corrosion protection is ensured by epoxy-polyester powder coating. The permanent permissible load is 3kg per unit. The permanent permissible load is 3kg per unit.

• Features
• Very sturdy 19" metal chassis, designed for installation in enclosures with a width of 750 and 1250 mm.
• These chassis can be used as partial mounting plates in enclosures with a height greater than the nominal height.
• Incompatible with the internal doors and the step slides.
• Fixed chassis made up of two uprights with fixings
• Material: Galvanized steel
• Finish: Epoxy polyester paint
• Color: RAL 7035 grey
• Maximum load: 3 kg per unit
• In enclosures with a width of 1250 mm, the chassis is installed in the 750-mm part with an intermediate support

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements, 2 19" uprights
• Enclosure Nominal Dimensions : -, -
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element
• Lock Type : lock 5 mm double bar
• Material : sheet steel
• Mounting Location : front of enclosure
• Package Weight Lbs : 3.986 kg
• Permanent Permissible Load : 3 kg per unit
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : 19" rack
• Quantity Per Set : set of 1
• Rack Type : fixed
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Thickness : 2 mm
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : 19" fixed chassis 12U forPLA enclosure H750xW750mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1109021EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1109021EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109021EN
• General Attributes
• Product Or Component Type : 19" rack
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 29.53 in
