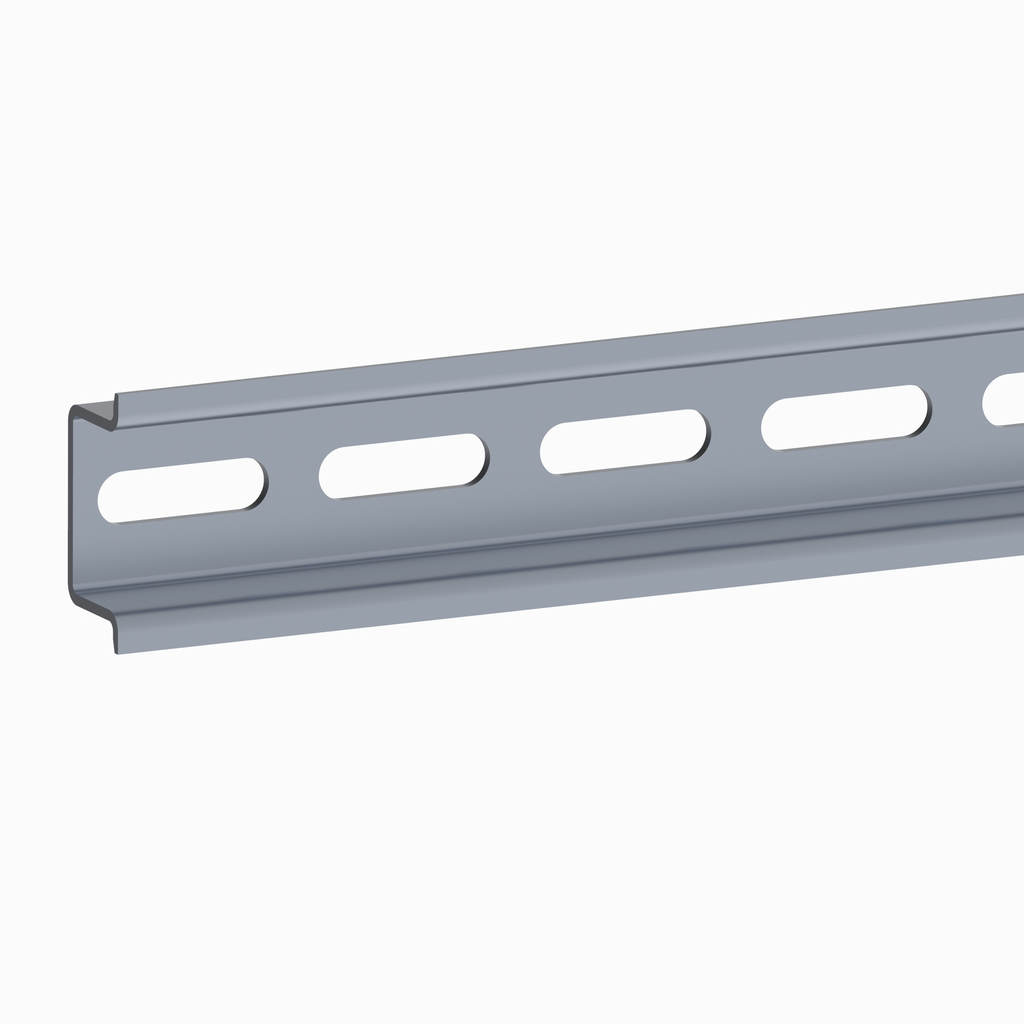

Symmetrical perforated DIN mounting rail type A. This mounting rail is compatible with Thalassa and Spacial ranges. It is made from galvanised steel and is perforated. The dimensions are (W) 35 mm x (H) 15 mm x (L) 2000 mm and the adjustement pitch is 25 mm. The thickness of the galvanised steel is 1.5 mm. The fixing is done by fixing element and with the structure of enclosure location.

• Features
• Made of galvanised steel, making it durable and resistant
• 25 mm cut out pitch to install accessories
• Compatible with PanelSet ranges
• Perforated rail

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Enclosure Nominal Dimensions : -, -
• Adjustment : pitch 25 mm, continuous adjustment
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-09
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Device Composition : 1 rail
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element - structure of enclosure
• Material : galvanised steel
• Package Weight Lbs : 1.258 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : rail
• Quantity Per Set : set of 10
• Range : PanelSeT
• Returnability : Yes
• Surface Finish : perforated
• Sustainable Packaging : No
• Thickness : 1.5 mm
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : One symmetric mounting rail perforated 35x15 L2000mm, Order by Multiples of 10 units
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP1001004EN
• Type Of Rail : symmetrical DIN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1001004EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• General Attributes
• Product Or Component Type : rail
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 0.59 in
• Width : 1.38 in
