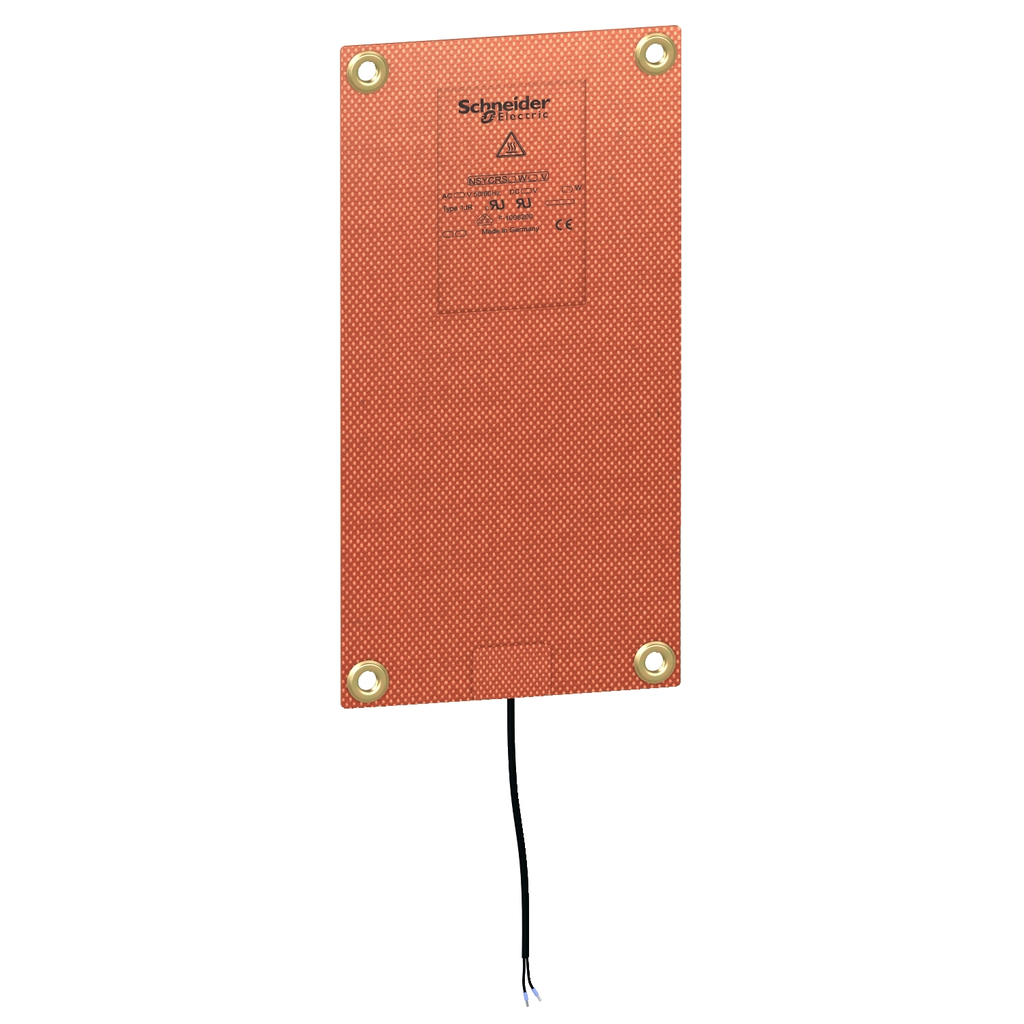

Climasys CR Ultra thin resistance heater. Low starting current 25 W. 240 V AC 50/60Hz. Vertical or horizontal operating position. Material: Silicone rubber. Cable length: 2 m. Fixing mode by 4 screws. 110 x 230 x 1.6 mm.

• Features
• Silicon reinforced with fiberglass
• Color: Red (heaters), black (cables)
• Certification: UL (cURus)

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Condition Of Use : heaters must be installed with a thermal controller, air sealed enclosure, electrical protection is needed
• Device Composition : 6 self-adhesive Velcro pads, 6 plastic spacers, 4 Telequick nuts, 4 clip-on nuts, fixing accessories
• Mounting Support : standard mounting plate, DIN rail, adhesive Velcro, Telequick mounting plate
• Operating Position : vertical, horizontal
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-24
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Electrical Connection : cable 2 m
• Energy Efficiency Optimized : False
• Fixing Mode : by 4 screws
• Material : silicone rubber
• Package Weight Lbs : 302.000 g
• Power Range : 25 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : ultra thin resistance heater
• Range : ClimaSys
• Returnability : Yes
• Sustainable Packaging : No
• Temperature Setting Range : -40-70 °C
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Medium Desc : Climasys Ultra thin resistance heater low starting current 20W 240V 130x250mm
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2103012EN
• Global Commercial Status : Commercialised
• Product Name : ClimaSys CR
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -60-70 °C
• Environmental Disclosure : ENVPEP2103012EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2103012EN
• General Attributes
• Product Or Component Type : ultra thin resistance heater
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 240 V AC 50/60 Hz
• Specifications
• Height : 4.33 in
• Width : 9.06 in
