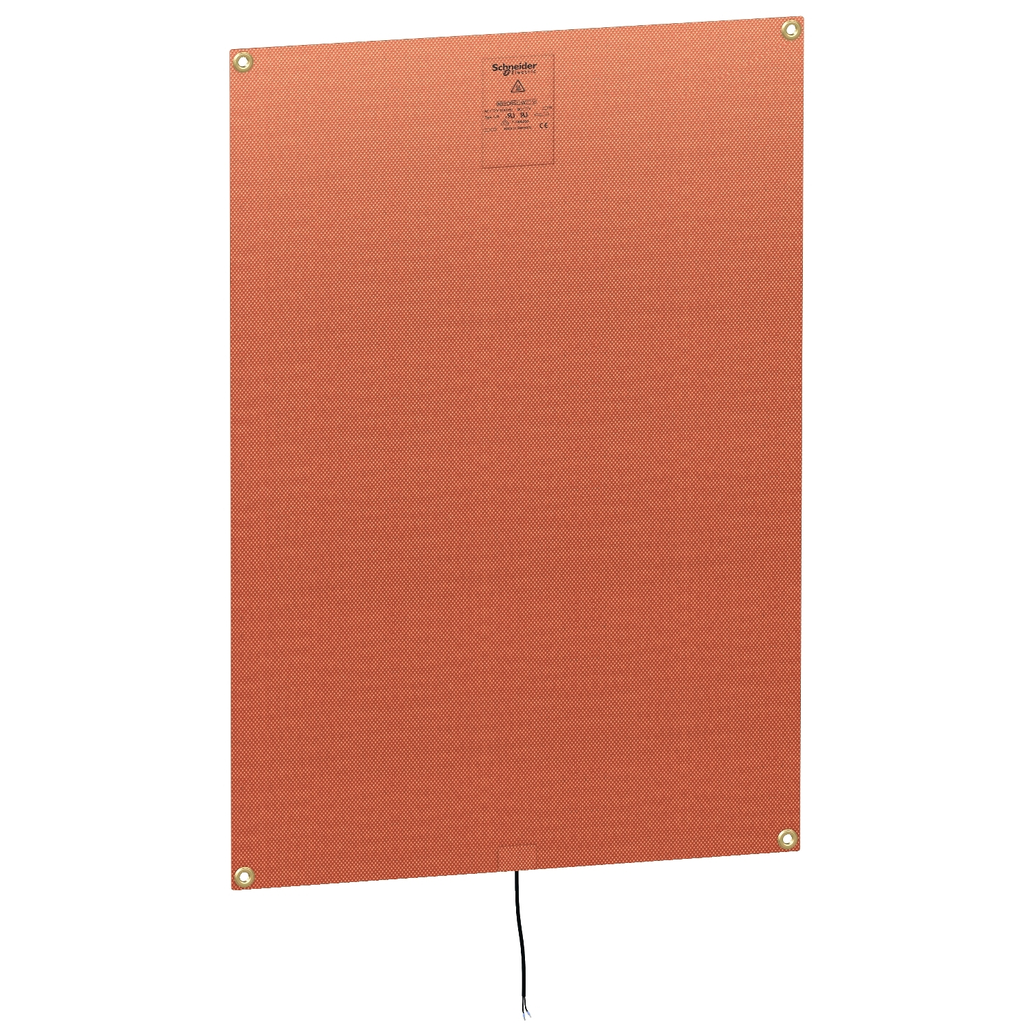

Ultra thin resistance heater 195W, 240 V AC 50/60 Hz for ClimaSys CR Thermal Management System. The product is made from silicone rubber. Fixing by 4 screws in horizontal and vertical operating position. The product width is 650mm, height is 380mm and depth is 1.6mm. The temperature setting range is -40-70 °C. The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure. The enclosure must be sealed to prevent the entry of air from the outside. An electrical protection device must be installed on the supply side of the unit. An electrical protection device must be installed on the supply side of the unit. Ambient air temperature for operation -60-70 °C.

• Features
• Silicon reinforced with fiberglass
• Color: Red (heaters), black (cables)
• Certification: UL (cURus)

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Condition Of Use : air sealed enclosure, heaters must be installed with a thermal controller, electrical protection is needed
• Device Composition : 6 self-adhesive Velcro pads, 6 plastic spacers, 4 Telequick nuts, 4 clip-on nuts, fixing accessories
• Mounting Support : adhesive Velcro, Telequick mounting plate, standard mounting plate, DIN rail
• Operating Position : horizontal, vertical
• Carbon Footprint Of The Distribution Phase A4 : 2.239449291868051, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 0.9875294390207687
• Carbon Footprint Of The Installation Phase A5 : 0.10677499093783296, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 12.019984193813873
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-24
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Electrical Connection : cable 2 m
• Energy Efficiency Optimized : False
• Fixing Mode : by 4 screws
• Material : silicone rubber
• Package Weight Lbs : 1.130 kg
• Power Range : 195 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : ultra thin resistance heater
• Range : ClimaSys
• Returnability : No
• Sustainable Packaging : No
• Temperature Setting Range : -40-70 °C
• Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Medium Desc : Climasys Ultra thin resistance heater low starting current 195W 240V 400x650mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2103011_V2
• Database Version : 2024-01
• Pep Verification Date : 2025-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : The resistance heaters prevent the formation of condensation and guarantee the ideal temperature for the correct operation of the electronic components in the enclosure during 10 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; China, CN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Product Name : ClimaSys CR
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 15.353737915640526
• Ambient Air Temperature For Operation : -60-70 °C
• Environmental Disclosure : ENVPEP2103011_V2
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2103011_V2
• Pep Verification Date : 2025-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : ultra thin resistance heater
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 240 V AC 50/60 Hz
• Specifications
• Height : 14.96 in
• Width : 25.59 in
