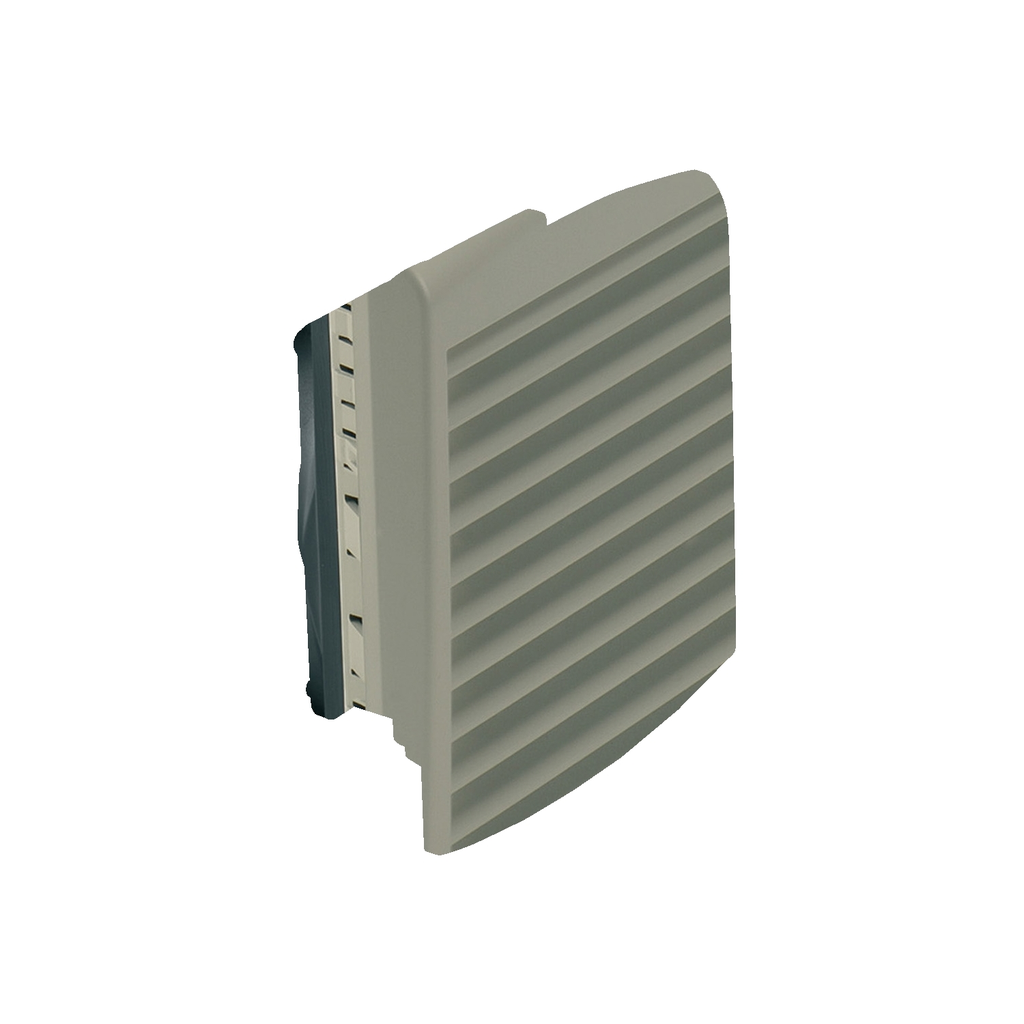

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA

• Power Range
• 15 W 60 Hz
• 17 W 50 Hz
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000296_3D-CAD&p_File_name=MCADUE0000296_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000296_3D-CAD&p_File_name=MCADUE0000296_2D-back.dwg
• https://downlo
• Maximum Pressure
• 50 Pa flow rate 0 m³/h
• Carbon Footprint Of The Installation Phase A5
• 0.10335446148745978
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.3870946932960901
• Condition Of Use
• flow rates depends on the work point, see ProClima software
• surrounding environment must be relatively clean
• filter must be cleaned and replaced regularly
• overfrequent filter replacement should be avoided
• outside temperature must be 5 °C lower th
• Material
• outlet grille injected thermoplastic (ASA PC)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 6 kg CO2 eq.
• 6.039571471057044
• Accessories
• NSYCAAPV
• NSYDPA44
• NSYCAP125LZF
• NSYCAP125LXF
• NSYCAF125L55
• NSYCAF190
• NSYCAF125T
• NSYCAG216X62M
• NSYCAG130X110LM
• NSYCAF130X110X
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 axial motor
• 2 protective grille on the front and rear surfaces
• 1 filter front of axial motor
• 1 filter fron
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Line Rated Current
• 0.121-0.121 A 50 Hz
• 0.097-0.097 A 60 Hz
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Input Voltage
• 230 V 50/60 Hz
• Air Flow
• free flow rate with standard filter: 85 m3/h at 50 Hz
• free flow rate with standard filter: 98 m3/h at 60 Hz
• free flow rate with standard filter: 9
• Carbon Footprint Of The Distribution Phase A4
• 1.843086585342732
• 2 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• outlet grille Gray RAL 7035)

• Conformance Attributes
• Product Certifications : CSA
• Complementary Attributes
• US Rated Supply Voltage : 175...253 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• HTML Description : ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 6.03957147105704
• Distribution Carbon Footprint : 1.84308658534273
• Installation Carbon Footprint : 0.10335446148746
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 1.38709469329609
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1107017EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bearing Type : ball
• Package Weight Lbs : 930.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : fan
• Range : ClimaSys
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 9 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 9.373107211183326
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP110717EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 930
• Functional Unit Description : "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 17
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 64
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.06874744072757492
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.05634069080699076
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0075825728692312366
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0003028571833582631
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.004521319867994667
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.033233912215647844
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : -0.026456189495523048
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.03779500811923565
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0049093135036330105
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.006429505120079591
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.02428335857425881
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 9.399320126306856
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 6.07712346745062
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 1.843086585342732
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.09844514798382678
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1.3806649255296766
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -3.78203959715976
• Climate Change Total Kg Co2 Eq Total Life Cycle : 9.373107211183326
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 6.039571471057044
• Climate Change Total Kg Co2 Eq Distribution A4 : 1.843086585342732
• Climate Change Total Kg Co2 Eq Installation A5 : 0.10335446148745978
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1.3870946932960901
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -3.757756238585501
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0005786669670775931
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0005785705834355295
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000015794820124
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000254278403434
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000009368290982789
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00046703814902552626
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 159.84535726370768
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 123.64440036652215
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 22.863418354232557
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.0251931539487509
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 12.31234538900423
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -63.747650375032485
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 183.1470818929017
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 155.21550604216648
• Ecotoxicity Fresh Water Ctue Distribution A4 : 14.955155857194063
• Ecotoxicity Fresh Water Ctue Installation A5 : 1.401114075679019
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 11.57530591786212
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -19.20426776407398
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000109167967207642
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000103823186595075
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000002087690907531
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000181893727696
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000003075195977339
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000083124862035909
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.010188130648365054
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0007867993147398449
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.004227348049131044
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.005173983284494165
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00003245953817945629
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00002743334807620568
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000021516274972589
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000237084866678247
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000244017868674225
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000128971985282307
• Hazardous Waste Disposed Of Kg Total Life Cycle : 38.52414259007017
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 38.40709531569456
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0015223905258519882
• Hazardous Waste Disposed Of Kg Installation A5 : 0.002579946908611309
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1129449369411496
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -36.819980698063745
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000022829698221726
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000021198238401415
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000002706386629
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000001169555625566
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000459197808116
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000042209647735189
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000022681083608375
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000021778983495324
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000326552070765
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.000000000305059145
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000545042127786
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000020279057698038
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.7442334331798578
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.7333016099973957
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.0002828938064433937
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.010648929376018636
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 5.852810280198047
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 5.674183131886443
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.004073963714220016
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.015811286398292036
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.15874189819909112
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -1.4582009852200521
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.011090216444308633
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.006528284442113808
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0034503154440464023
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00013172366503601677
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000979892893112407
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0023185025830034845
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.6232268686774309
• Materials For Recycling Kg Manufacturing A1 A3 : 0.07793610082865146
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.5452907678487795
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.1076634945151312
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.08818062391497597
• Net Use Of Fresh Water M3 Distribution A4 : 0.0021705368364895233
• Net Use Of Fresh Water M3 Installation A5 : 0.0001860378521518074
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.017126295911513902
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.03446744111655733
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 8.547015617044188
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 7.818653514086501
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.001870234527026827
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.04428006071123311
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.6822118077194281
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -5.211543687432291
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000248896287066386
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000083284611472621
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000162153236341546
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000134052112428
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000003324387139792
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000055652295978292
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.038062568950314846
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.022374087858807155
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.01247664223787725
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0002100448164664376
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.003001794037164006
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.009070501375433762
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.006018662834038781
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0056087622505444565
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00036533168161873817
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000547283139417563
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00003909607048141053
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0037975265568930034
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.11983449326043655
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.07027146404818009
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.03742565100715546
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0009163147526363699
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.011221063452464621
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.025569583682259547
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.895019672345219
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.895019672345219
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 167.5713113827233
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 130.57559635151875
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 22.8635678313724
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.159650041677136
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 12.972497158155031
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -66.89395402973051
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.7259174578669425
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.931159323847905
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00014947713984970917
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.13445688772838524
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6601517691508026
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.146303654698022
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.895019672345219
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.895019672345219
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 150.9503742525111
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 114.74941735532556
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 22.863418354232557
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.0251931539487509
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 12.31234538900423
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -63.747650375032485
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.0431674838087637
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.0431674838087637
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.4303489665338636
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.6827499740581775
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.88799184003914
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00014947713984970917
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.13445688772838524
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.6601517691508026
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.7159546881641576
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 4.196737896212976
• Water Use M3 Eq Manufacturing A1 A3 : 3.7831208500416302
• Water Use M3 Eq Distribution A4 : 0.09322455712722502
• Water Use M3 Eq Installation A5 : 0.007987978544854984
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 0.31240451049926593
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -1.4803174290163574
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : fan
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10178363&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 9.37310721118333
• Circularity Profile : ENVEOLI1107017EN
• Environmental Disclosure : ENVPEP110717EN
• EU ROHS Directive : Compliant with Exemptions
• IP Degree Of Protection : IP54
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP110717EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : China
• Height : 6.69 in
• Width : 5.91 in
• Depth : 0 in
