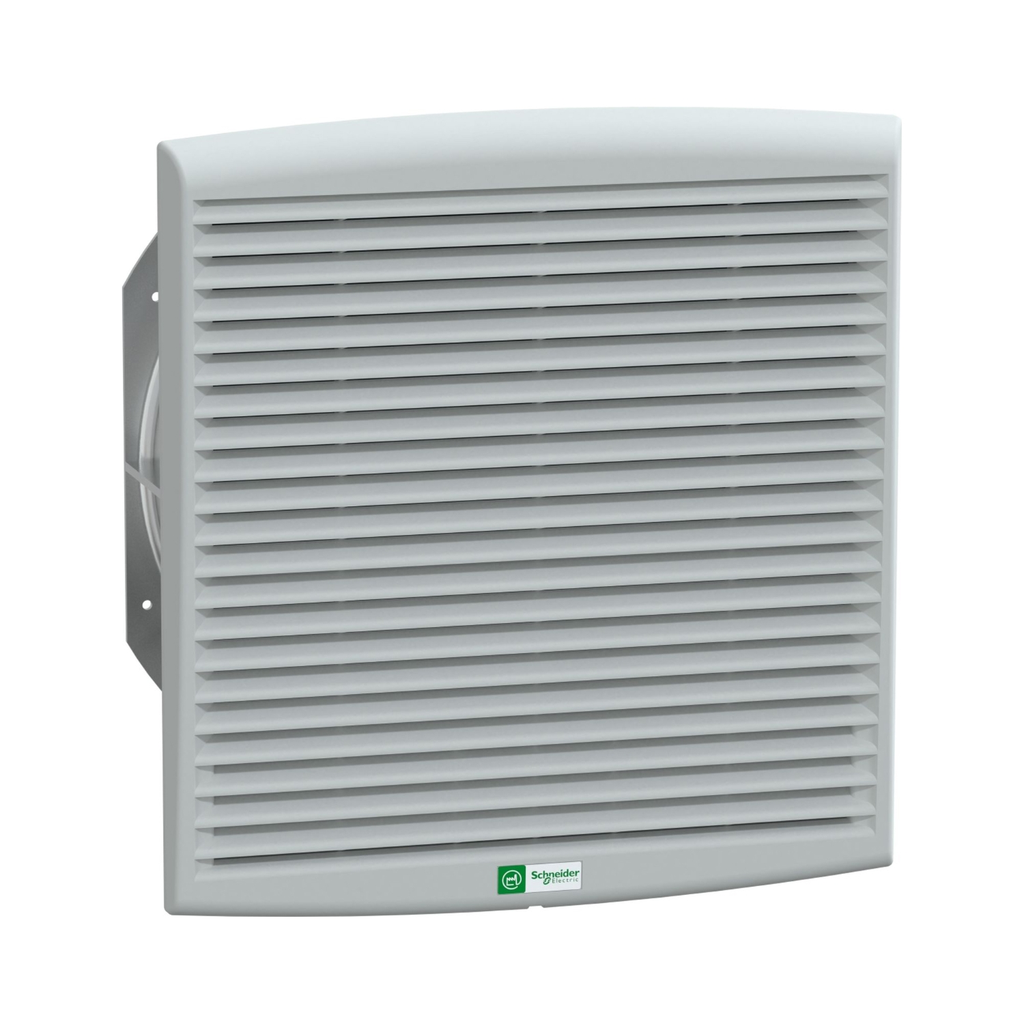

ClimaSys forced vent. IP54, 850m3/h, 230V, with outlet grille and filter G2

FAN WITH FILTER VF850

SQDNSYCVF850M230PF NSYCVF850M230PF 3606480151347
630.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-ClimaSys forced vent. IP54, 850m3/h, 230V, with outlet grille and filter G2-1
  • Country of Origin: France
  • Height: 13.23 in
  • Input Voltage: 230 V
  • Warranty Length: 18 mth
  • Width: 12.44 in
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 150W 50 Hz, 195W 60 Hz. Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
QTY
  • Product Description
  • Features
  • Specifications
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 150W 50 Hz, 195W 60 Hz. Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
  • Features
    • Reliable and efficient ventilation fan for optimal cooling.
    • Injected thermoplastic (ASA PC) construction for durability.
    • Ball bearing type with a maximum pressure of 170 Pa.
    • Power range of 150 W 50 Hz and 195 W 60 Hz.
    • Free flow rate of 838 m3/h at 50 Hz and 803 m3/h at 60 Hz.
    • Anti-insect filter included for added convenience.
    • Suitable for ambient air temperatures ranging from -15 to 60°C.
    • Noise level of 75-76 dB for quiet operation.
  • Physical Attributes
    • Color : outlet grille Gray RAL 7035)
  • Complementary Attributes
    • Line Rated Current : 0.65-0.65 A 50 Hz, 0.85-0.85 A 60 Hz
    • Maximum Pressure : 170 Pa flow rate 0 m³/h
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Condition Of Use : outside temperature must be 5 °C lower than inside temperature, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean
    • Device Composition : 1 axial motor, 2 protective grille on the front and rear surfaces, 1 filter front of axial motor, 1 outlet grille front, 1 cut-out template
    • Power Range : 150 W 50 Hz, 195 W 60 Hz
    • Carbon Footprint Of The Distribution Phase A4 : 8.69223415410024, 9 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 6.541717553544786
    • Carbon Footprint Of The Installation Phase A5 : 0.48743297643440714, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 28 kg CO2 eq., 28.483398357049673
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1107017EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Cut Out Dimensions : 291 x 291 mm
    • Energy Efficiency Optimized : False
    • Material : outlet grille injected thermoplastic (ASA PC)
    • Noise Level : 75-76 dB
    • Package Weight Lbs : 4.386 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : fan
    • Range : ClimaSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 44 kg CO2 eq.
    • Type Of Ventilation Filter : standard
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Us Rated Supply Voltage2 : 207...244 V
    • Connections Terminals : terminal block
    • Medium Desc : ClimaSys forced vent. IP54, 850m3/h, 230V, with outlet grille and filter G2
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP110717EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Bearing Type : ball
    • Global Commercial Status : Commercialised
    • Product Name : ClimaSys CV
    • Us Rated Supply Voltage5 : 207...244 V
  • Environment Attributes Main
    • Take Back : No, Nej
    • Air Flow : free flow rate with standard filter: 838 m3/h at 50 Hz, free flow rate with standard filter: 803 m3/h at 60 Hz
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 44.204783041129105
    • Ambient Air Temperature For Operation : -15-60 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI1107017EN
    • Environmental Disclosure : ENVPEP110717EN
    • IP Degree Of Protection : IP54
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP110717EN
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0008-ed3-EN-2023 10 19
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : fan
  • Surge Protection And Filtering Attributes
    • Type Of Ventilation Filter : standard
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Voltage : 230 V 50/60 Hz
  • Specifications
    • Height : 13.23 in
    • Width : 12.44 in
    • Country of Origin : France
