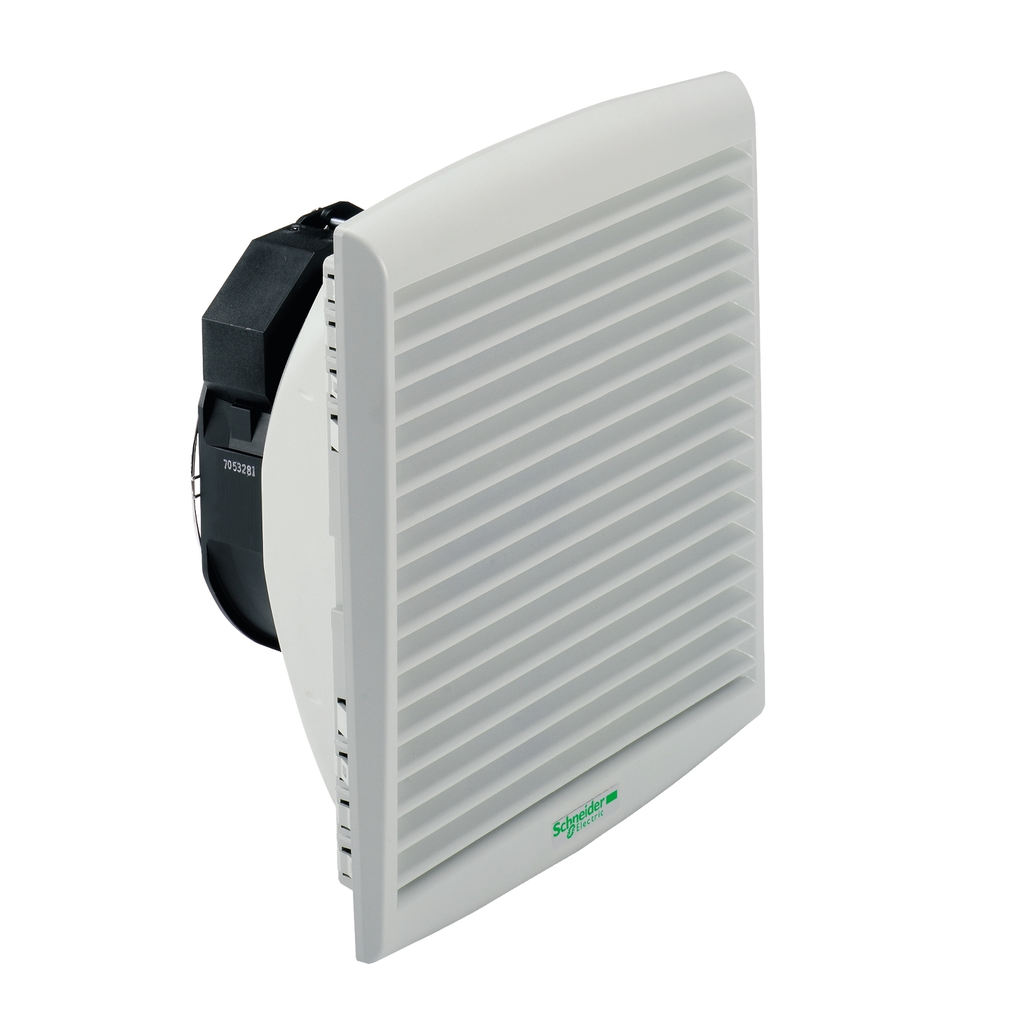

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 14.3 W 50 Hz, 16.3 W 60 Hz. Free flow rate with standard filter of 156 m3/h at 50 Hz and 193 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplast

• Power Range
• 16.3 W 50 Hz
• 14.3 W 60 Hz
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000285_3D-CAD&p_File_name=MCADUE0000285_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000285_3D-CAD&p_File_name=MCADUE0000285_2D-back.dwg
• https://downlo
• Maximum Pressure
• 50 Pa flow rate 0 m³/h
• Carbon Footprint Of The Installation Phase A5
• 0.15981044690211524
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2 kg CO2 eq.
• 2.1447765257632017
• Condition Of Use
• overfrequent filter replacement should be avoided
• filter must be cleaned and replaced regularly
• flow rates depends on the work point, see ProClima software
• outside temperature must be 5 °C lower than inside temperature
• surrounding environment mus
• Material
• outlet grille injected thermoplastic (ASA PC)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 9 kg CO2 eq.
• 9.338606210086054
• Accessories
• NSYCAAPV
• NSYDPA3
• NSYCAP223LZF
• NSYCAP223LXF
• NSYCAF223L55
• NSYCAF190
• NSYCAF125T
• NSYCAG216X62M
• NSYCAG130X110LM
• NSYCAF130X110X
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Device Composition
• 1 axial motor
• 2 protective grille on the front and rear surfaces
• 1 filter front of axial motor
• 1 filter fron
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Line Rated Current
• 0.12-0.12 A 50 Hz
• 0.94-0.94 A 60 Hz
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SI
• Input Voltage
• 230 V 50/60 Hz
• Air Flow
• free flow rate with standard filter: 165 m3/h at 50 Hz
• free flow rate with standard filter: 193 m3/h at 60 Hz
• free flow rate with standard filte
• Carbon Footprint Of The Distribution Phase A4
• 2.8498478599170416
• 3 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• outlet grille Gray RAL 7035)

• Conformance Attributes
• Product Certifications : CSA
• Complementary Attributes
• US Rated Supply Voltage : 175...253 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• HTML Description : ClimaSys forced ventRated supply voltage : 175...253 VInput voltage : 2
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 9.33860621008605
• Distribution Carbon Footprint : 2.84984785991704
• Installation Carbon Footprint : 0.159810446902115
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 2.1447765257632
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1107017EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1916
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bearing Type : ball
• Package Weight Lbs : 1.438 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : fan
• Range : ClimaSys
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 14.493041042668413
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP110717EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 1438
• Functional Unit Description : "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 17
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 64
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.10629980620027177
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.08711603589295991
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.011724451382746795
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0004682888491066477
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.006991030075458421
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.05138749007107699
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : -0.04090752741350767
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.05844002330694716
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.007590960019595989
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.009941535873843497
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.03754781680621954
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 14.533572410354042
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 9.396670479778487
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 2.8498478599170416
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.15221948688251927
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 2.1348345837759948
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -5.847927893242726
• Climate Change Total Kg Co2 Eq Total Life Cycle : 14.493041042668413
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 9.338606210086054
• Climate Change Total Kg Co2 Eq Distribution A4 : 2.8498478599170416
• Climate Change Total Kg Co2 Eq Installation A5 : 0.15981044690211524
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 2.1447765257632017
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -5.810380076436506
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0008947560200619127
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0008946069881508511
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000024422528321
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000393174563589
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000014485594014247
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0007221514605362439
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 247.15873520990502
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 191.1834921796332
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 35.352253326221955
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 1.5851911348153804
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 19.0377985692345
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -98.56894756913627
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 283.1887137225727
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 239.99988998778002
• Ecotoxicity Fresh Water Ctue Distribution A4 : 23.12420873402695
• Ecotoxicity Fresh Water Ctue Installation A5 : 2.166453807340247
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 17.89816119342552
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -29.694340908320843
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000168799501983429
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000160535206799697
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000003228064005408
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000281250731642
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000004754980446681
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000128530700653374
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.015753260077794567
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0012165778651568786
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0065364801017746684
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.008000202110863022
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00005019012462586898
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00004241844573503631
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000033269250979121
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000366589288476687
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000377309349627458
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00001994211987483413
• Hazardous Waste Disposed Of Kg Total Life Cycle : 59.56743768228056
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 59.386454907493324
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0023539758883603865
• Hazardous Waste Disposed Of Kg Installation A5 : 0.003989208230734476
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.17463959066814316
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -56.93240026216739
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000035300114024561
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000032777491205628
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000004184713949
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000001808409666197
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000710028438786
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000065266100476561
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000035070320676175
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000033675460501371
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.0000000050492675028
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000004716936027
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000842764064254
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000031356220397612
• Impacts Related To Land Use Soil Quality Total Life Cycle : 1.1507609429168124
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 1.1338577582540377
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.00043742074587698945
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.016465763916897632
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 9.049829228951388
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 8.773629401777104
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.006299311635535897
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.024447989076068762
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.2454525264626807
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -2.254723673920898
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.017148098114963244
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.010094272072859846
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0053350038801491684
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0002036759465825722
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0015151462153716573
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.003584953456300012
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.9636561689872535
• Materials For Recycling Kg Manufacturing A1 A3 : 0.12050764837806538
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.8431485206091881
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.1664732313040416
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.13634810450509188
• Net Use Of Fresh Water M3 Distribution A4 : 0.0033561634095397143
• Net Use Of Fresh Water M3 Installation A5 : 0.00028765852838096674
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.026481304861029027
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.053294817554418755
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 13.215708018612416
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 12.089487906727301
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0028918249998543845
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.06846744871263787
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.0548608381726212
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -8.058279379061974
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000384852538496197
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000128777711072719
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000250727262214133
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000207276277066
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000514028893228
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000086051614641703
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.058853735645755655
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.034595632624693215
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.01929184036351343
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0003247789742782121
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.004641483683270798
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.014025140836423389
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.009306276511126633
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.008672473243314978
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0005648892023309092
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000846229198368232
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00006045177349706273
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.005871874396572193
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.18529247452527714
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.10865630677557309
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0578689098368705
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.001416839370205484
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.017350418542628095
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0395366250914938
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.75380461164777
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.75380461164777
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 259.1048879229636
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 201.90076081019782
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 35.35248445324034
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 1.7930932902491632
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 20.058549369276275
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -103.43387730618547
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.946096026250176
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 10.717211943756224
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00023112701839127074
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2079021554337828
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.0207508000417789
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -4.8649297370492
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13.75380461164777
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.75380461164777
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 233.40498728506557
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 177.42974425479375
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 35.352253326221955
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 1.5851911348153804
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 19.0377985692345
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -98.56894756913627
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.1592202599107555
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.1592202599107555
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.211657864382469
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.78687576633942
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.557991683845467
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00023112701839127074
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.2079021554337828
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.0207508000417789
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.65327187266673
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 6.489149564251892
• Water Use M3 Eq Manufacturing A1 A3 : 5.849599765978349
• Water Use M3 Eq Distribution A4 : 0.14414721843973075
• Water Use M3 Eq Installation A5 : 0.012351304459678997
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 0.48305127537413384
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -2.2889209278769056
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : fan
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10178367&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 14.4930410426684
• Circularity Profile : ENVEOLI1107017EN
• Environmental Disclosure : ENVPEP110717EN
• EU ROHS Directive : Compliant with Exemptions
• IP Degree Of Protection : IP54
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP110717EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0008-ed3-EN-2023 10 19
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 10.55 in
• Width : 9.76 in
• Depth : 0 in
