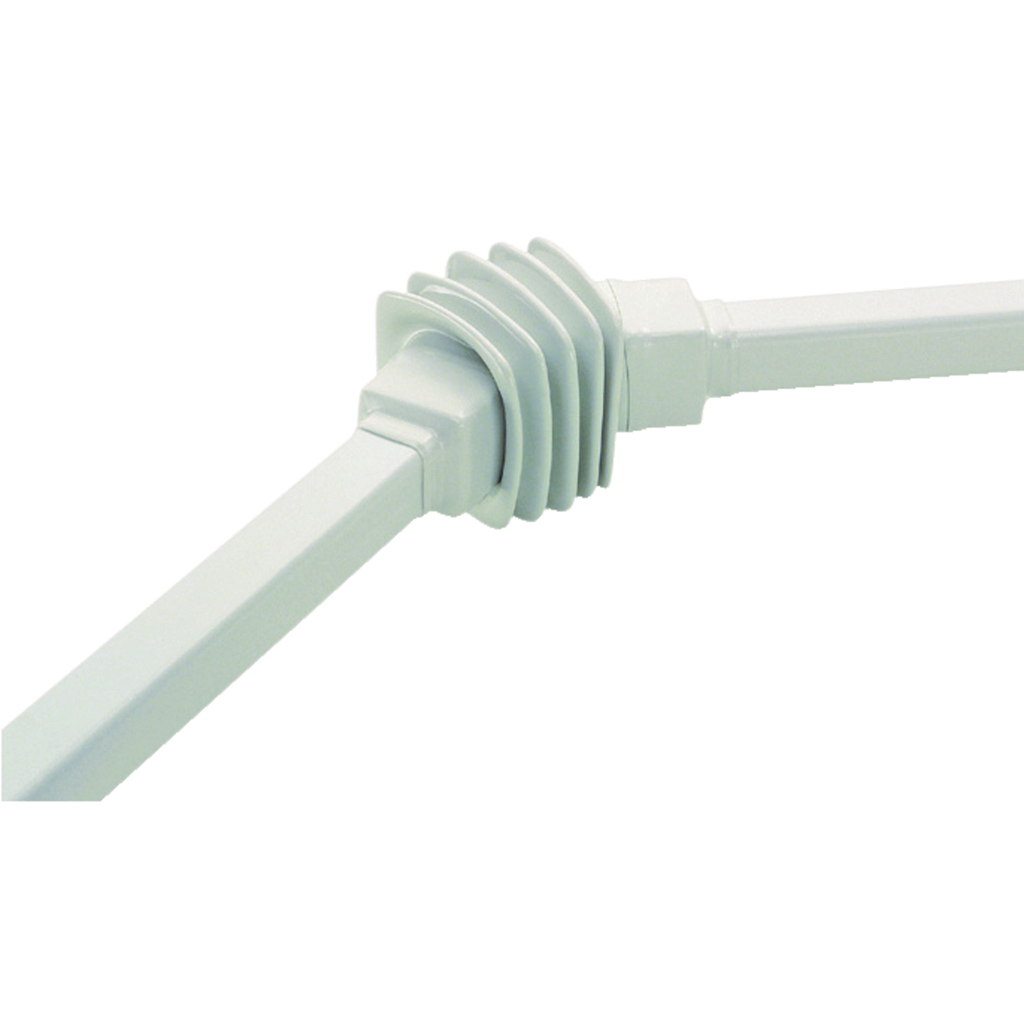

Spacial S3CM HMI articulated tube joint. 147 x 236 mm. Multi-purpose tube adaptor. Mounting between 2 horizontal tubes. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.25 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements, 1 linking and rotating bracket, 1 bellow
• Enclosure Nominal Dimensions : -, -
• Mounting Support : for 50 mm square tube, option of passing cables through the inside
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-11
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element M12 - horizontal tube
• Material : moulded steel
• Mounting Location : between 2 horizontal tubes
• Operating Angle : 170 °
• Package Weight Lbs : 4.656 kg
• Permanent Permissible Load : 4.25 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : tube adaptor
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Accessory Separate Part Category2 : cable management accessory
• Medium Desc : Articulated tube joint, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1001004EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1001004EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• General Attributes
• Product Or Component Type : tube adaptor
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 236 mm
