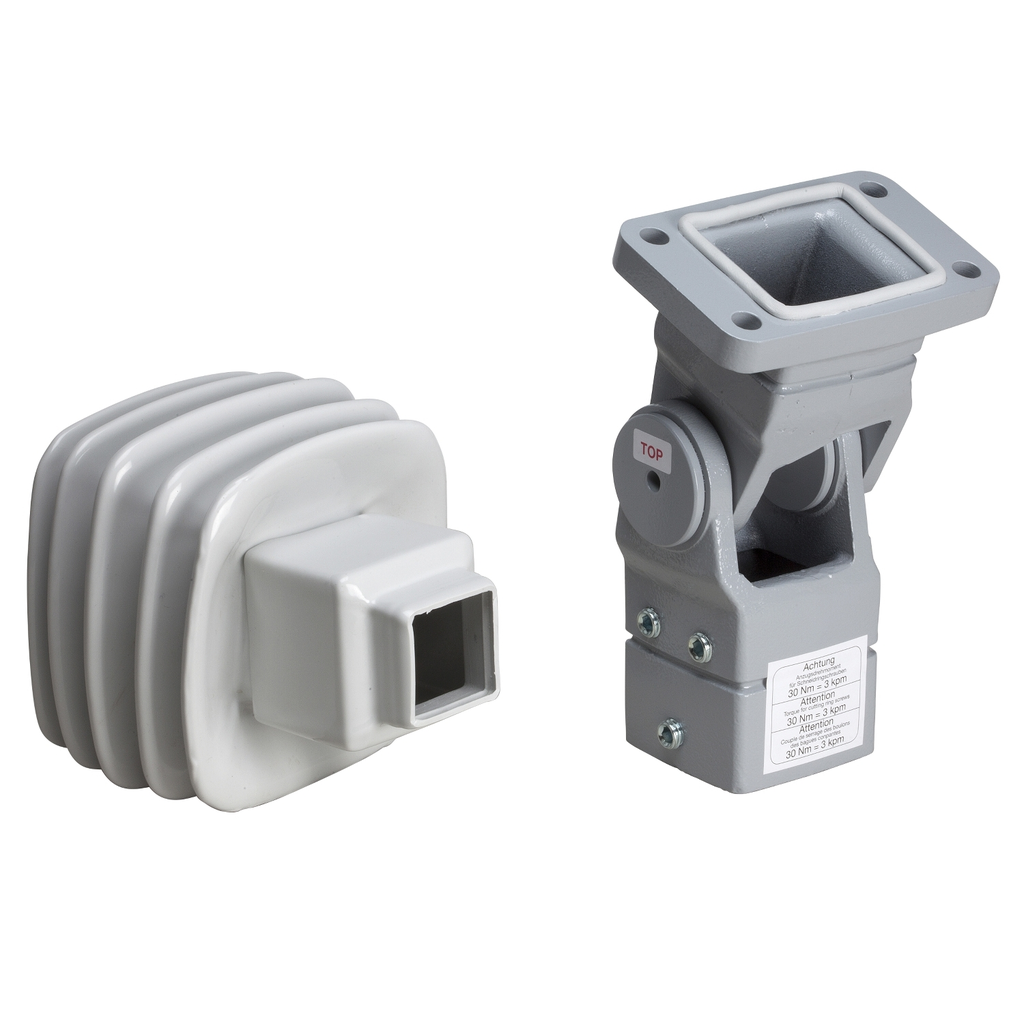

Spacial S3CM HMI articulated fixing. 147 x 210 mm. Mounting between tube and support. By screw (M12) horz tube, and by 4 screws (M11) on support. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.35 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.

• Prop 65
• No CA Prop 65 warning needed

• Physical Attributes
• Color : bracket Gray RAL 7040)bellow Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements1 bellow, 1 fixing and rotating bracket
• Enclosure Nominal Dimensions : -, -
• Fixing Mode : by fixing element M12 - horizontal tube, by 4 screws M11 - on support
• Mounting Support : option of passing cables through the inside, for 50 mm square tube
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-15
• Return Indicator : N
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Material : moulded steel
• Mounting Location : between tube and support
• Operating Angle : 170 °
• Permanent Permissible Load : 4.35 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : fixing on support
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : epoxy-polyester powder
• Sustainable Packaging : No
• Height Nominal : 148 mm
• Height Useful : 148 mm
• Width Nominal : 148 mm
• Width Real : 148 mm
• Accessory / Separate Part Category : mounting accessory
• Nbr. Of Units In Pkg. : 1
• Customs Code : 7326908688
• Warranty In Months : 18
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1001004EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1001004EN
• General Attributes
• Product Or Component Type : fixing on support
• ETIM
• ETIM 8 : EC002620
• ETIM 9 : EC002620
• ETIM 10 : EC002620
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
• Height : 5.83 in
• Width : 5.83 in
• Depth : 210 mm
