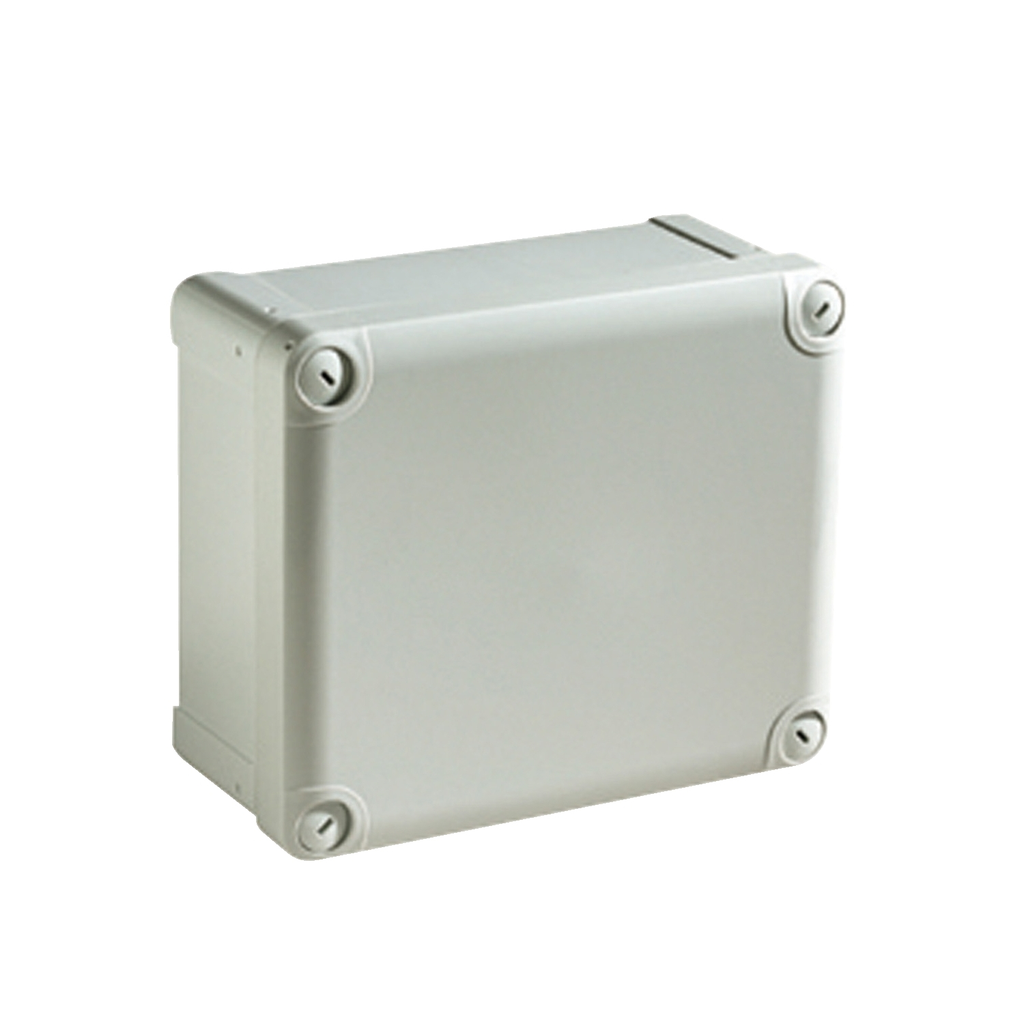

ABS industrial box, PanelSeT TBS, 194x107x241mm, int. 175x100x225mm, high plain cover, IP66, IK07, RAL 7035

INDUSTRIAL BOXES IBS2419/10

SQDNSYTBS241910H NSYTBS241910H 3606480165344
24.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-ABS industrial box, PanelSeT TBS, 194x107x241mm, int. 175x100x225mm, high plain cover, IP66, IK07, RAL 7035-1
  • Body Type: One Piece Moulded
  • Country of Origin: Hungary
  • Depth: 4.21 in
  • Height: 9.49 in
  • Material: 45 %
  • Warranty Length: 18 mth
  • Width: 7.64 in
ABS industrial box for Thalassa TBS. Multi purpose. 241 x 194 x 107 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.
QTY
  • Product Description
  • Features
  • Specifications
ABS industrial box for Thalassa TBS. Multi purpose. 241 x 194 x 107 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.
  • Carbon Footprint Of The Installation Phase A5
    • 0.16273199017531473
    • 0.2 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 kg CO2 eq.
    • 1.3865564390953935
  • Ip Degree Of Protection
    • IP66 conforming to NEMA 4.4X
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 3 kg CO2 eq.
    • 2.5495033327183383
  • Removable Parts
    • cover by captive screws
  • Lock Type
    • captive screw flat outside sealed area
  • Accessories
    • NSYAMPM2419TB
    • 13934
    • NSYCAG12LPH2
    • NSYAEDS20TB
    • NSYAEDH40TB
    • NSYAEFTB
    • NSYECPC15
    • IMT36179
    • NSYCGSP16
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 body
    • 1 cover
    • 4 cover screw
  • Fire Resistance
    • 650 °C IEC 60695-2-11
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 1.381784587794931
    • 1 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Physical Attributes
    • Internal Depth : 100 mm
    • Internal Height : 225 mm
    • Internal Width : 175 mm
  • Conformance Attributes
    • Product Certifications : TÜV
    • Standards : IEC 62208
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Manufacturing Carbon Footprint : 2.54950333271834
    • Distribution Carbon Footprint : 1.38178458779493
    • Installation Carbon Footprint : 0.162731990175315
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 1.38655643909539
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1904
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Average Percentage Of Recycled Plastic Content : 45 %
    • Body Type : one piece moulded
    • Cover Fixing : plastic screws
    • Device Application : multi-purpose
    • Electrical Insulation Class : class II
    • Enclosure Mounting : wall mounted
    • Energy Efficiency Optimized : False
    • Material : ABS with 45% of post-industrial recycled content
    • Package Weight Lbs : 696.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : industrial box
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
    • Type Of Front Cover : high plain cover
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 5.480576349783978
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : industrial box
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10177194&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 5.48057634978398
    • Ambient Air Temperature For Operation : -25-60 °C
    • Ambient Air Temperature For Storage : -15-40 °C
    • Environmental Disclosure : ENVPEP2312020EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Hungary
    • Height : 9.49 in
    • Width : 7.64 in
    • Depth : 4.21 in
