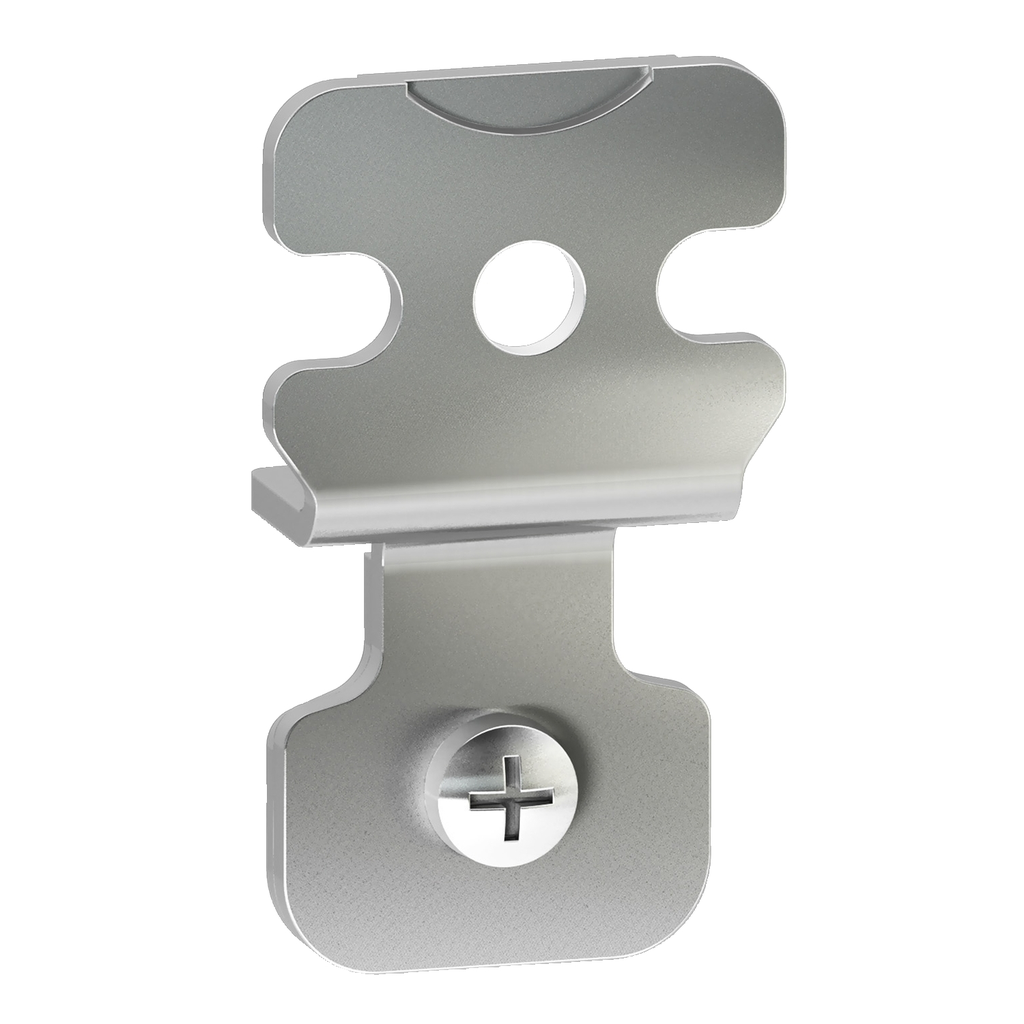

4 wall fixing brackets in stainless steel AISI 316L for PanelSeT S3X

SET 4 WALLFIXING LUGS MURAL PF

SQDNSYPFC2X NSYPFC2X 3606480154850
32.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-4 wall fixing brackets in stainless steel AISI 316L for PanelSeT S3X-1
  • Material: Stainless Steel
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : fixing screws, 4 lug, 4 pre-mounted sealing gasket
    • Enclosure Nominal Dimensions : -, -
    • Fixing Mode : screwed M8, screwed M6
    • Material : stainless steel 316L
    • Permanent Permissible Load : 250 kg, 551 lb(US)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-18
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Application : multi-purpose
    • Energy Efficiency Optimized : False
    • Mounting Location : rear of enclosure
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : wall fixing support
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Accessory Separate Part Category : fixing accessory
    • Warranty In Months : 18
    • Pep Code : ENVPEP2109018EN
    • Offer Owner Code : 190789
    • Pn : 1
    • Height Nominal : real: 74 mm
    • Width Nominal : real: 42 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2109018EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2109018EN
  • General Attributes
    • Product Or Component Type : wall fixing support
  • ETIM
    • ETIM 8 : EC002625
    • ETIM 9 : EC002625
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, Spain, France, United States
