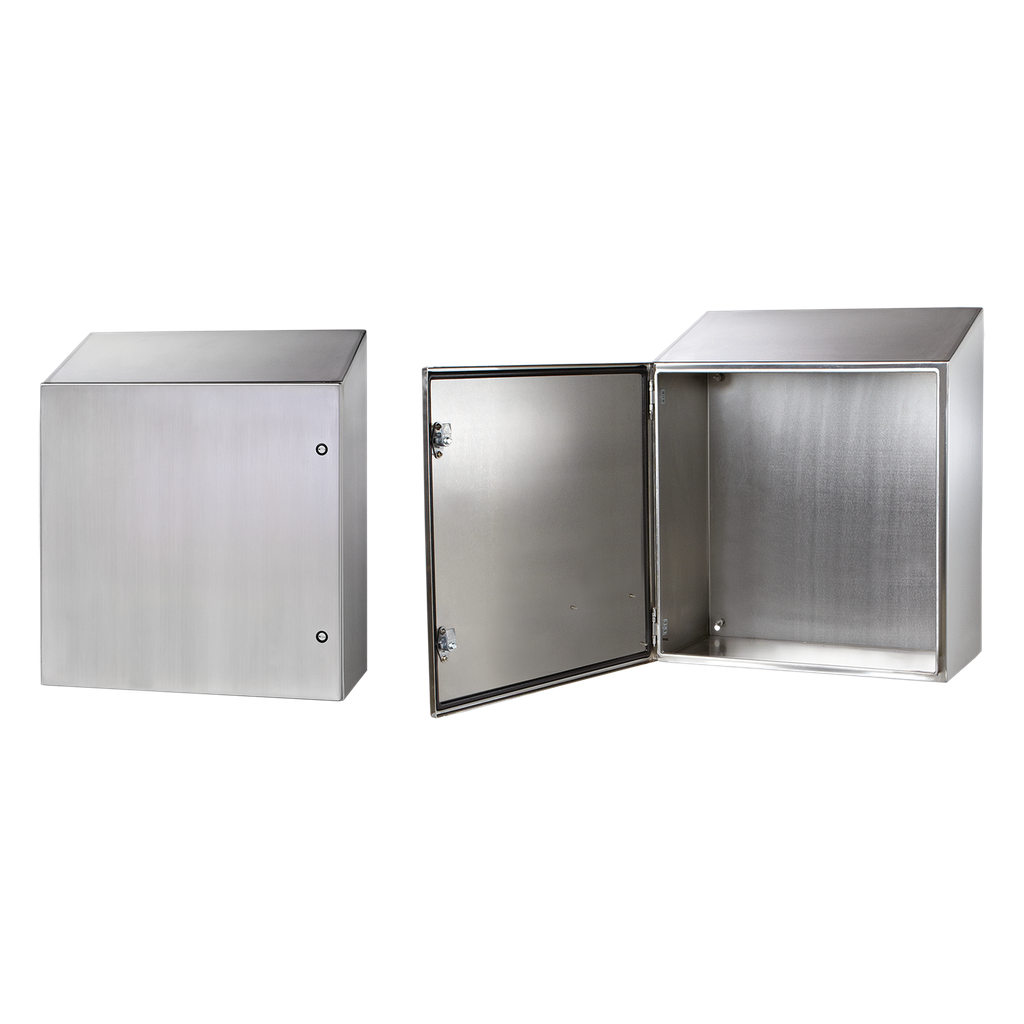

Concept Sloped Top wallmount enclosures for indoor/outdoor applications in corrosive environments. This Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, CSD30248SSST item measures 30x24x8 in. with a material of SS 304, Brushed.

• Features
• 20 degree sloped top prevents pooling of liquids and accumulation of other debris
• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories
• Mounting holes in back of body for direct mounting or for optional external mounting brackets
• Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
• Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
• Provision on door for thermoplastic data pocket
• Provision on door for optional door stop kit
• Seams continuously welded and ground smooth
• Stainless steel quarter-turn latches furnished with flush slotted insert
• Seamless foam-in-place gasket
• Self-grounding latch system with double seal
• Bonding provision on door; grounding stud on body
• Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes
• Installation instructions

• Specifications
• Height (H) : 762
• Width (W) : 609
• Depth (D) : 203
• Protection Rating : NEMA Type 12
• Product Family : Concept
• Finish : Brushed #4
• Body Thickness : 1.59
• Door Thickness : 1.98
• Mounting (H x G) : 724 x 572
• Latch Quantity : 2
• Modification Services : Yes
• IP Rating : IP66
• Weight : 52
• Sub Brand : Concept
• Material : Stainless Steel
• Size : 30.000 x24.000 x8.0000 in
• NEMA Rating : 4X Watertight, corrosion-resistant
