ALLIED MOLDED PRODUCTS

AMP1648H

Name: AMP1648H
Brand: Mayer Electric Supply
SKU: ALIAMP1648H
Price: 179.32 USD
Availability: OutOfStock

16X14X8 PC ENCL HNG SCR CVR FE

ALIAMP1648H AMP1648H 085339991250

179.32 / Each

http://schema.org/OutOfStock

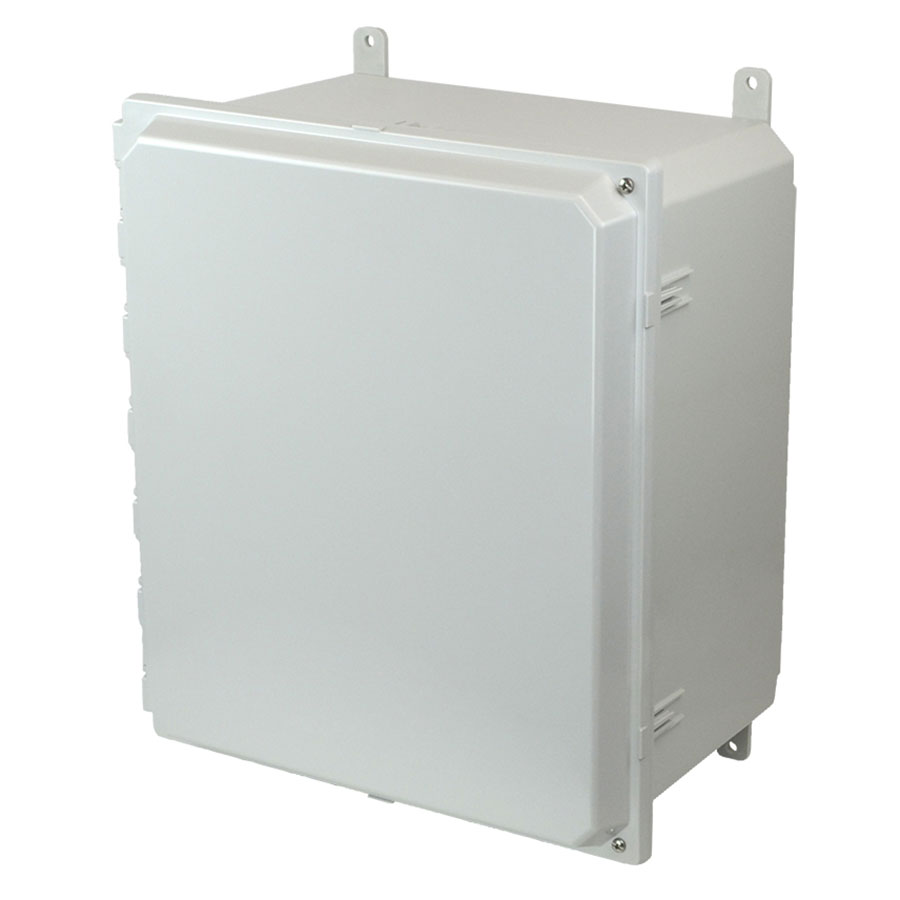

16"x14"x8" POLYLINE® polycarbonate wall mount enclosure assembly with 2-screw hinged cover

QTY

16"x14"x8" POLYLINE® polycarbonate wall mount enclosure assembly with 2-screw hinged cover

Non-corrosive
non-conductive
light weight with lower installation cost
easy to modify and longer life cycle compared to steel
Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 - File No. E120175; CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13 - File No. 89590
Complies with EN / IEC 60204-1 and 60529 Type IP66 and RoHS directive

Enclosure Type : JIC Size
Cover Type : Opaque
Closure Type : 2-Screw
Mounting Description : Nonmetal feet fastened to back side brass inserts
Height : 15.98 in
Width : 13.98 in
Depth : 7.81 in
Carton Quantity : 1
Country of Origin : United States of America
Color : Gray (RAL 7035)
Patents : U.S. Patent No. 7,572,975
Material : Polycarbonate box and cover
Additional Materials : 316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
