Combined support bracket in vertical, PanelSeT SFN, Spacial SF, Spacial SM, steel

BRACKET

SQDDZ5MS10 DZ5MS10 3389110557053
1.58 / EA
http://schema.org/OutOfStock

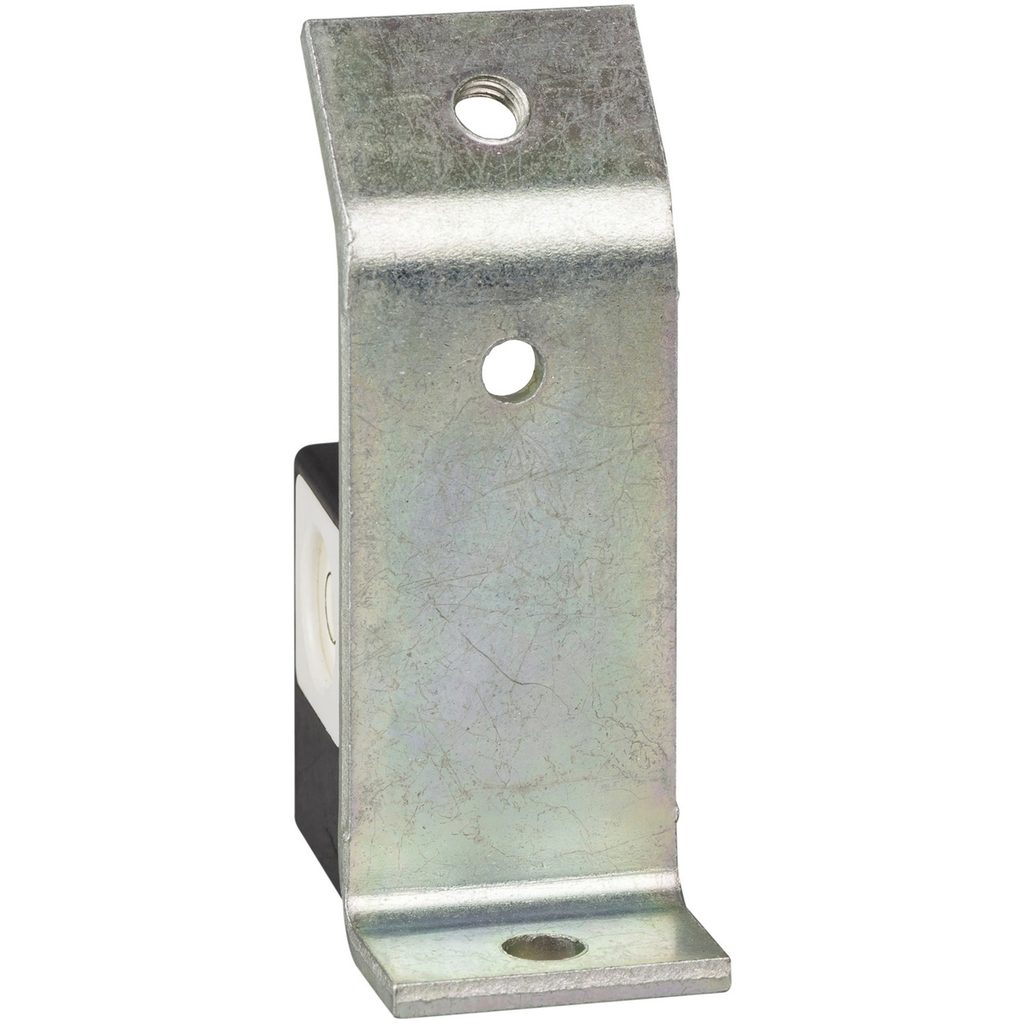

Mayer-DDS-Combined support bracket in vertical, PanelSeT SFN, Spacial SF, Spacial SM, steel-1
  • Country of Origin: France
  • Warranty Length: 18 mth
This is a combined support bracket in vertical suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. This product allows the installation of a DIN rail and an earthing strip on different planes, to minimize the cable radiuses. It is designed to be intalled directly on the vertical structure and/or using mounting plates. It is made of zinc-coated steel. The kit contains 10 brackets.
QTY
  • Product Description
  • Specifications
This is a combined support bracket in vertical suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. This product allows the installation of a DIN rail and an earthing strip on different planes, to minimize the cable radiuses. It is designed to be intalled directly on the vertical structure and/or using mounting plates. It is made of zinc-coated steel. The kit contains 10 brackets.
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110923EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.238981516
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.129296618
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.391060909
  • Specifications
    • Country of Origin : France
    • Mounting Support : DIN rail || earthing bar
    • Accessory / Separate Part Category : mounting accessory
    • Product Or Component Type : support bracket
    • Range : PanelSeT
    • Mounting Location : on structure of enclosure || on mounting plate
    • Quantity Per Set : set of 10
    • Device Application : multi-purpose
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
  • Complementary
    • Material : zinc coated steel
