Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face

Switchboard Front display modu

SQDTRV00121 TRV00121 3606480025389
864.02 / EA
http://schema.org/OutOfStock

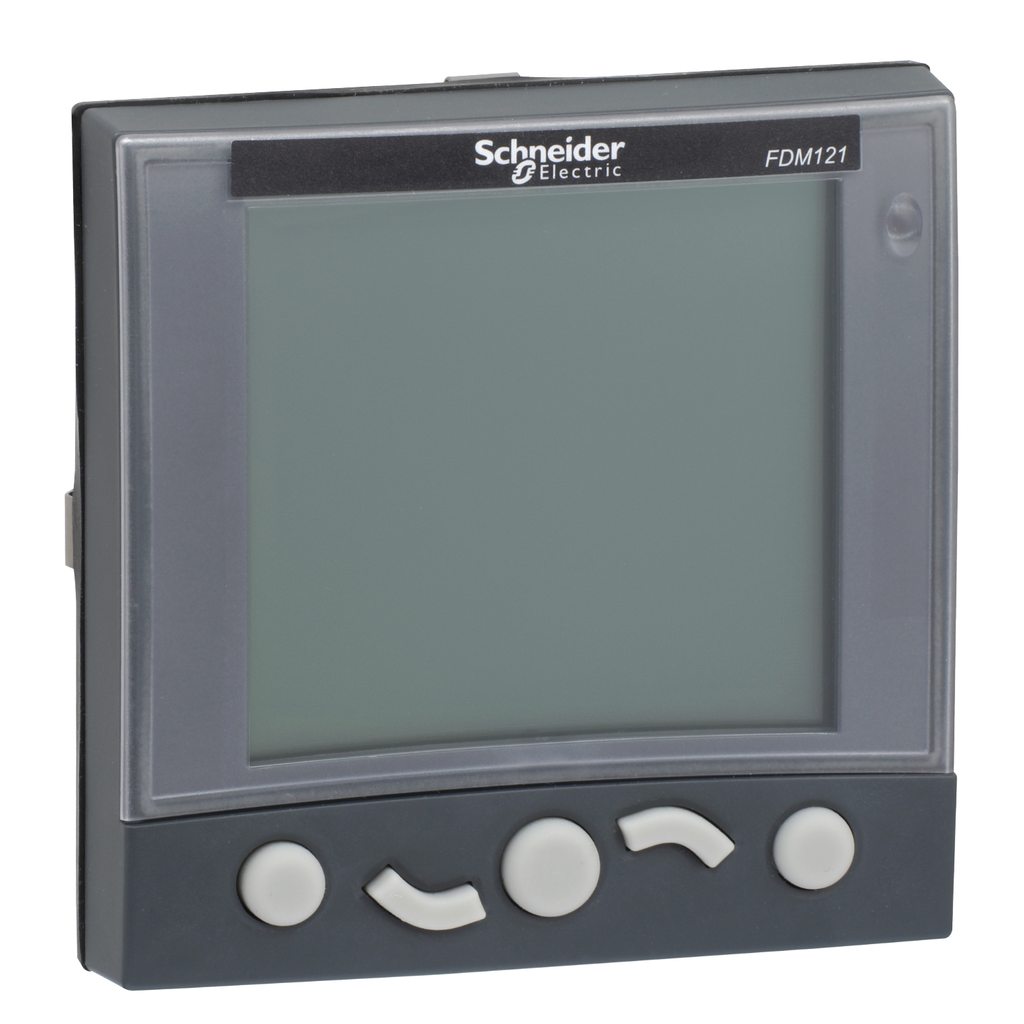

Mayer-DDS-Ethernet switchboard display FDM 121, 1 connected device, screen 96mm x 96mm, IP54 on front face-1
  • Current: 21 mA
  • Depth: 33.6 mm
  • Height: 96 mm
  • Mounting Type: Flush Mounting
  • Standard: CE, CSA, UL
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
  • Width: 96 mm
This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used) The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software.
QTY
  • Product Description
  • Specifications
This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used) The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software.
  • Environment
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ip Degree Of Protection : IP53 front face:
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2305023EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI2305023EN
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • [Us] Rated Supply Voltage : 24 V DC - 20...10 %
    • Height : 96 mm
    • Standards : CE || CSA || UL
    • Mounting Support : surface mount with kit || door cut-out
    • Display Resolution : 128 x 128 pixels
    • Current Consumption : 21 mA
    • Control Type : remote control
    • Accessory / Separate Part Category : spare part ComPact NS630b...1600 || spare part ComPact NS1600b...3200
    • View Angle Horizontal X Vertical : 60 x 30°
    • Mounting Mode : flush mounting
    • Width : 96 mm
    • Display Type : LCD screen with white backlighting
    • Depth : 33.6 mm
  • Specifications
    • Range Compatibility : MasterPact MTZ || MasterPact NW || MasterPact NT || Compact NSX || ComPact ComPact NS630b...1600 || ComPact ComPact NS1600b...3200 || PowerPact PowerPact H || PowerPact PowerPact J || PowerPact PowerPact L || PowerPact PowerPact P || PowerPact PowerPact R
    • Accessory / Separate Part Category : display and signalling accessory
    • Product Or Component Type : display module
    • Product Name : Enerlin'X FDM
    • Function Of Module : remote control || view network || metering || display alarm
    • Device Short Name : FDM121
