Interior, I-Line Panelboard, HCJ, 400A, main lugs, 63in CB space, for 32in W x 73in H x 9.5in D box, Cu bus

PNLBRD INT I-LINE 400A MLP 3PH

SQDHCJ32734CU HCJ32734CU 785901475385
3106.36 / EA
http://schema.org/OutOfStock

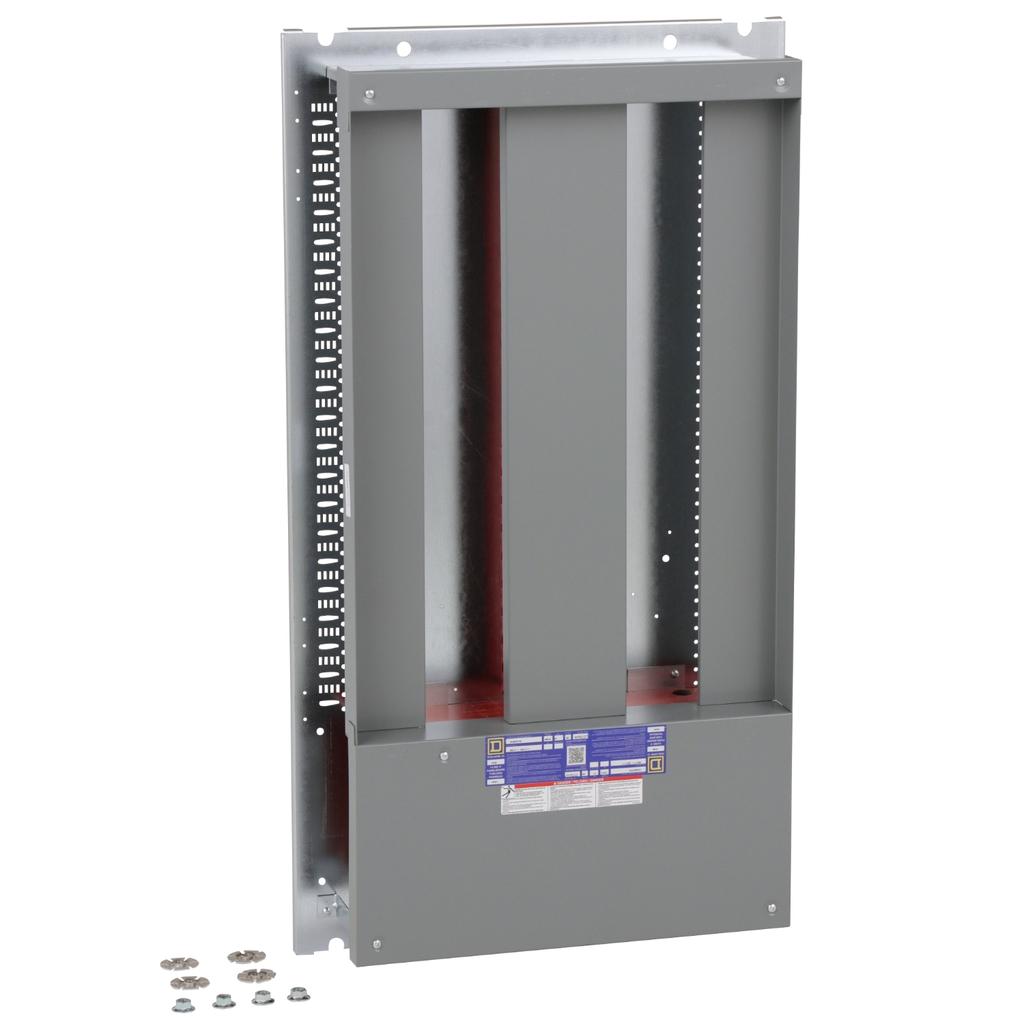

Mayer-DDS-Interior, I-Line Panelboard, HCJ, 400A, main lugs, 63in CB space, for 32in W x 73in H x 9.5in D box, Cu bus-1
  • Country of Origin: USA
  • Depth: 8.7 in
  • Enclosure Type: Distribution Enclosure
  • Height: 48.02 in
  • Material: Steel
  • Width: 26.44 in
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electri
QTY
  • Product Description
  • Features
  • Specifications
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electri
  • Product Destination
    • enclosure HCJ 32 in 73 in 9.5 in
  • Circuit Breaker Type
    • B-Frame
    • J-frame
    • H-frame
    • Q-Frame
    • QO
  • Tightening Torque
    • 28.47-28.47 N.m 13.3-151 mm² (AWG 6...300 kcmil)
  • Physical Attributes
    • Bar Length : 63 in
  • Conformance Attributes
    • Product Certifications : cULus
  • Complementary Attributes
    • Line Rated Current : 400 A
  • Important Information Attributes
    • B2B Bullet Point 1 : 600VAC, 250VDC maximum
    • B2B Bullet Point 2 : Fully rated and series rated system available
    • B2B Bullet Point 3 : Dead front trim is easily installed
    • B2B Bullet Point 4 : Factory assembled or ready to install
    • B2B Bullet Point 5 : UL Listed
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-10
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2202
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Enclosure Type : distribution enclosure
    • Load Center Type : main lugs
    • Localisation On Device : interior
    • Material : painted steel
    • Package Weight Lbs : 46.266 kg
    • Phase : 3 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : interiors
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : interiors
    • Range Of Product : I-Line
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=508255852&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
    • Height : 48.02 in
    • Width : 26.44 in
    • Depth : 8.7 in
