Interior, I-Line Panelboard, HCJ, 400A, main lugs, 27in CB space, for 32in W x 48in H x 9.5in D box, Cu bus

Interior, I-Line Panelboard, HCJ, 400A, main lugs, 27in CB space, for 32in W x 48in H x 9.5in D box, Cu bus

SQDHCJ14484CU HCJ14484CU 785901475286
2292.31 / EA
http://schema.org/OutOfStock

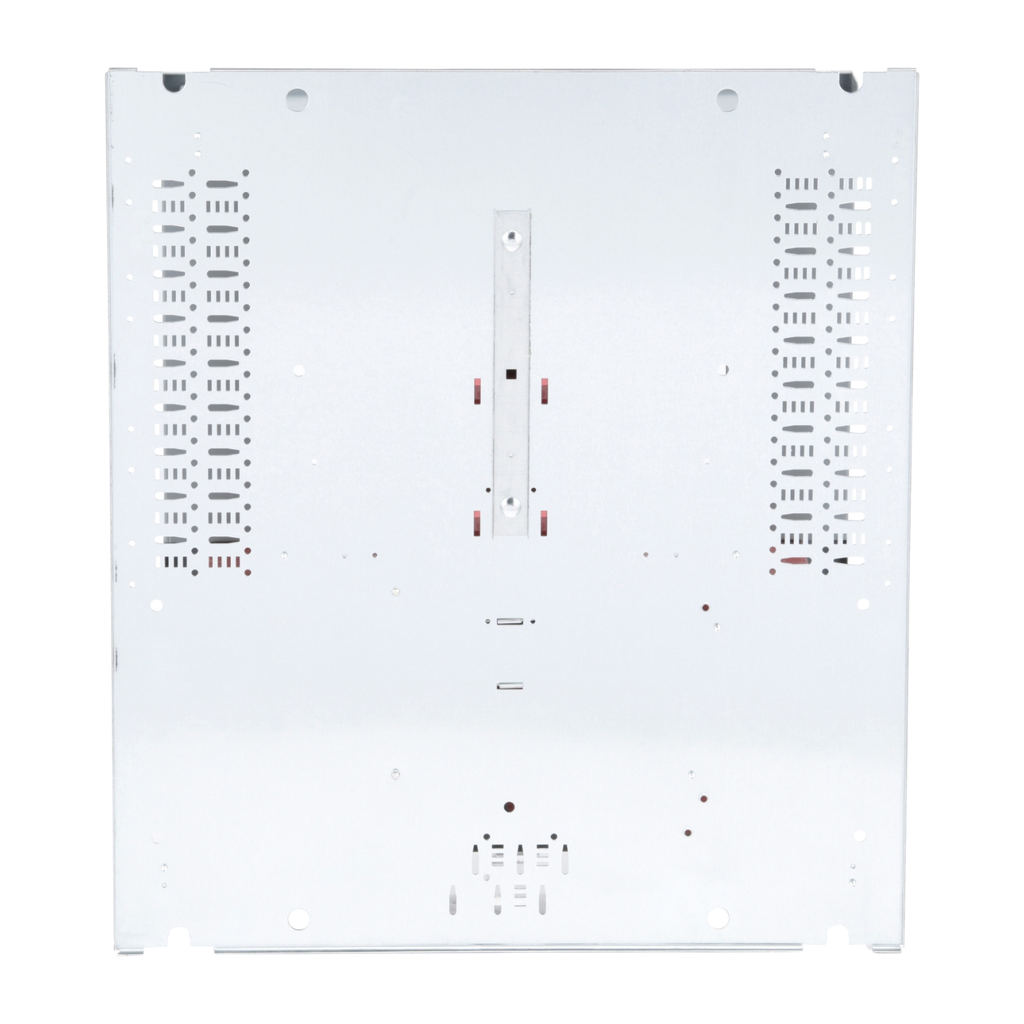

Mayer-DDS-Interior, I-Line Panelboard, HCJ, 400A, main lugs, 27in CB space, for 32in W x 48in H x 9.5in D box, Cu bus-2
  • Country of Origin: USA
  • Depth: 8.7 in
  • Enclosure Type: Distribution Enclosure
  • Height: 30.02 in
  • Length: 27 in
  • Width: 26.44 in
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. As a main lug paneboard your able to distribute central power to subpanels using the secure points. After being tested and certified by UL to adhere to the specfications listed in the datasheet, these panelboards come with a 18 month warranty.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. As a main lug paneboard your able to distribute central power to subpanels using the secure points. After being tested and certified by UL to adhere to the specfications listed in the datasheet, these panelboards come with a 18 month warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407017EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : 081b184c-7ea7-46e0-b71b-4bab161f6657
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : United States
    • Length : 27 in
    • Width : 26.44 in
    • Height : 30.02 in
    • Range Of Product : I-Line
    • Circuit Breaker Type : B-Frame || J-frame || H-frame || Q-Frame || QO
    • Product Or Component Type : interiors
    • Enclosure Type : distribution enclosure
  • Complementary
    • Height : 30.02 in
    • Localisation On Device : interior
    • Tightening Torque : 28.47-28.47 N.m 13.3-151 mm² (AWG 6...300 kcmil)
    • Product Destination : enclosure HCJ 32 in 48 in 9.5 in
    • Bar Length : 27 in
    • Phase : 3 phase
    • Material : painted steel
    • Line Rated Current : 400 A
    • Width : 26.44 in
    • Depth : 8.7 in
    • Load Center Type : main lugs
  • Environment
    • Product Certifications : cULus
