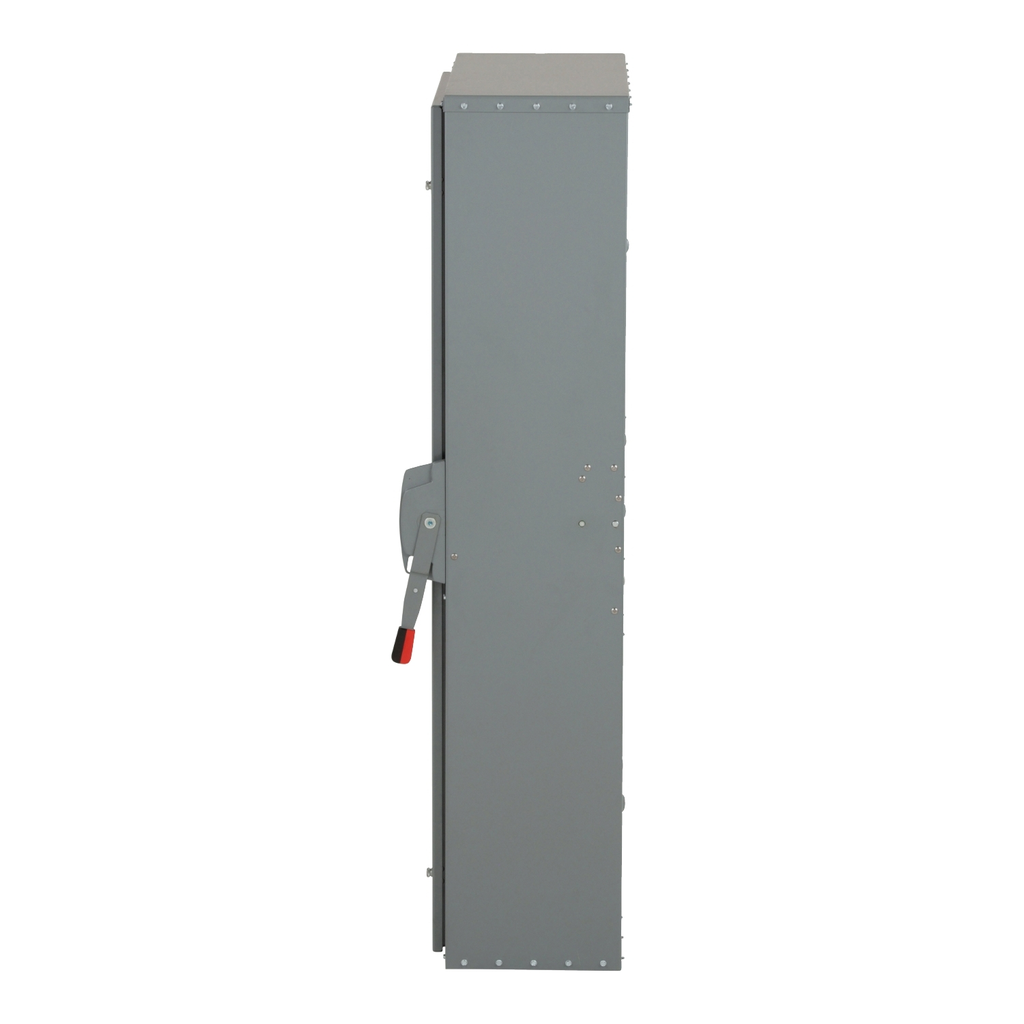

Safety switch, heavy duty, non fusible, 800A, 3 pole, 500HP, 600V AC/DC, NEMA 1

SWITCH NOT FUSIBLE HD 600V 800

SQDHU367 HU367 785901195429
6778.56 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 800A, 3 pole, 500HP, 600V AC/DC, NEMA 1-2
  • Country of Origin: Mexico
  • Depth: 17.75 in
  • Height: 69.13 in
  • Net Weight: 165.1 kg
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Weight: 165.1 kg
  • Width: 36.62 in
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
QTY
  • Product Description
  • Features
  • Specifications
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503030_V1
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 3ccc1618-a689-404e-9255-a0e6b213d760
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1092.6315181856207
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1.781701981044254
    • Carbon Footprint Of The Distribution Phase [A4] : 0.4 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 095 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.4281391821868275
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1095.231037354808
  • Complementary
    • Height : 69.13 in
    • Device Mounting : surface
    • Tightening Torque : 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
    • Net Weight : 165.1 kg
    • Electrical Connection : lugs
    • Awg Gauge : 3 x AWG 3/0...3 x 750 kcmil copper or aluminium
    • Wiring Configuration : 3-wire
    • Width : 36.62 in
    • Depth : 17.75 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 36.62 in
    • Height : 69.13 in
    • Weight : 165.1 kg
    • Disconnector Device Type : non-fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Nema Degree Of Protection : NEMA 1 steel
    • Line Rated Current : 800 A
    • Motor Power Hp : 500 hp at 480 V AC 50-60 Hz for 3 phase motors || 50 hp at 600 V AC 50-60 Hz for 1 phase motors || 500 hp at 600 V AC 50-60 Hz for 3 phase motors || 50 hp at 600 V DC
    • Device Composition : none
    • Device Application : heavy application
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC/DC
