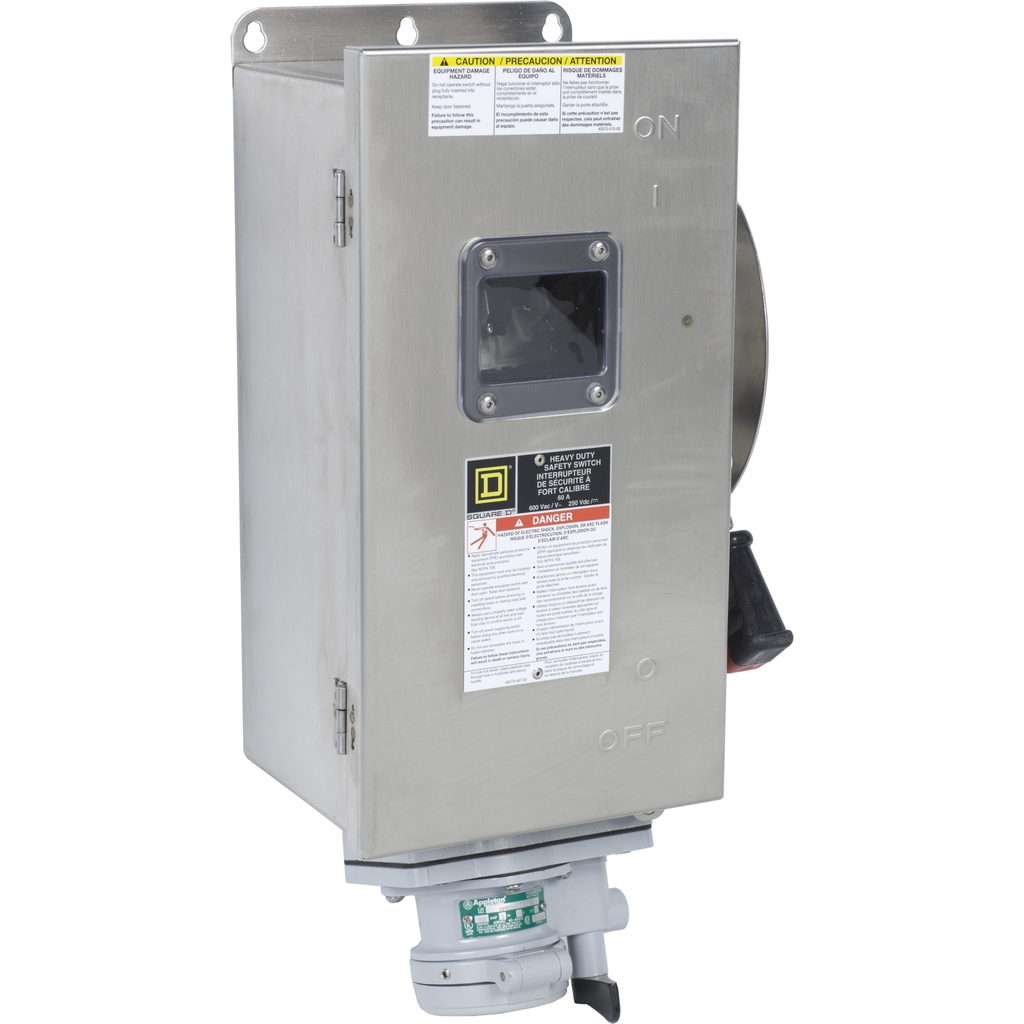

Safety switch, heavy duty, non fusible, 60A, 600VAC, 600VDC, 3 poles, 60hp, NEMA 4, 4X, 5, Appleton, window

SW UNFUSED HD 60A STAINLESS/RE

SQDHU362DSWAVW HU362DSWAVW 785901351894
4401.56 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 60A, 600VAC, 600VDC, 3 poles, 60hp, NEMA 4, 4X, 5, Appleton, window-1
  • Country of Origin: USA
  • Depth: 5.11 in
  • Height: 16.87 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 10.81 in
Play a crucial role in today’s commercial and industrial settings, isolate power in daily activities, provide an effective way to interrupt power in an emergency, provide lockout on sight disconnect.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2305006EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 12.992332388513393
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 42.06381624648721
    • Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.8 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 76 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 17.736944631705295
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 75.89394103917927
  • Complementary
    • Height : 16.87 in
    • Device Mounting : surface
    • Tightening Torque : 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10)
    • Electrical Connection : receptacle
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Wiring Configuration : without neutral || 4-wire
    • Width : 10.81 in
    • Depth : 5.11 in
  • Specifications
    • Country of Origin : United States
    • Width : 10.81 in
    • Height : 16.87 in
    • Disconnector Device Type : non-fusible disconnect
    • Product Or Component Type : Receptacle Switch
    • Product Destination : plug ACP6034BC Appleton Powertite
    • Nema Degree Of Protection : NEMA 4/4X/5 stainless steel 304
    • Line Rated Current : 60 A
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
