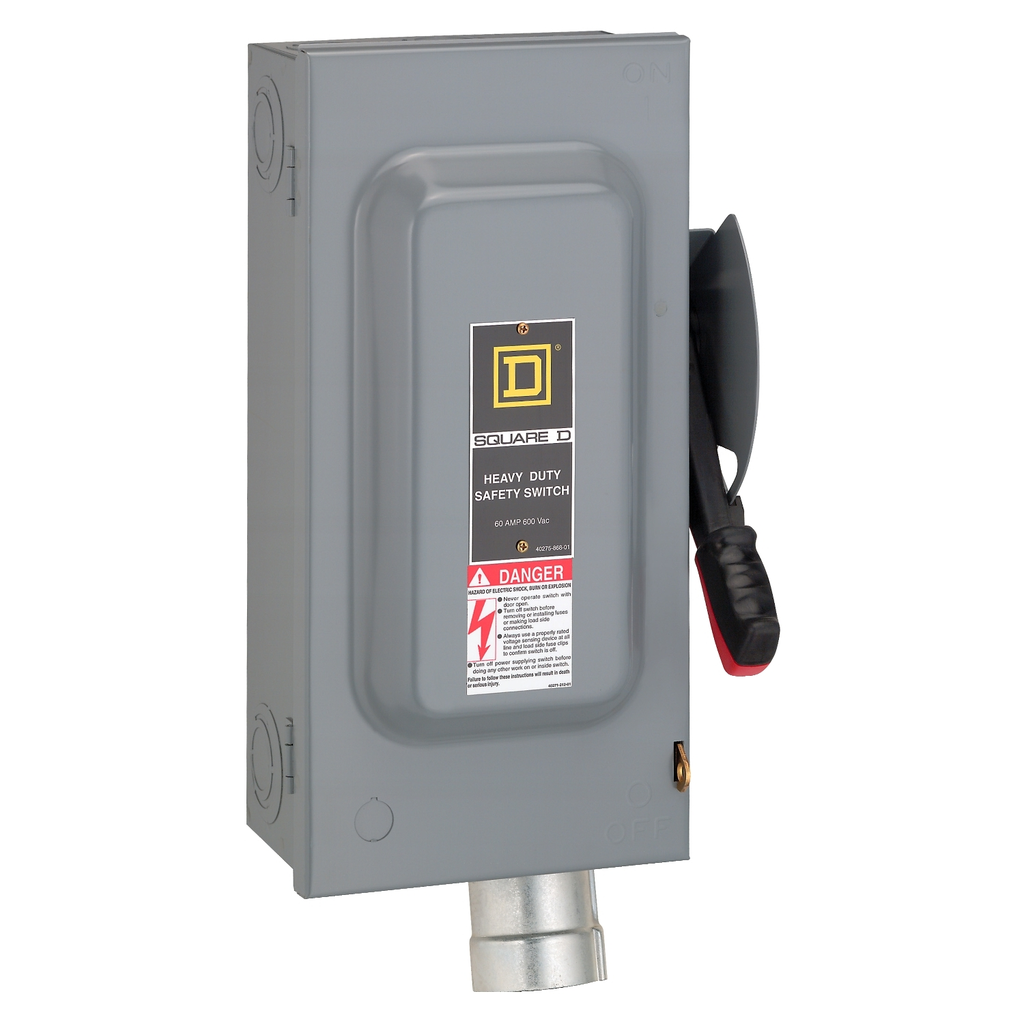

Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Hubbellock receptacle

SW UNFUSED HD 60A/HUBBELLOCK R

SQDHU362AWH HU362AWH 785901505068
2416.61 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Hubbellock receptacle-1
  • Country of Origin: USA
  • Depth: 7 in
  • Height: 16.5 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 10.5 in
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
QTY
  • Product Description
  • Features
  • Specifications
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2305006EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 12.992332388513393
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 49.509946343291126
    • Carbon Footprint Of The Distribution Phase [A4] : 3 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.9 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 87 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 20.876735764149558
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 87.02877385050839
  • Complementary
    • Height : 16.5 in
    • Device Mounting : surface
    • Tightening Torque : 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10)
    • Electrical Connection : receptacle
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Wiring Configuration : 4-wire
    • Width : 10.5 in
    • Depth : 7 in
  • Specifications
    • Country of Origin : United States
    • Width : 10.5 in
    • Height : 16.5 in
    • Disconnector Device Type : non-fusible disconnect switch
    • Product Or Component Type : Receptacle Switch
    • Product Destination : plug SD12781 Hubbellock
    • Nema Degree Of Protection : NEMA 12K
    • Line Rated Current : 60 A
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
