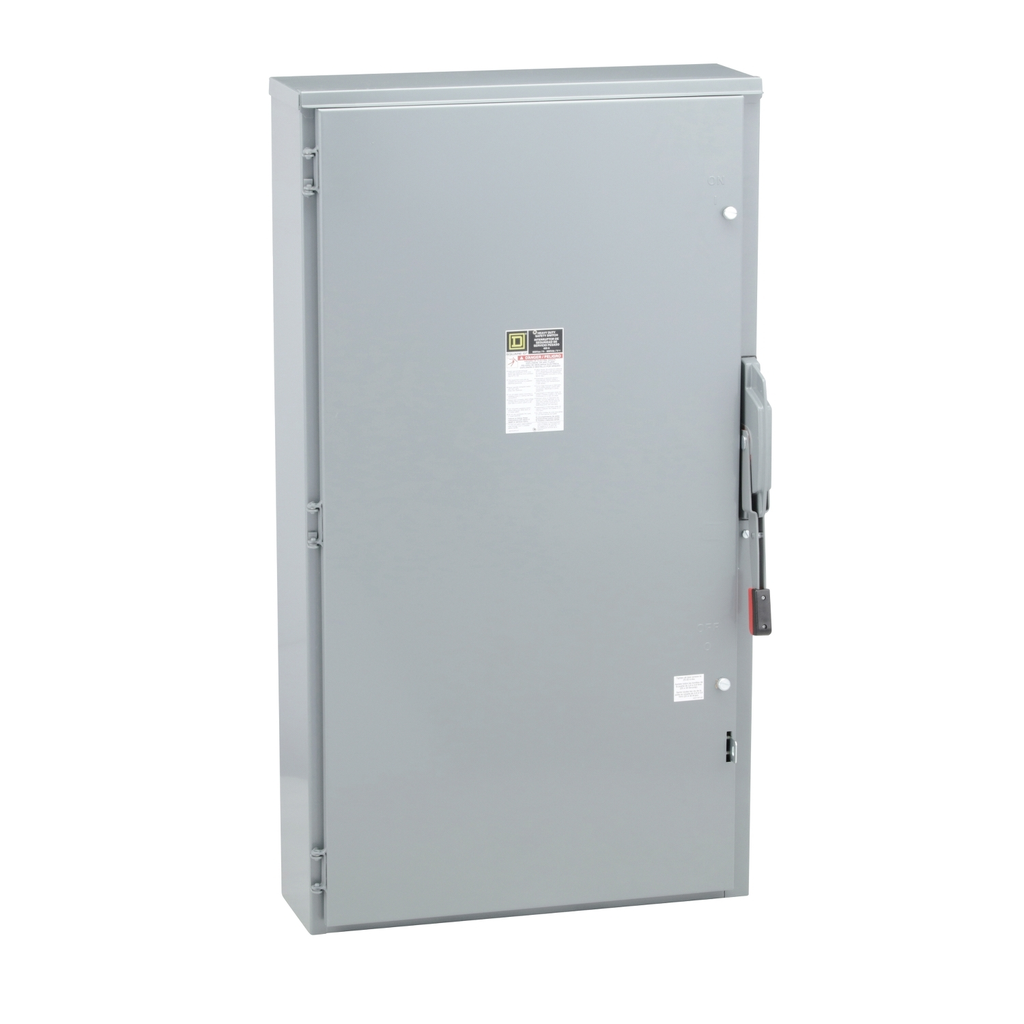

Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R

SWITCH NONFUSIBLE HD 600V 400A

SQDHU365R HU365R 785901450481
2608.70 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R-2
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UE Rated Operational Voltage : 600 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Motor Power HP : 125 hp at 240 V AC 50-60 Hz for 3 phase motors, 250 hp at 480 V AC 50-60 Hz for 3 phase motors, 350 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC, 50 hp at 600 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 214.72080951593014, 215 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 206 kg CO2 eq., 205.95222047374295
    • Carbon Footprint Of The Installation Phase A5 : 0.205059042943438, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 433 kg CO2 eq., 432.9412355197337
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 547 kg CO2 eq., 547.0206826529308
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-16
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 1/0...750 kcmil copper or aluminium
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 84.822 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Sustainable Packaging : Yes
    • Tightening Torque : 550-550 lbf.in (AWG 1/0...750 kcmil)
    • Total Lifecycle Carbon Footprint : 1 401 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Wiring Configuration : 3-wire
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503029EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : AMAREL RIVERA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1400.840007205281
    • Environmental Disclosure : ENVPEP2503029EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Nema Degree Of Protection : NEMA 3R galvannealed steel
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503029EN
    • Pep Verification Date : 2025-03-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
