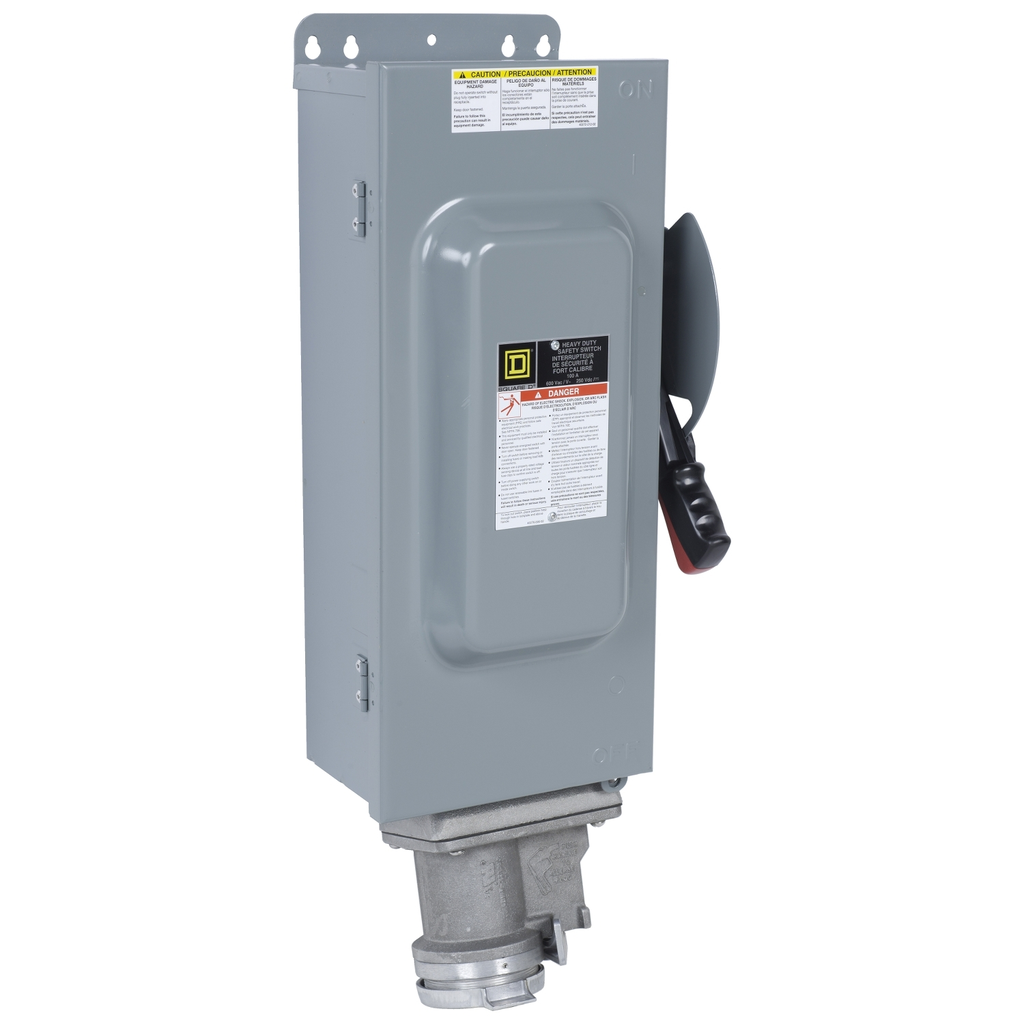

Safety switch, heavy duty, non fusible, 100A, 600VAC, 600VDC, 3 poles, 100hp, NEMA 12K, Appleton Powertite receptacle

SW NOT FUSIBLE HD 100A 3P/APPL

SQDHU363AWA HU363AWA 785901666301
7878.30 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 100A, 600VAC, 600VDC, 3 poles, 100hp, NEMA 12K, Appleton Powertite receptacle-1
  • Country of Origin: USA
  • Depth: 7 in
  • Height: 20.5 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 10.5 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1304031
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 30.347997770169158
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 74.23218927275293
    • Carbon Footprint Of The Distribution Phase [A4] : 4 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 1 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 141 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 31.301302366521284
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 141.35371564311185
  • Complementary
    • Height : 20.5 in
    • Device Mounting : surface
    • Tightening Torque : 50-50 lbf.in (AWG 3...AWG 1) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10)
    • Electrical Connection : receptacle
    • Awg Gauge : AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper
    • Wiring Configuration : 4-wire
    • Width : 10.5 in
    • Depth : 7 in
  • Specifications
    • Country of Origin : United States
    • Width : 10.5 in
    • Height : 20.5 in
    • Disconnector Device Type : non-fusible disconnect switch
    • Product Or Component Type : Receptacle Switch
    • Product Destination : plug ACP1034CD Appleton Powertite
    • Nema Degree Of Protection : NEMA 12K
    • Line Rated Current : 100 A
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
