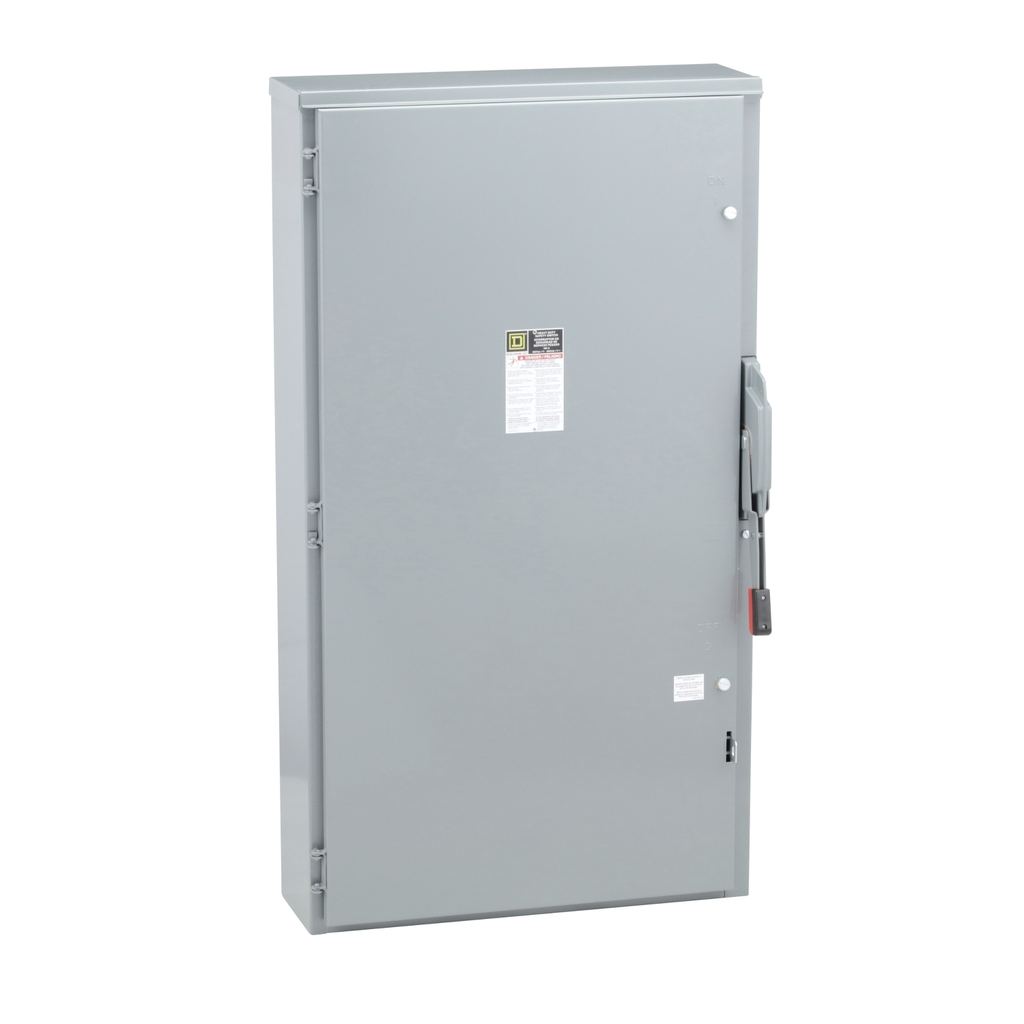

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 600 amps, three poles, 200 horse power, with a voltage of 240 VAC and 250 VDC. This device is Type 3R rated with a galvannealed steel enclosure This has factory installed/bonded neutral.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 600 A
• Maximum Horse Power Rating : 200 hp at 240 V AC 50/60 Hz for 3 phase motors
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Motor Power Hp : 75 hp at 240 V AC 50/60 Hz for 3 phase motors, 50 hp at 250 V DC 50/60 Hz
• Tightening Torque : 550-550 lbf.in 177-253 mm², 550-550 lbf.in 53.49-152.0 mm² (AWG 1/0...300 kcmil)
• [Ue] Rated Operational Voltage : 240 V AC, 250 V DC
• Carbon Footprint Of The Distribution Phase [A4] : 204.2862621482111, 204 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 196 kg CO2 eq., 195.94379043445164
• Carbon Footprint Of The Installation Phase [A5] : 0.19509401765503578, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 412 kg CO2 eq., 411.90207383040376
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1 231 kg CO2 eq., 1230.7965359690943
• Local Data Status : Publishable
• Local Publishable Date : 2026-05-08
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1906
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Awg Gauge : AWG 3/0...500 kcmil copper or aluminium
• Device Composition : neutral (factory installed)
• Disconnector Device Type : fusible disconnect
• Electrical Connection : lugs
• Energy Efficiency Optimized : False
• Number Of Poles : 3
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : No
• Series Name : heavy duty
• Software Version : v6.2.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 043 kg CO2 eq.
• Pep Code : ENVPEP2503029EN
• Database Version : 2024-01
• Pep Verification Date : 2025-03-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 90
• Height Nominal : 50.31 in
• Width Nominal : 27.88 in
• Certificate Agency : CSA
• Halogen-free Status : Halogen free plastic parts product
• Package Weight(Lbs) : 81.647 kg
• Take-back : No
• Warranty (In Months) : 18
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 2043.1237563998159
• Environmental Disclosure : ENVPEP2503029EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Nema Degree Of Protection : NEMA 3R galvannealed steel
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Pep Code : ENVPEP2503029EN
• Pep Verification Date : 2025-03-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Specifications
• Country of Origin : Mexico, United States
• Depth : 10.13 in
