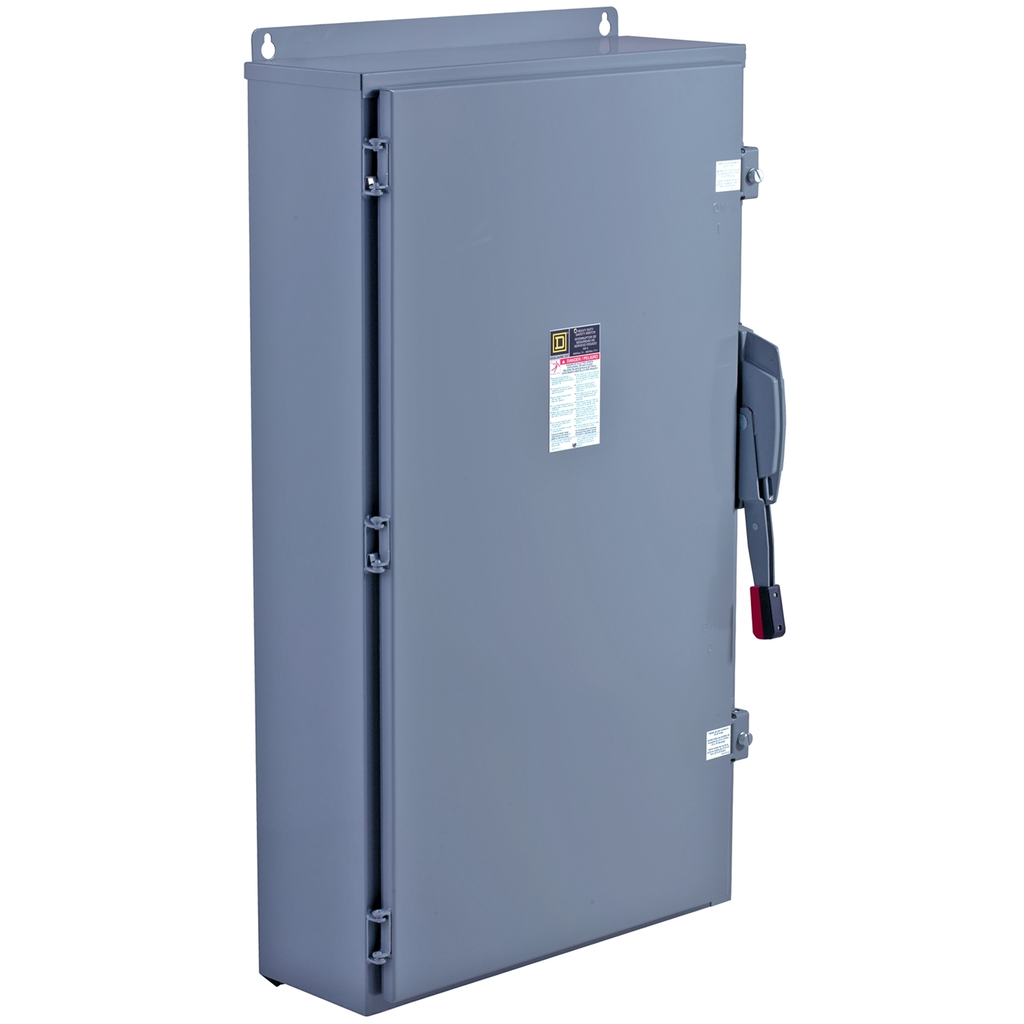

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : 600 V AC/DC
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Motor Power HP : 100 hp at 480 V AC 50-60 Hz for 2 phases motors, 250 hp at 480 V AC 50-60 Hz for 2 phases motors, 125 hp at 600 V AC 50-60 Hz for 2 phases motors, 350 hp at 600 V AC 50-60 Hz for 2 phases motors, 50 hp at 250 V DC, 50 hp at 600 V DC
• Short Circuit Current : 10 kA for H or K, 200 kA for R or J
• Carbon Footprint Of The Distribution Phase A4 : 212.42480406650725, 212 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 204 kg CO2 eq., 203.74997737679072
• Carbon Footprint Of The Installation Phase A5 : 0.2028663505764849, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 428 kg CO2 eq., 428.31180328969435
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 729 kg CO2 eq., 729.3609102039077
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• AWG Gauge : AWG 1/0...750 kcmil copper or aluminium
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Package Weight Lbs : 83.915 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : No
• Tightening Torque : 550-550 lbf.in (AWG 1/0...750 kcmil)
• Total Lifecycle Carbon Footprint : 1 574 kg CO2 eq.
• Wiring Configuration : 4-wire
• Pep Code : ENVPEP2503029EN
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : AMAREL RIVERA
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1574.0503612874766
• Environmental Disclosure : ENVPEP2503029EN
• Halogen Content Performance : Halogen free plastic parts product
• Nema Degree Of Protection : NEMA 3R/12 galvannealed steel
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503029EN
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
