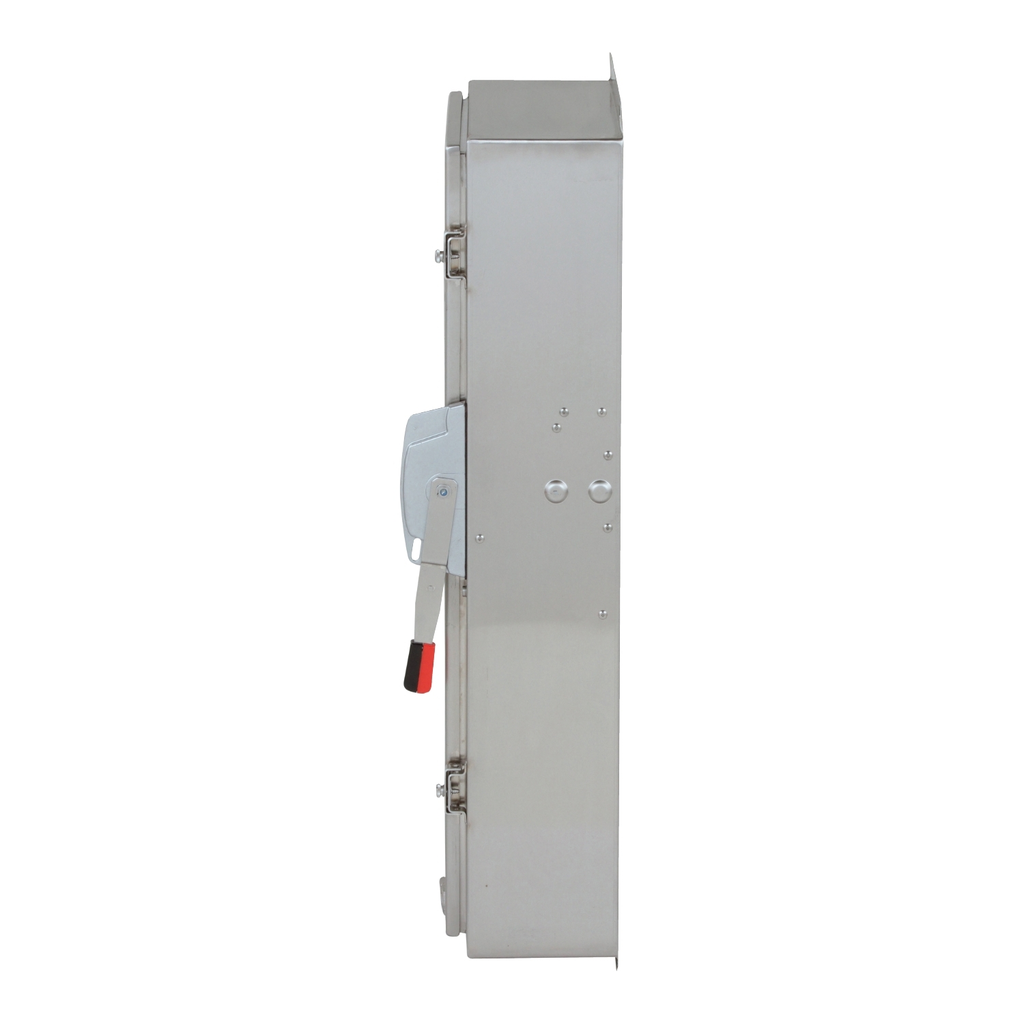

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 400 A with a voltage of 600 V AC/DC. This switch has a NEMA 4X stainless steel 304 enclosure. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• UE Rated Operational Voltage : 600 V AC/DC
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Motor Power HP : 100 hp at 480 V AC 50-60 Hz for 3 phase motors, 250 hp at 480 V AC 50-60 Hz for 3 phase motors, 125 hp at 600 V AC 50-60 Hz for 3 phase motors, 350 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC, 50 hp at 600 V DC
• Short Circuit Current : 10 kA for H or K, 200 kA for R or J
• Carbon Footprint Of The Distribution Phase A4 : 212.42480406650725, 212 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 204 kg CO2 eq., 203.74997737679072
• Carbon Footprint Of The Installation Phase A5 : 0.2028663505764849, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 428 kg CO2 eq., 428.31180328969435
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 547 kg CO2 eq., 547.0206826529308
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-16
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• AWG Gauge : AWG 1/0...750 kcmil copper or aluminium
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Package Weight Lbs : 83.915 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : heavy duty
• Sustainable Packaging : Yes
• Tightening Torque : 550-550 lbf.in (AWG 1/0...750 kcmil)
• Total Lifecycle Carbon Footprint : 1 392 kg CO2 eq.
• Wiring Configuration : 4-wire (3PH + N)
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2503029EN
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : AMAREL RIVERA
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1391.7101337364995
• Environmental Disclosure : ENVPEP2503029EN
• Halogen Content Performance : Halogen free plastic parts product
• Nema Degree Of Protection : NEMA 4X/5 stainless steel 304
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503029EN
• Pep Verification Date : 2025-03-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
