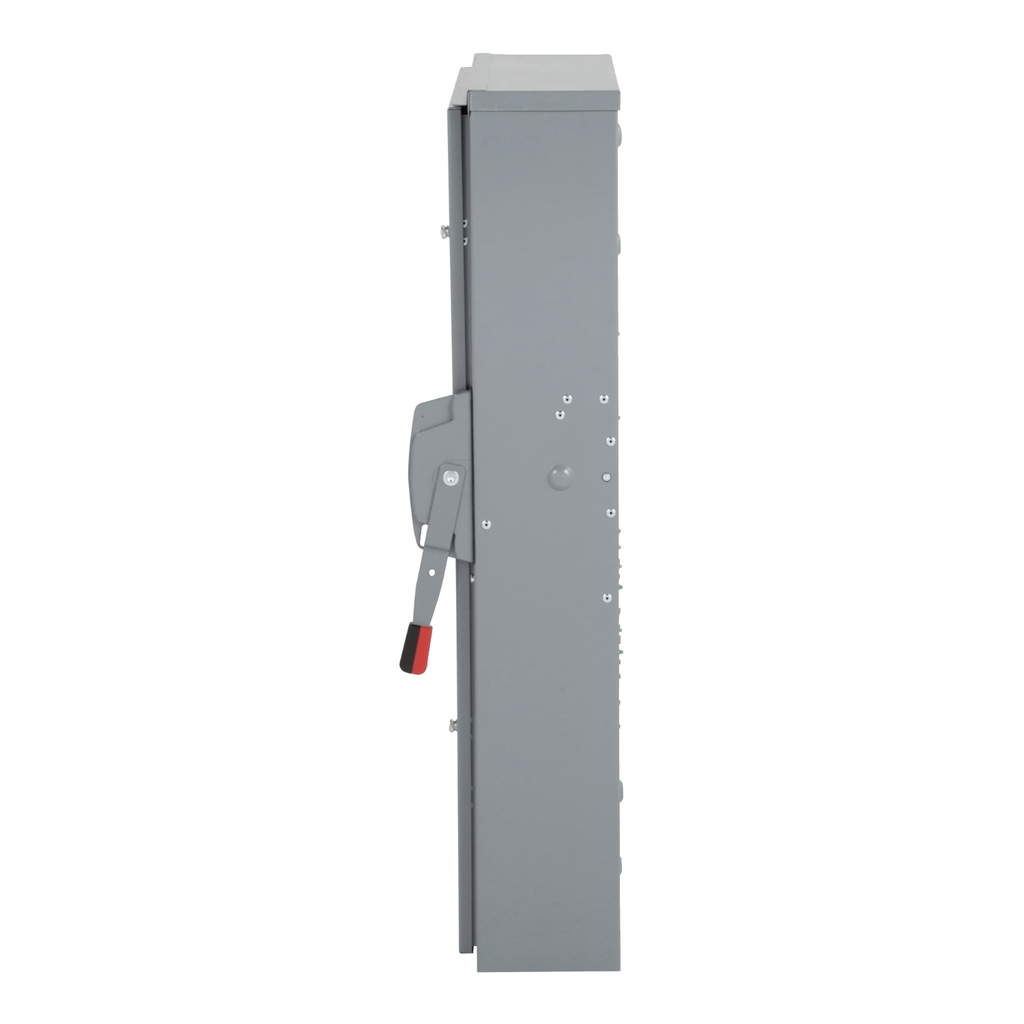

Safety switch, heavy duty, fusible, 400A, 3 pole, 125hp, 240VAC/250VDC, NEMA 3R

Safety switch, heavy duty, fusible, 400A, 3 pole, 125hp, 240VAC/250VDC, NEMA 3R

SQDH325R H325R 785901451433
2700.42 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fusible, 400A, 3 pole, 125hp, 240VAC/250VDC, NEMA 3R-2
  • Depth: 10.13 in
  • Fuse Type: H, J, K, R
  • Height: 50.31 in
  • Net Weight: 81.6 kg
  • Number of Poles: 3
  • Short Circuit Current Rating: 10 kA, 200 kA
  • Warranty Length: 18 mth
  • Weight: 81.6 kg
  • Width: 27.88 in
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 600A with voltage of 600 VAC and VDC. It is rated when using time delay fuses of 400 HP at 480 VAC single phase, 50 HP at 600 VDC and 250 VDC. This switch has a 2 wire configuration and is rated for AWG 3/0 to 500 kcmil aluminum and copper wire. This device has enclosure rating of NEMA 3R and it is made of galvannealed steel. It has a height of 50.31 in, width of 27.88 in and has a depth of 10.13 in. It is UL listed with the file E2875.
QTY
  • Product Description
  • Features
  • Specifications
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 600A with voltage of 600 VAC and VDC. It is rated when using time delay fuses of 400 HP at 480 VAC single phase, 50 HP at 600 VDC and 250 VDC. This switch has a 2 wire configuration and is rated for AWG 3/0 to 500 kcmil aluminum and copper wire. This device has enclosure rating of NEMA 3R and it is made of galvannealed steel. It has a height of 50.31 in, width of 27.88 in and has a depth of 10.13 in. It is UL listed with the file E2875.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503029_V1
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 547.0206826529308
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 405.15953802458023
    • Carbon Footprint Of The Distribution Phase [A4] : 201 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.2 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 346 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 192.73633384010333
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1346.0507003799476
  • Complementary
    • Height : 50.31 in
    • Device Mounting : surface
    • Tightening Torque : 550-550 lbf.in (AWG 1/0...750 kcmil)
    • Net Weight : 81.6 kg
    • Short-Circuit Current : 10 kA for H or K || 200 kA for R or J
    • Fuse Type : H or K || R or J
    • Electrical Connection : lugs
    • Awg Gauge : AWG 1/0...750 kcmil copper or aluminium
    • Wiring Configuration : 3-wire (3P)
    • Width : 27.88 in
    • Depth : 10.13 in
  • Specifications
    • Width : 27.88 in
    • Height : 50.31 in
    • Weight : 81.6 kg
    • Disconnector Device Type : fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Nema Degree Of Protection : NEMA 3R galvannealed steel
    • Line Rated Current : 400 A
    • Motor Power Hp : 50 hp at 240 V AC 50-60 Hz for 3 phase motors || 125 hp at 240 V AC 50-60 Hz for 3 phase motors || 50 hp at 250 V DC
    • Device Composition : none
    • Device Application : heavy application
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 250 V DC || 240 V AC
