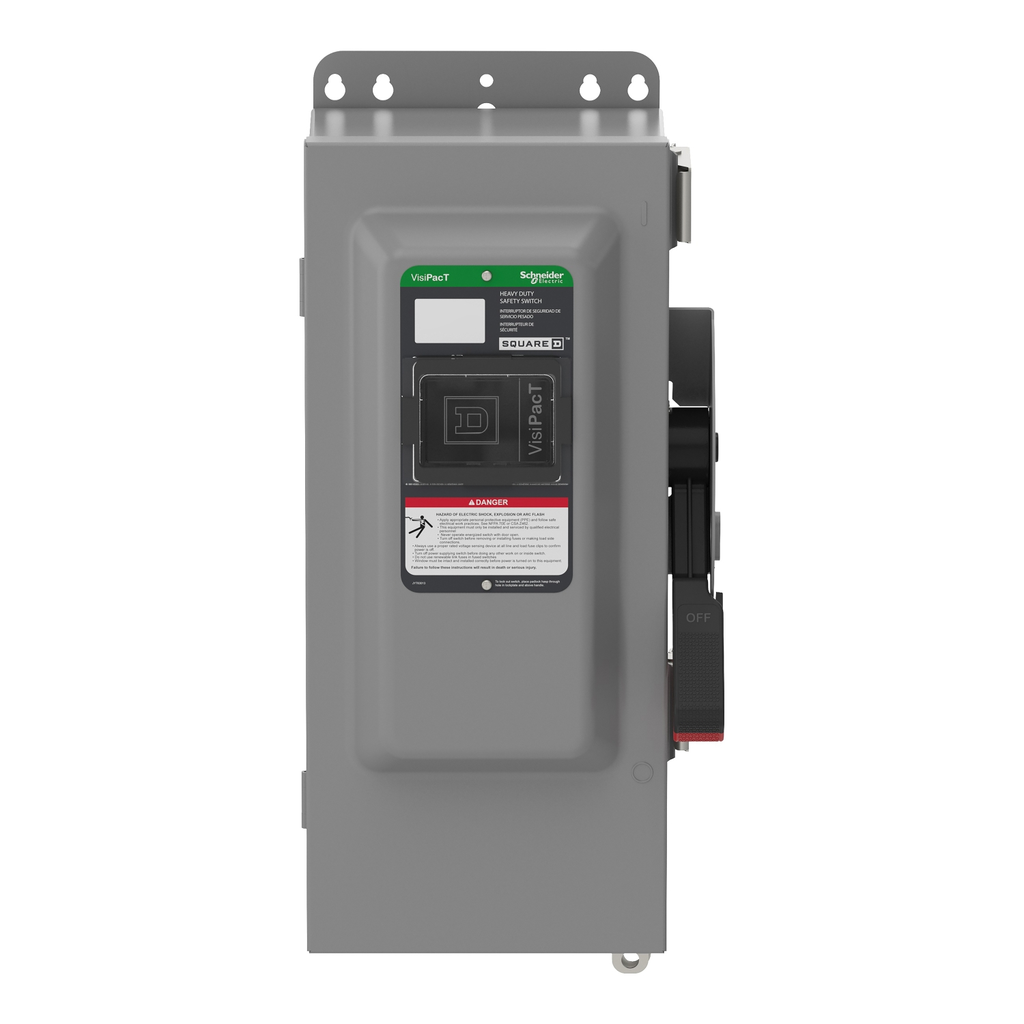

Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 12, 240V, 100A, 2 pole, neutral installed, ground lugs

HDSS TYPE12 240V 100A 2P FUSE

SQDVH223NAWKGL VH223NAWKGL 3606485893181
1065.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 12, 240V, 100A, 2 pole, neutral installed, ground lugs-2
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This two blade fusible heavy duty safety switch that is rated at 100A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration with 2 poles and one solid neutral that is factory installed. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 100.93006827441327
    • Environmental Disclosure : ENVPEP2303036EN
    • Nema Degree Of Protection : NEMA 12 galvannealed steel
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2303036EN
    • Pep Verification Date : 0017-06-14
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SC
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 12...AWG 1/0 aluminium, AWG 14...AWG 1/0 copper
    • Motor Power HP : 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors, 15 hp at 240 V AC 50-60 Hz for 3 phase motors, 15 hp at 240 V AC 50-60 Hz for 1 phase motors, 30 hp at 240 V AC 50-60 Hz for 3 phase motors, 20 hp at 250 V DC
    • Short Circuit Current : 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J
    • Tightening Torque : 50-50 lbf.in (AWG 1...AWG 3/0), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
    • Carbon Footprint Of The Distribution Phase A4 : 2.7383941227168256, 3 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 22 kg CO2 eq., 21.882822613347244
    • Carbon Footprint Of The Installation Phase A5 : 0.32277916703249643, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 56 kg CO2 eq., 55.754490053163416
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 20 kg CO2 eq., 20.231582318153297
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Pre Comm Date : 2023-04-05
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 9.5 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Single Throw Safety Switch
    • Returnability : Yes
    • Series Name : heavy duty
    • Services : factory installation
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 101 kg CO2 eq.
    • Wiring Configuration : 3-wire (2P + N)
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2303036EN
    • Pep Verification Date : 0017-06-14
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : AMAREL RIVERA
  • General Attributes
    • Product Or Component Type : Single Throw Safety Switch
  • Complementary Attributes
    • UE Rated Operational Voltage : 250 V DC, 240 V AC
