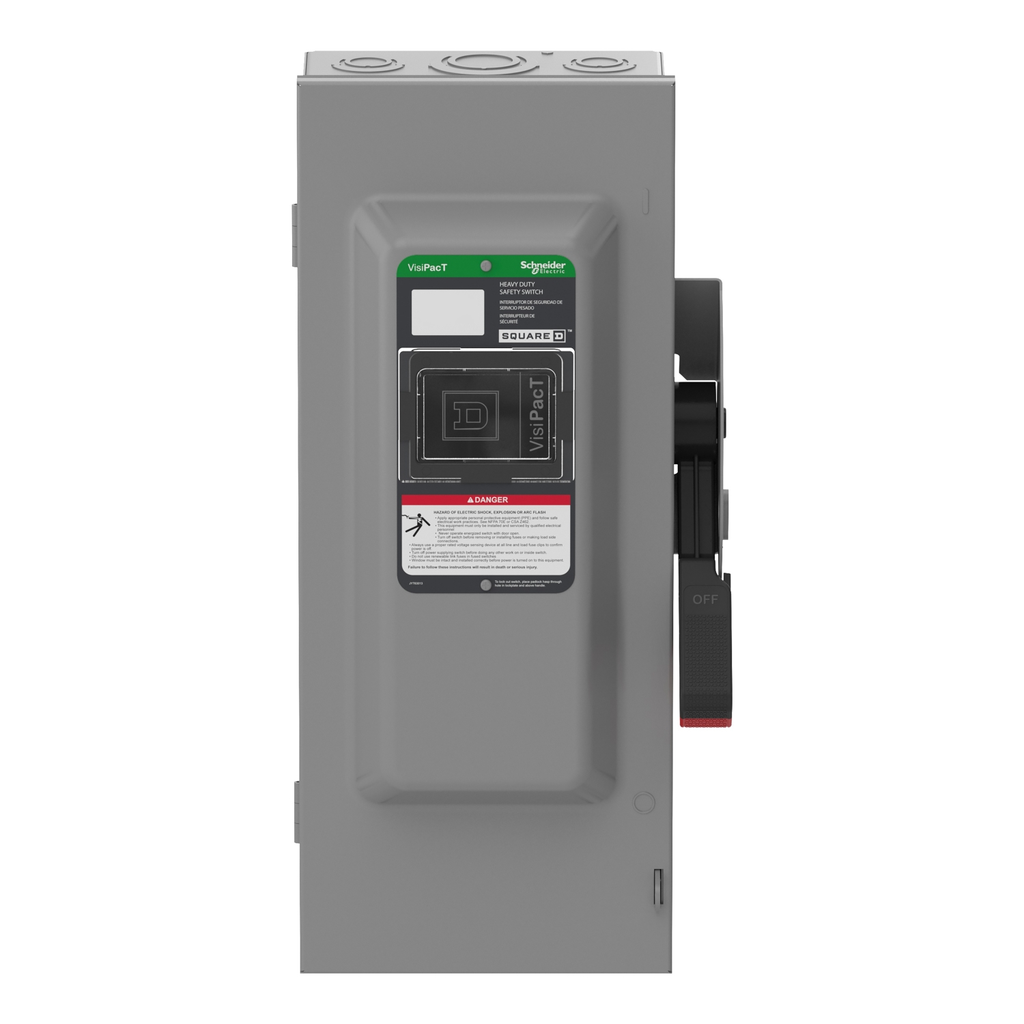

Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 240V, 100A, 2 pole, neutral bonded, ground lugs

HDSS TYPE1 240V 100A 2P FUSE

SQDVH223BGL VH223BGL 3606485893204
807.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 240V, 100A, 2 pole, neutral bonded, ground lugs-2
  • Country of Origin: USA
  • Depth: 7.04 in
  • Fuse Type: J
  • Height: 21.84 in
  • Net Weight: 9 kg
  • Number of Poles: 2
  • Short Circuit Current Rating: 200 kA
  • Weight: 9 kg
  • Width: 8.91 in
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This two blade fusible heavy duty safety switch that is rated at 100A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of 200 kA. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts J fuse types as shipped and can be field modified for H, K, or R fuses, unit is surface mounted. The safety switch has a 3-wire configuration with 2 poles and one solid neutral that is factory installed as well as bonded to the enclosure to meet service equipment requirements. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This two blade fusible heavy duty safety switch that is rated at 100A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of 200 kA. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts J fuse types as shipped and can be field modified for H, K, or R fuses, unit is surface mounted. The safety switch has a 3-wire configuration with 2 poles and one solid neutral that is factory installed as well as bonded to the enclosure to meet service equipment requirements. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2303036EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 20.231582318153297
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 52.820043208260074
    • Carbon Footprint Of The Distribution Phase [A4] : 3 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 97 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 20.7310951073816
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 96.68277953987328
  • Complementary
    • Height : 21.84 in
    • Device Mounting : surface
    • Tightening Torque : 50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
    • Suitable Service Entrance For Canada : suitable service entrance for Canada
    • Services : factory installation
    • Net Weight : 9 kg
    • Short-Circuit Current : 200 kA for J
    • Fuse Type : J
    • Electrical Connection : lugs
    • Awg Gauge : AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper
    • Wiring Configuration : 3-wire (2P + N)
    • Width : 8.91 in
    • Depth : 7.04 in
  • Specifications
    • Country of Origin : United States
    • Width : 8.91 in
    • Height : 21.84 in
    • Weight : 9 kg
    • Disconnector Device Type : fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Nema Degree Of Protection : NEMA 1 steel
    • Line Rated Current : 100 A
    • Motor Power Hp : 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors || 15 hp at 240 V AC 50-60 Hz for 3 phase motors || 15 hp at 240 V AC 50-60 Hz for 1 phase motors || 30 hp at 240 V AC 50-60 Hz for 3 phase motors || 20 hp at 250 V DC
    • Device Composition : neutral (factory bonded)
    • Device Application : heavy application
    • Number Of Poles : 2
    • [Ue] Rated Operational Voltage : 250 V DC || 240 V AC
  • Environment
    • Product Certifications : UL listed file E2875
    • Standards : UL98 || CSA C22.2 No 4 || NOM-003-SCFI-2000
