SQUARE D

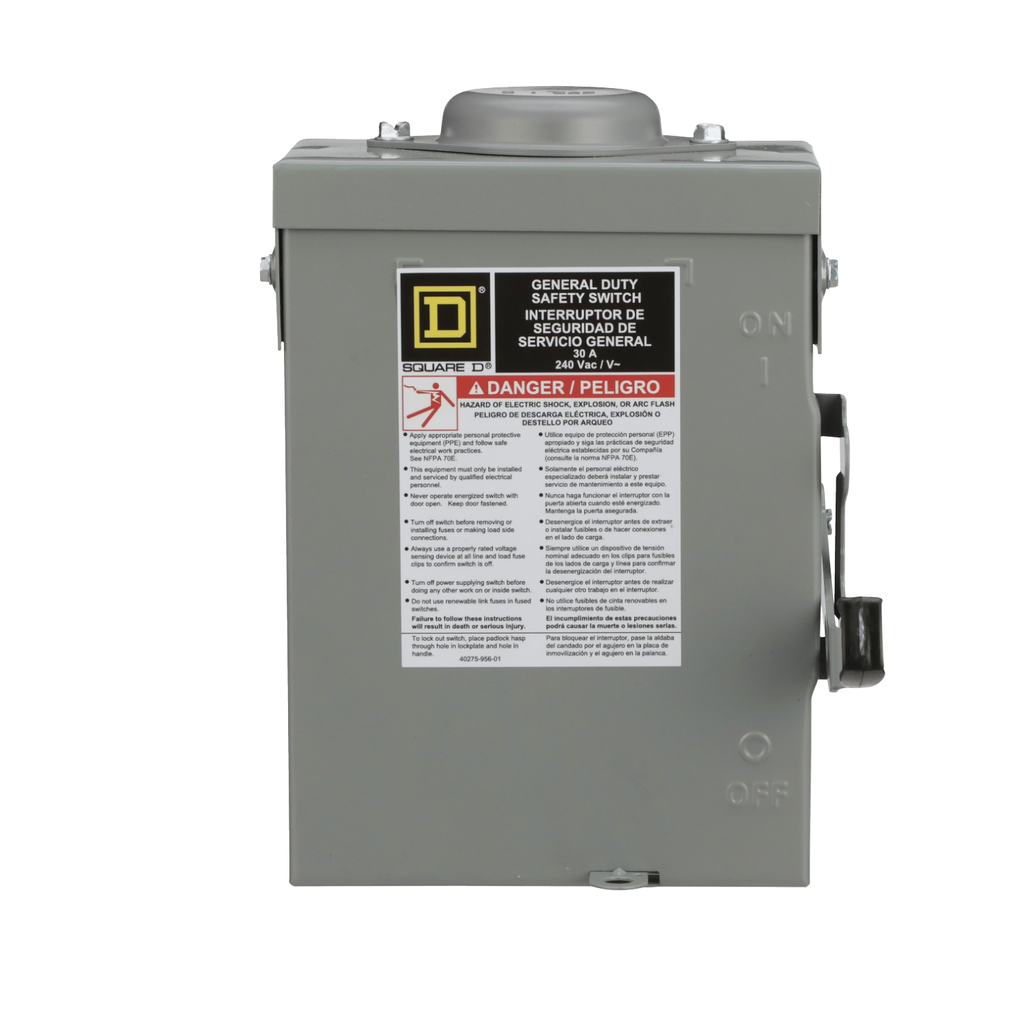

Safety switch, general duty, non fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision

SWITCH - 30A 240V 4SN RT

SQDDU321RB DU321RB 785901491620
138.54 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, general duty, non fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision-2
  • Certifications: UL Listed File E2875
  • Depth: 3.75 in
  • Height: 9.63 in
  • Line Rated Current: 30 A
  • Mounting Type: Surface
  • Net Weight: 9 kg
  • Number of Phases: 3
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 7.75 in
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switches come with an 18 months warranty.
QTY
  • Product Description
  • Specifications
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switches come with an 18 months warranty.
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1310005EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 9.63 in
    • Device Mounting : surface
    • Tightening Torque : 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6)
    • Net Weight : 9 kg
    • Electrical Connection : lugs
    • Awg Gauge : AWG 14...AWG 6 copper || AWG 12...AWG 6 aluminium
    • Width : 7.75 in
    • Wiring Configuration : 3-wire
    • Depth : 3.75 in
  • Specifications
    • Disconnector Device Type : non-fusible disconnect switch
    • Product Or Component Type : Single Throw Safety Switch
    • Phase : 3 phase
    • Series Name : general duty
    • Nema Degree Of Protection : NEMA 3R
    • Line Rated Current : 30 A
    • Motor Power Hp : 3 hp at 240 V AC 60 Hz for 1 phase motors || 7.5 hp at 240 V AC 60 Hz for 3 phase motors
    • Device Composition : none
    • Device Application : residential
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 240 V AC
