Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General dut

• Motor Power Hp
• 1.5 hp at 120 V AC 60 Hz for 1 phase motors
• 3 hp at 120 V AC 60 Hz for 3 phase
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.396463585728742
• 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 9 kg CO2 eq.
• 8.717808345760998
• Ue Rated Operational Voltage
• 240 V AC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 21 kg CO2 eq.
• 20.67460297940429
• Accessories
• DRK30
• GTK03
• EIK031
• EIK032
• B075
• B100
• B125
• B150
• B200
• B250
• Short Circuit Current
• 100 kA maximum depending on fuse H, K or R
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 9 kg CO2 eq.
• 8.661554925675597
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• Carbon Footprint Of The Distribution Phase A4
• 1.1276205872286
• 1 kg CO2 eq.
• Tightening Torque
• 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10)
• 35-35 lbf.in (AWG 14...AWG 10)
• 45-45 lbf.in 8.37-8.37 mm² (AWG 8)
• 45-45 lbf.in 8.37-8.37
• AWG Gauge
• AWG 12...AWG 3 aluminium
• AWG 14...AWG 3 copper
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Conformance Attributes
• Product Certifications : UL listed file E2875
• Complementary Attributes
• Line Rated Current : 60 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Designed for residential and commercial applications
• B2B Bullet Point 2 : Provides over-current and short circuit protection
• B2B Bullet Point 3 : Excellent for disconnecting lighting, air condition, and appliances
• B2B Bullet Point 4 : Quick make, quick break operating mechanism
• B2B Bullet Point 5 : UL listed
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17

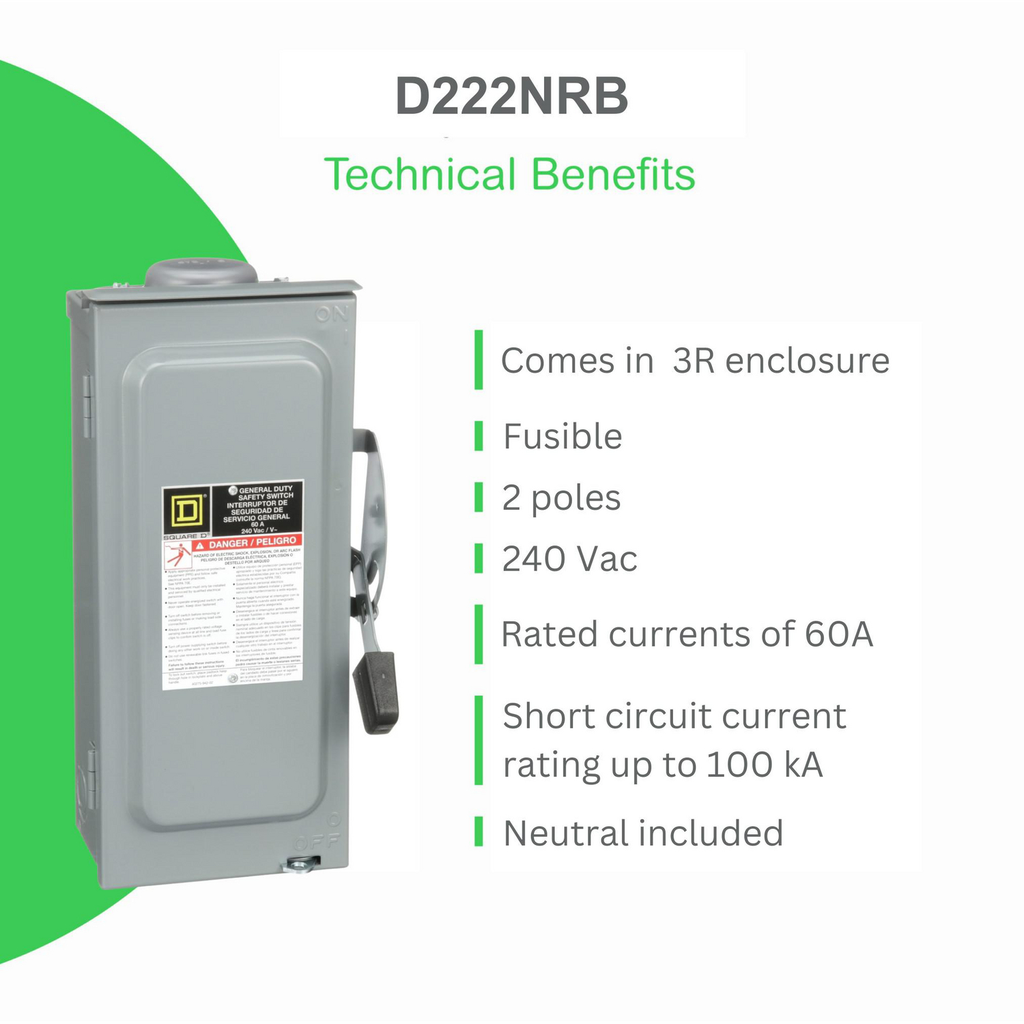

• Html Descr : SWITCH FUSIBLE GD 240V 60A 2P NEMA3R
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 20.6746029794043
• Distribution Carbon Footprint : 1.1276205872286
• Installation Carbon Footprint : 0.396463585728742
• Use Carbon Footprint : 8.6615549256756
• End Of Life Carbon Footprint : 8.717808345761
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1904
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : residential
• Device Composition : neutral (factory installed)
• Disconnector Device Type : fusible disconnect switch
• Electrical Connection : lugs
• Fuse Type : H, K or R
• Number Of Poles : 2
• Package Weight Lbs : 3.792 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Single Throw Safety Switch
• Returnability : Yes
• Series Name : general duty
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 40 kg CO2 eq.
• Wiring Configuration : 3-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 39.57805042379823
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Single Throw Safety Switch
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=458065&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 39.5780504237982
• Environmental Disclosure : ENVPEP2305006EN
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Height : 14.88 in
• Width : 7.45 in
• Depth : 4.87 in
