SQUARE D

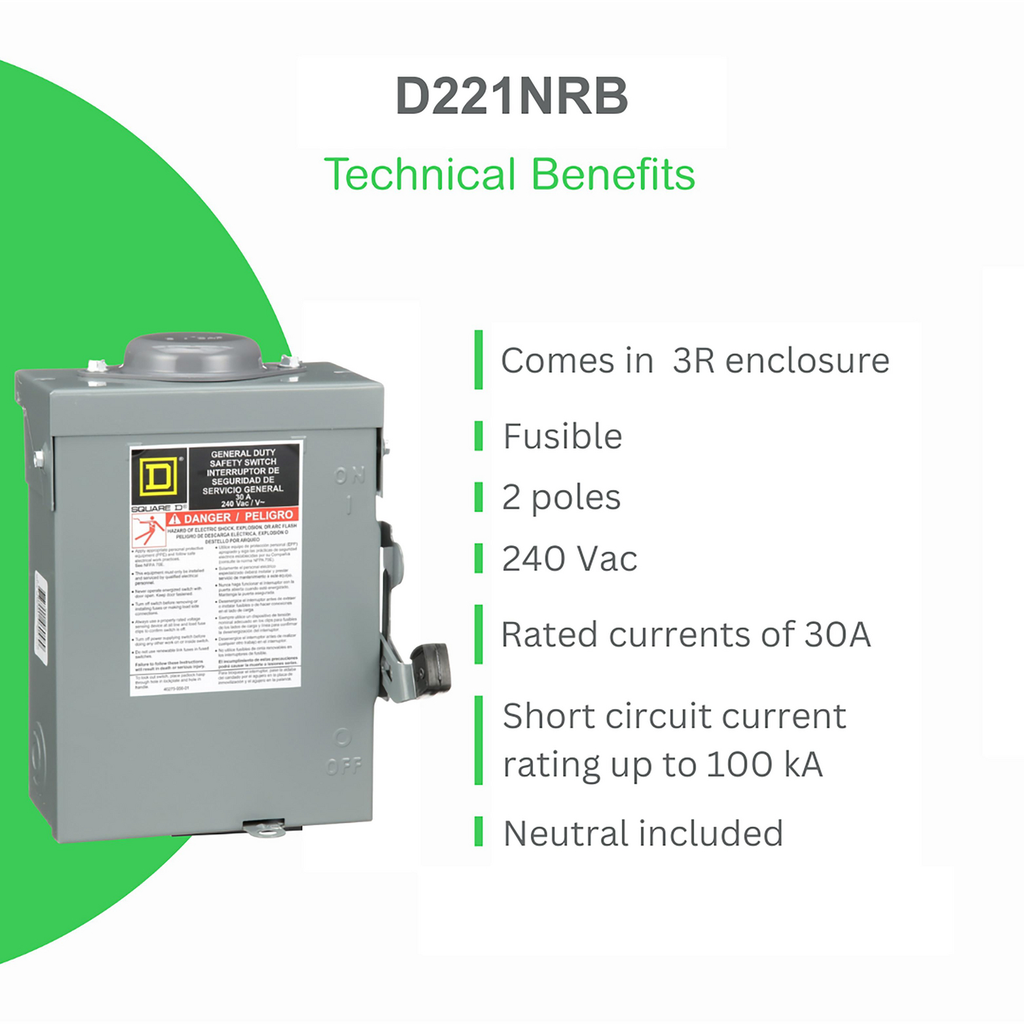

Safety switch, general duty, fusible, 2 pole, 3 wire, 240VAC, 30A, Type 3R, bolt on hub prov, with neutral

SWITCH - 30A 240V 3SN RT

SQDD221NRB D221NRB 785901460589
127.72 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, general duty, fusible, 2 pole, 3 wire, 240VAC, 30A, Type 3R, bolt on hub prov, with neutral-2
  • Depth: 3.63 in
  • Fuse Type: H, K, R
  • Height: 9.25 in
  • Net Weight: 7.7 kg
  • Number of Poles: 2
  • Short Circuit Current Rating: 100 kA
  • Warranty Length: 18 mth
  • Weight: 7.7 kg
  • Width: 7.25 in
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1310005EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 9.25 in
    • Device Mounting : surface
    • Tightening Torque : 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6)
    • Short-Circuit Current : 100 kA maximum depending on fuse H, K or R
    • Net Weight : 7.7 kg
    • Fuse Type : H, K or R
    • Electrical Connection : lugs
    • Awg Gauge : AWG 14...AWG 6 copper || AWG 12...AWG 6 aluminium
    • Width : 7.25 in
    • Wiring Configuration : 3-wire
    • Depth : 3.63 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 7.25 in
    • Height : 9.25 in
    • Weight : 7.7 kg
    • Disconnector Device Type : fusible disconnect switch
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : general duty
    • Nema Degree Of Protection : NEMA 3R
    • Line Rated Current : 30 A
    • Motor Power Hp : 1.5 hp at 240 V AC 60 Hz for 1 phase motors || 3 hp at 240 V AC 60 Hz for 3 phase motors || 3 hp at 240 V AC 60 Hz for 1 phase motors || 7.5 hp at 240 V AC 60 Hz for 3 phase motors
    • Device Composition : neutral (factory installed)
    • Device Application : residential
    • Number Of Poles : 2
    • [Ue] Rated Operational Voltage : 240 V AC
