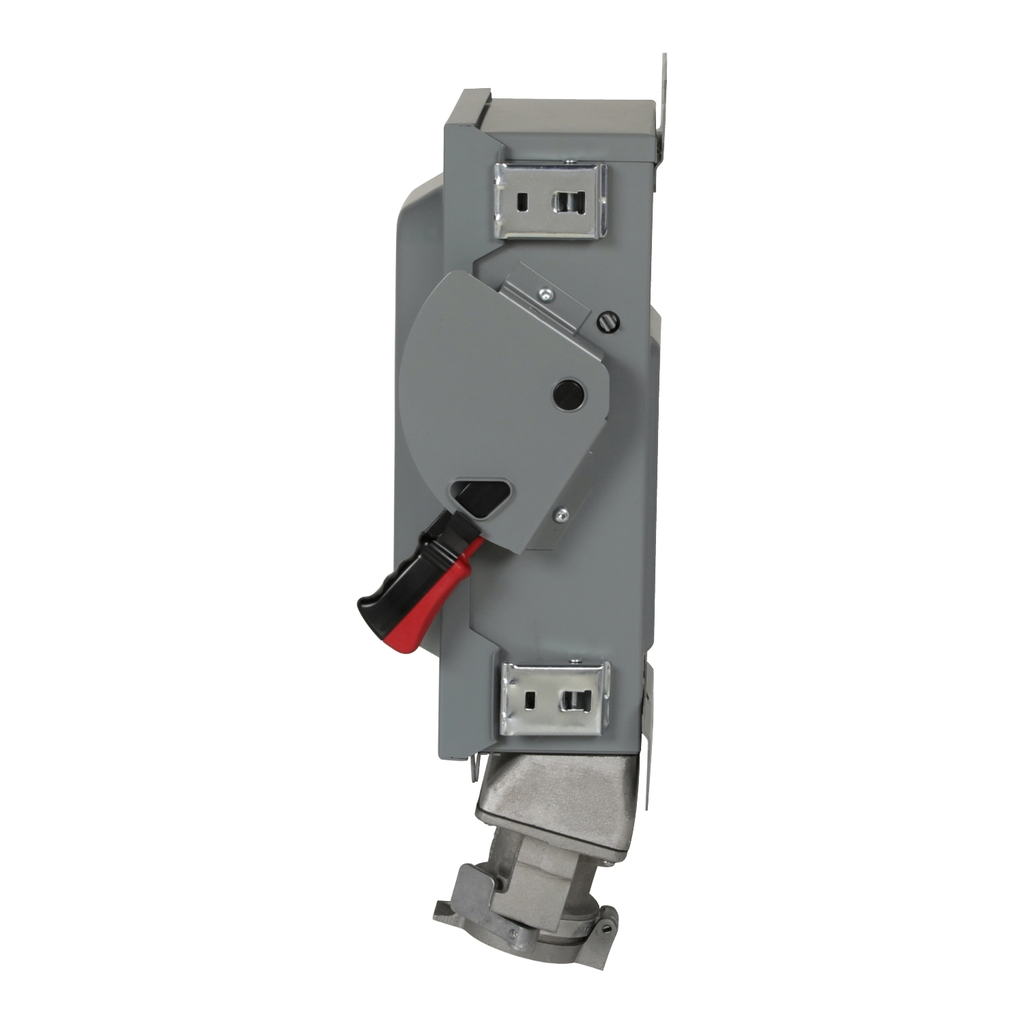

Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Crouse-Hinds Arktite

SWITCH NONFUSIBLE HD 60A CR-HI

SQDHU362AWC HU362AWC 785901195634
2801.60 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Crouse-Hinds Arktite-2
  • Country of Origin: USA
  • Depth: 7 in
  • Height: 16.5 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 10.5 in
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable. These switches provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. Applications Heavy duty safety switches are designed for the following applications. Commercial and industrial installations. Up to 600 V ac or 600 V dc maximum. Up to 200,000 rms symmetrical amperes short circuit current. 30–1200 A. Horsepower ratings.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable. These switches provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. Applications Heavy duty safety switches are designed for the following applications. Commercial and industrial installations. Up to 600 V ac or 600 V dc maximum. Up to 200,000 rms symmetrical amperes short circuit current. 30–1200 A. Horsepower ratings.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2305006EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 12.992332388513393
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 59.45993996715219
    • Carbon Footprint Of The Distribution Phase [A4] : 3 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 1 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 102 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 25.07232479387728
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 101.90784714564708
  • Complementary
    • Height : 16.5 in
    • Device Mounting : surface
    • Tightening Torque : 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10)
    • Electrical Connection : receptacle
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Wiring Configuration : 4-wire
    • Width : 10.5 in
    • Depth : 7 in
  • Specifications
    • Country of Origin : United States
    • Width : 10.5 in
    • Height : 16.5 in
    • Disconnector Device Type : non-fusible disconnect switch
    • Product Or Component Type : Receptacle Switch
    • Product Destination : plug APJ6485 Crouse-Hinds Arktite
    • Nema Degree Of Protection : NEMA 12K
    • Line Rated Current : 60 A
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
