SQUARE D

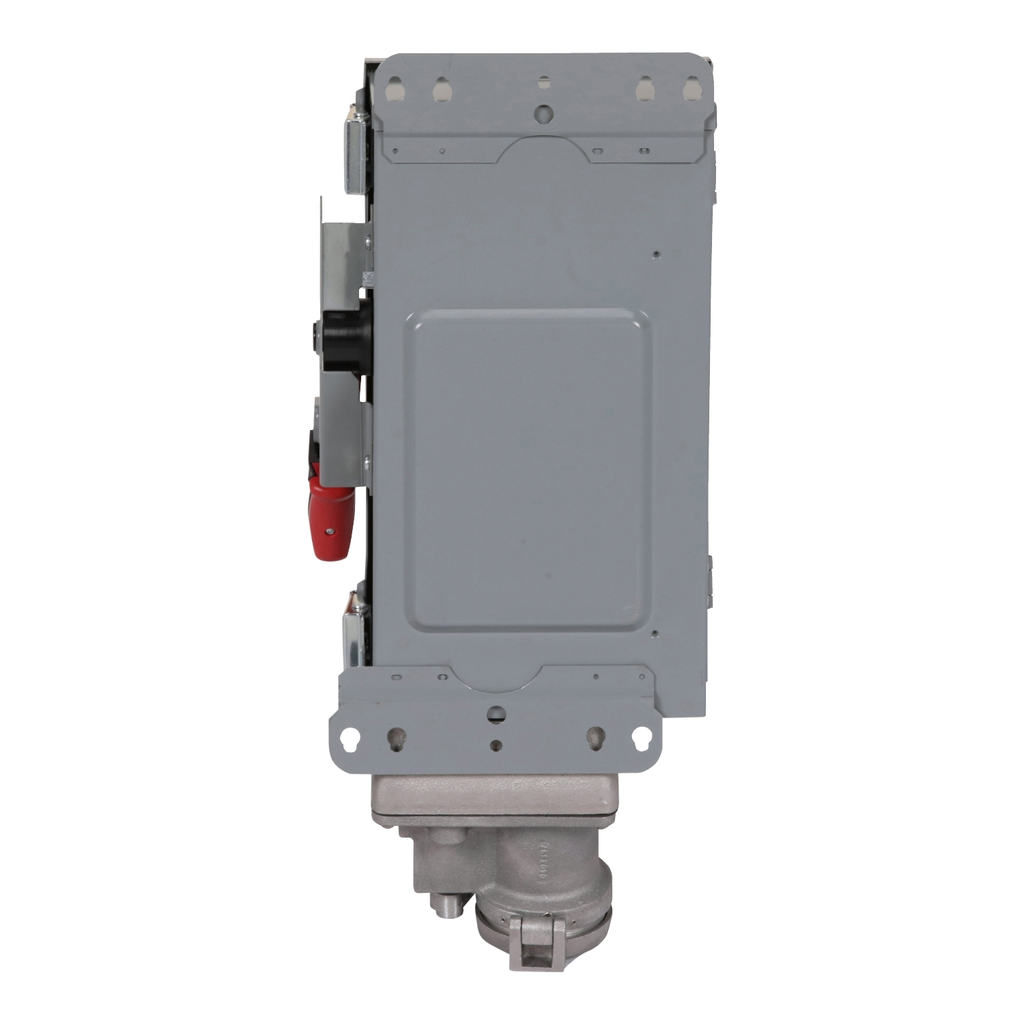

Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite

SWITCH FUSIBLE HD 60A /CR-HI R

SQDH362AWC H362AWC 785901195573
2977.34 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite-2
  • Country of Origin: USA
  • Depth: 7 in
  • Fuse Type: H, J, K, R, T
  • Height: 16.5 in
  • Net Weight: 12 kg
  • Number of Poles: 3
  • Short Circuit Current Rating: 10 kA, 100 kA, 200 kA
  • Warranty Length: 18 mth
  • Weight: 12 kg
  • Width: 10.5 in
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This Heavy Duty Receptacle Switch is a 60 A, Crouse-Hinds Arktite plug. This receptacle switch has a NEMA 3R/12 degree of protection and is made of galvannealed steel. This product is rated for 30hp & 50hp motors. This has a short circuit rating of 10kA@600VAC. This fusible disconnect switch is surface mounted and is 3 phases. This product complys to UL listed standards. Dimensions for this product are 10.5 in (H),16.5 in (W),7 in (D).
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This Heavy Duty Receptacle Switch is a 60 A, Crouse-Hinds Arktite plug. This receptacle switch has a NEMA 3R/12 degree of protection and is made of galvannealed steel. This product is rated for 30hp & 50hp motors. This has a short circuit rating of 10kA@600VAC. This fusible disconnect switch is surface mounted and is 3 phases. This product complys to UL listed standards. Dimensions for this product are 10.5 in (H),16.5 in (W),7 in (D).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2305006EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 12.992332388513393
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 67.50066946362763
    • Carbon Footprint Of The Distribution Phase [A4] : 4 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 1 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 114 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 28.462839174260314
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 113.93183510454755
  • Complementary
    • Height : 16.5 in
    • Device Mounting : surface
    • Tightening Torque : 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10)
    • Short-Circuit Current : 10 kA H or K || 100 kA R, J or T || 200 kA R, J or T
    • Net Weight : 12 kg
    • Fuse Type : H or K || R, J or T
    • Electrical Connection : receptacle
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Wiring Configuration : 4-wire
    • Width : 10.5 in
    • Depth : 7 in
  • Specifications
    • Country of Origin : United States
    • Width : 10.5 in
    • Height : 16.5 in
    • Weight : 12 kg
    • Disconnector Device Type : fusible disconnect switch
    • Product Or Component Type : Receptacle Switch
    • Product Destination : plug APJ6485 Crouse-Hinds Arktite
    • Nema Degree Of Protection : NEMA 12K
    • Line Rated Current : 60 A
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 600 V AC || 250 V DC
