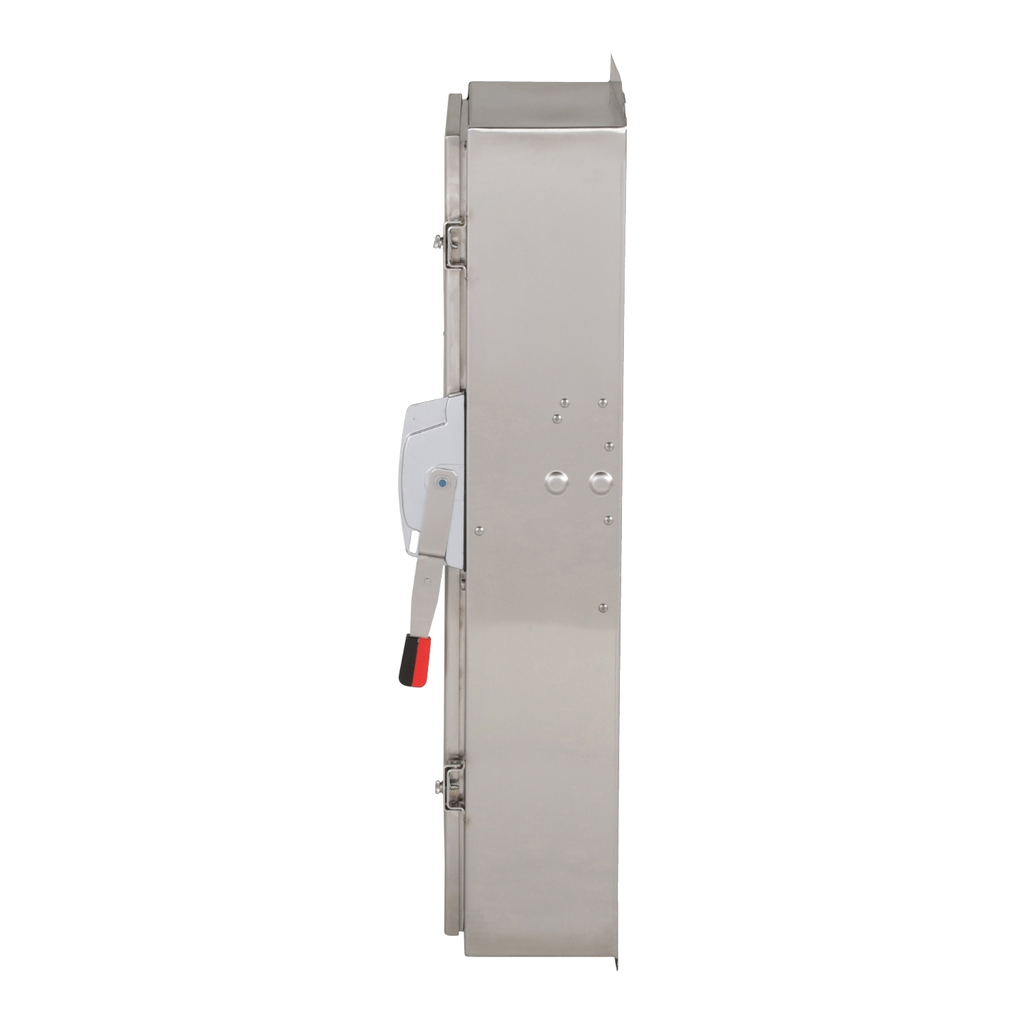

Safety switch, heavy duty, fusible, 400A, 600VAC/VDC, 3 poles, 350HP, NEMA 4, 4X, 5, 304 steel

SW,FUSIBLE 400A 3P NEMA4,4X,5

SQDCH365DS CH365DS 785901610304
16028.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, heavy duty, fusible, 400A, 600VAC/VDC, 3 poles, 350HP, NEMA 4, 4X, 5, 304 steel-2
  • Country of Origin: Mexico
  • Depth: 10.13 in
  • Height: 46.25 in
  • Number of Poles: 3
  • Width: 26.25 in
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 400 amps, three poles, 350 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 4, 4X, and 5 rated.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 400 amps, three poles, 350 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 4, 4X, and 5 rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Mexico
    • Width : 26.25 in
    • Height : 46.25 in
    • Disconnector Device Type : fusible disconnect
    • Product Or Component Type : Single Throw Safety Switch
    • Series Name : heavy duty
    • Electrical Connection : lugs
    • Number Of Poles : 3
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503029_V1
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 547.0206826529308
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 356.5224269771215
    • Carbon Footprint Of The Distribution Phase [A4] : 177 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.2 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 250 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 169.59942703651112
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1250.1316658881958
  • Complementary
    • Height : 46.25 in
    • Device Mounting : surface
    • Tightening Torque : 550-550 lbf.in (AWG 1/0...750 kcmil)
    • Line Rated Current : 400 A
    • Awg Gauge : AWG 1/0...750 kcmil copper or aluminium
    • Width : 26.25 in
    • Depth : 10.13 in
    • Motor Power Hp : 100 hp at 480 V AC 50-60 Hz for 3 phase motors || 250 hp at 480 V AC 50-60 Hz for 3 phase motors || 125 hp at 600 V AC 50-60 Hz for 3 phase motors || 350 hp at 600 V AC 50-60 Hz for 3 phase motors || 50 hp at 250 V DC || 50 hp at 600 V DC
    • Device Composition : none
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Environment
    • Product Certifications : CSA
    • Nema Degree Of Protection : NEMA 4/4X stainless steel 304
