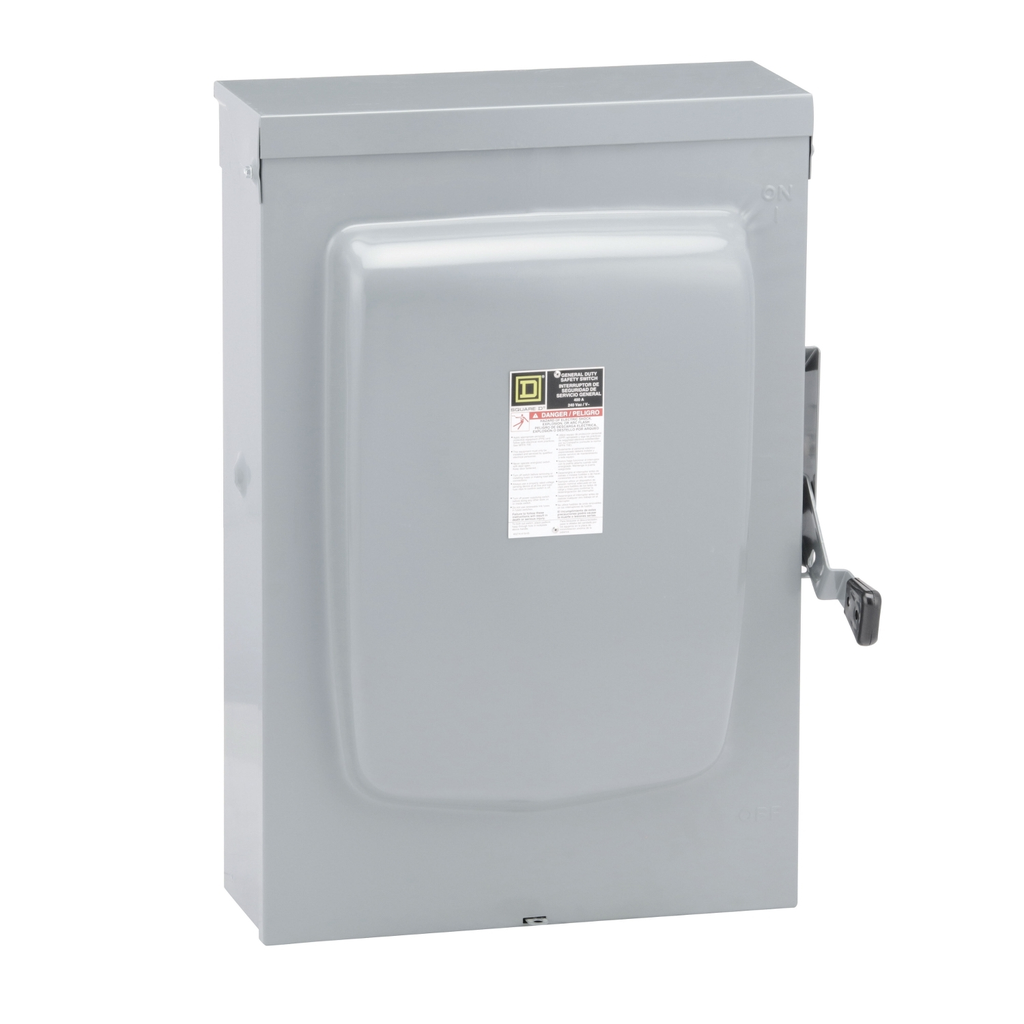

Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 3R, neutral factory installed

SQD D326NR SWITCH FUSIBLE GD 2

SQDD326NR D326NR 785901461661
3619.09 / EACH
http://schema.org/OutOfStock
Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 3R, neutral factory installed
  • Certifications: UL Listed File E2875
  • Depth: 8.88 in
  • Fuse Type: H, J Or R, K
  • Height: 49.13 in
  • Line Rated Current: 600 A
  • Mounting Type: Surface
  • Net Weight: 53 kg
  • Number of Phases: 3
  • Number of Poles: 3
  • Short Circuit Current: 100 kA
  • Warranty Length: 18 mth
  • Width: 25.13 in
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 600A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 4/500 kcmil, aluminum/copper. This switch is certified to UL standards. Dimensions for this product are 49.13 in (H), 25.13 in (W), 8.88 in (D). General Duty safety switches come with an 18 months warranty.
QTY
  • Product Description
  • Specifications
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 600A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 4/500 kcmil, aluminum/copper. This switch is certified to UL standards. Dimensions for this product are 49.13 in (H), 25.13 in (W), 8.88 in (D). General Duty safety switches come with an 18 months warranty.
  • Environment
    • Product Certifications : UL listed file E2875
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1404026EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Height : 49.13 in
    • Device Mounting : surface
    • Tightening Torque : 450-450 lbf.in (AWG 4...500 kcmil)
    • Short-Circuit Current : 100 kA maximum depending on fuse H, K, J or R
    • Net Weight : 53 kg
    • Fuse Type : H, K, J or R
    • Electrical Connection : lugs
    • Awg Gauge : AWG 4...500 kcmil aluminium/copper
    • Width : 25.13 in
    • Wiring Configuration : 4-wire (3PH + G)
    • Depth : 8.88 in
  • Specifications
    • Disconnector Device Type : fusible disconnect switch
    • Product Or Component Type : Single Throw Safety Switch
    • Phase : 3 phase
    • Series Name : general duty
    • Nema Degree Of Protection : NEMA 3R
    • Line Rated Current : 600 A
    • Motor Power Hp : 75 hp at 240 V AC 60 Hz for 3 phase motors || 150 hp at 240 V AC 60 Hz for 3 phase motors
    • Device Composition : neutral (factory installed)
    • Device Application : residential
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 240 V AC
