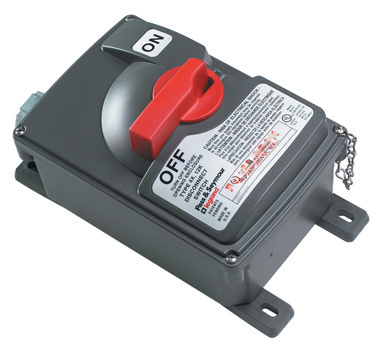

Non-Fusible Safety Switch with Auxiliary Contact, 60A

Non-Fusible Safety Switch with Auxiliary Contact, 60A

PSSPS60SSAX PS60-SSAX 785007150131
731.09 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Non-Fusible Safety Switch with Auxiliary Contact, 60A-1
  • Amperage: 60 A
  • Applications: Industrial
  • Connection Type: Hardwired
  • Contact Rating: 10 A, 600 V
  • Country of Origin: USA
  • Depth: 6.31 in
  • Enclosure Material: Plastic
  • Enclosure Type: 12, 4X
  • Finish: Matte
  • Height: 12.38 in
  • Material: VALOX
  • Switch Type: Safety Switch
  • Voltage: 600 V
  • Width: 9.13 in
Non-Fusible Safety Switch with Auxiliary Contact, 60 Amps, 600 VAC. The first non-metallic NEMA 4X Non-Fusible Safety Switch line UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). Pass and Seymour Non-Fusible Safety Switches feature extra-tough components, including an impact-resistant Valox NEMA 4X enclosure. And an innovative design that delivers safe, sure operation under the worst conditions.
QTY
  • Product Description
  • Features
  • Specifications
Non-Fusible Safety Switch with Auxiliary Contact, 60 Amps, 600 VAC. The first non-metallic NEMA 4X Non-Fusible Safety Switch line UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). Pass and Seymour Non-Fusible Safety Switches feature extra-tough components, including an impact-resistant Valox NEMA 4X enclosure. And an innovative design that delivers safe, sure operation under the worst conditions.
  • Features
    • Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage.
    • Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings. Withstands the harshest industrial environments.
    • Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse.
    • Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses.
    • Durable, stainless steel coverretaining chain makes installation and maintenance more convenient.
    • Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout provisions and provides plenty of grip for sure, easy operation.
    • Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle.
    • Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance.
    • Bottom and top wiring access options. No unnecessary openings to compromise water resistance.
    • Top mount auxiliary contact enables additional control functions or signal lights.
    • Certified for IP69 applications.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 6.31 in
    • Height : 12.38 in
    • Special Features : Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Nonconductive, watertight, corrosion-, heat-, and impact-resistant Valox® enclosure ensures NEMA 4X and 12 ratings and withstands the harshest industrial environments. Corrosion-resistant, stainless steel captive screws speeds installation, minimize risk of lost parts, and withstand abuse. Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses. Durable, stainless steel cover-retaining chain makes installation and maintenance more convenient. Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout requirements and provides plenty of grip for sure, easy operation. Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle. Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance. Bottom and top wiring access options. No unnecessary openings to compromise water resistance. Top mount auxiliary contact enables additional control functions or signal lights.
    • Standard : UL
    • Width : 9.13 in
    • Standard : CSA
    • Country of Origin : United States
    • Amperage : 60.0 A
    • Features : Durable
    • Type : Safety Switch
    • Environmental Conditions : Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable
    • Features : Watertight
    • Wiring Location : Top
    • Connection : Hardwired
    • Voltage : 120 to 600 V
    • Enclosure Type : NEMA 12
    • Enclosure Type : NEMA 4X
    • Enclosure Type : Plastic
    • Wiring Location : Bottom
    • Contact Rating : 10A @ 600VAC
    • Features : Corrosion Resistant
    • Application Sector : Industrial
    • Horsepower Rating : 3 HP @ 120 VAC
    • Horsepower Rating : 10 HP @ 208 VAC
    • Horsepower Rating : 10 HP @ 240 VAC
    • Horsepower Rating : 15 HP @ 277 VAC
    • Horsepower Rating : 20 HP @ 480 VAC
    • Contact Configuration : 1 N.O. & 1 N.C.
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Horsepower Rating : 20 HP @ 3ø 240 VAC
    • Horsepower Rating : 20 HP @ 3ø 480 VAC
    • Horsepower Rating : 20 HP @ 3ø 600 VAC
    • Horsepower Rating : 20 HP @ 3øY 120/208 VAC
    • Horsepower Rating : 40 HP @ 3øY 277/480 VAC
    • Horsepower Rating : 50 HP @ 3øY 347/600 VAC
    • Maximum Horsepower Rating : 50 HP @ 3øY 347/600 VAC
    • Color : Gray
    • Finish : Matte
    • Material : VALOX
    • Product Line : Pass & Seymour
