SQUARE D

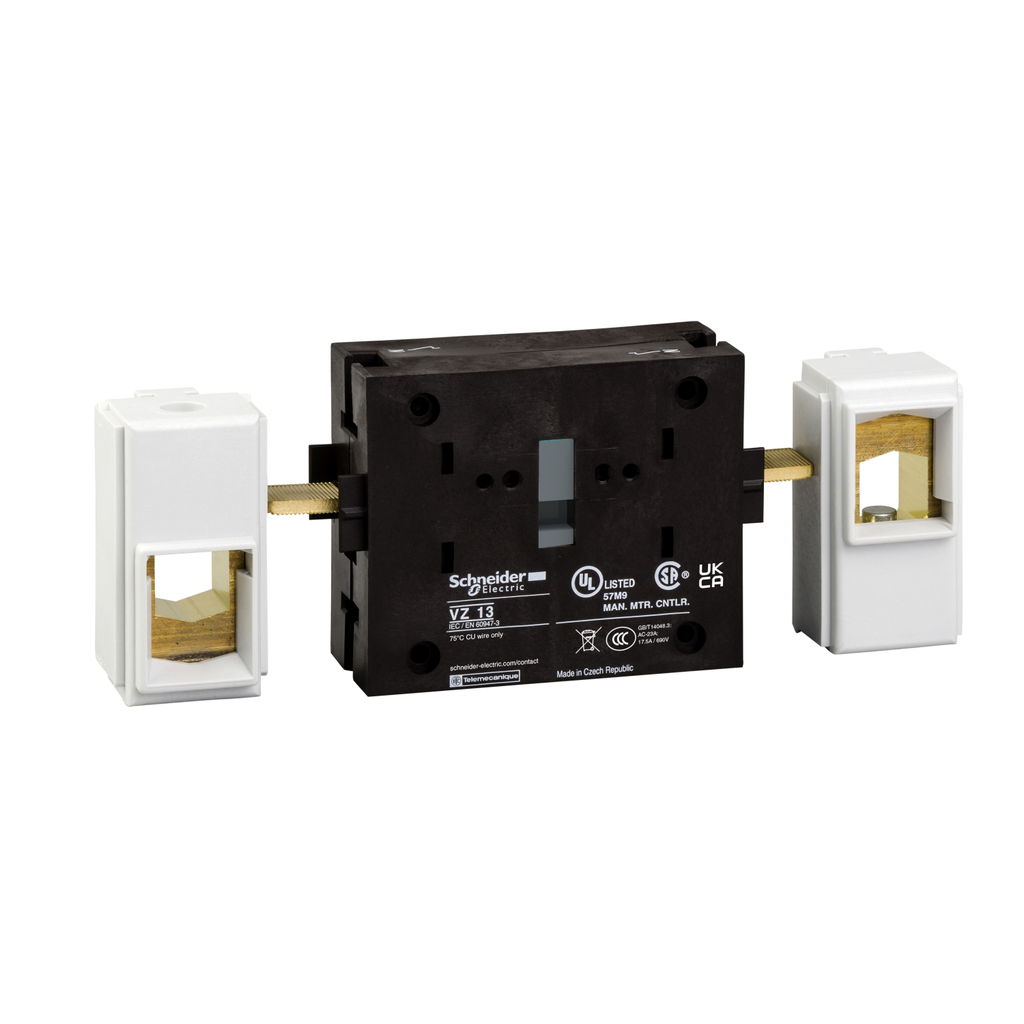

Additional neutral block,TeSys Control,175A,for V5 / V6

TESYS VARIO - ADDITIONAL NEUTR

SQDVZ13 VZ13 3389110551921
71.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Additional neutral block,TeSys Control,175A,for V5 / V6-1
  • Country of Origin: Czechia
  • Depth: 63 mm
  • Height: 125 mm
  • Net Weight: 0.25 kg
  • Warranty Length: 18 mth
  • Weight: 0.25 kg
  • Width: 30 mm
VZ13 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
QTY
  • Product Description
  • Specifications
VZ13 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
  • Environment
    • Product Certifications : UL || CSA || GL || UKCA
    • Ambient Air Temperature For Operation : -20-50 °C
    • Standards : IEC 60947-3
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Protective Treatment : TC
    • Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
    • Fire Resistance : 960 °C IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2211001
    • Packaging Without Single Use Plastic : No
    • Scip Number : e8ec339b-85c3-4216-bd7f-79794a93ade1
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 7.7097759893754505
  • Complementary
    • [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
    • Height : 125 mm
    • [Ith] Conventional Free Air Thermal Current : 175 A
    • Net Weight : 0.25 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV
    • Mounting Location : left || right
    • Connections - Terminals : screw clamp terminals 70-70 mm² flexible - with cable end || screw clamp terminals 95-95 mm² solid
    • Electrical Durability : 30000 cycles DC-1...5 || 30000 cycles AC-21
    • Mechanical Durability : 30000 cycles
    • Width : 30 mm
    • Tightening Torque : 22.6-22.6 N.m screw clamp terminals
    • Depth : 63 mm
  • Specifications
    • Country of Origin : Czechia
    • Width : 30 mm
    • Height : 125 mm
    • Weight : 0.25 kg
    • Network Frequency : 50/60 Hz
    • Network Type : AC || DC
    • Range Compatibility : TeSys TeSys VARIO switch disconnector
    • Product Or Component Type : additional neutral block
    • Performance Level : high performance
    • Range : TeSys
    • Contacts Type And Composition : 1 NO
    • Contact Operation : early make, late break
    • Poles Description : 1N
    • Product Compatibility : V5 || V6
    • Device Short Name : VZ
