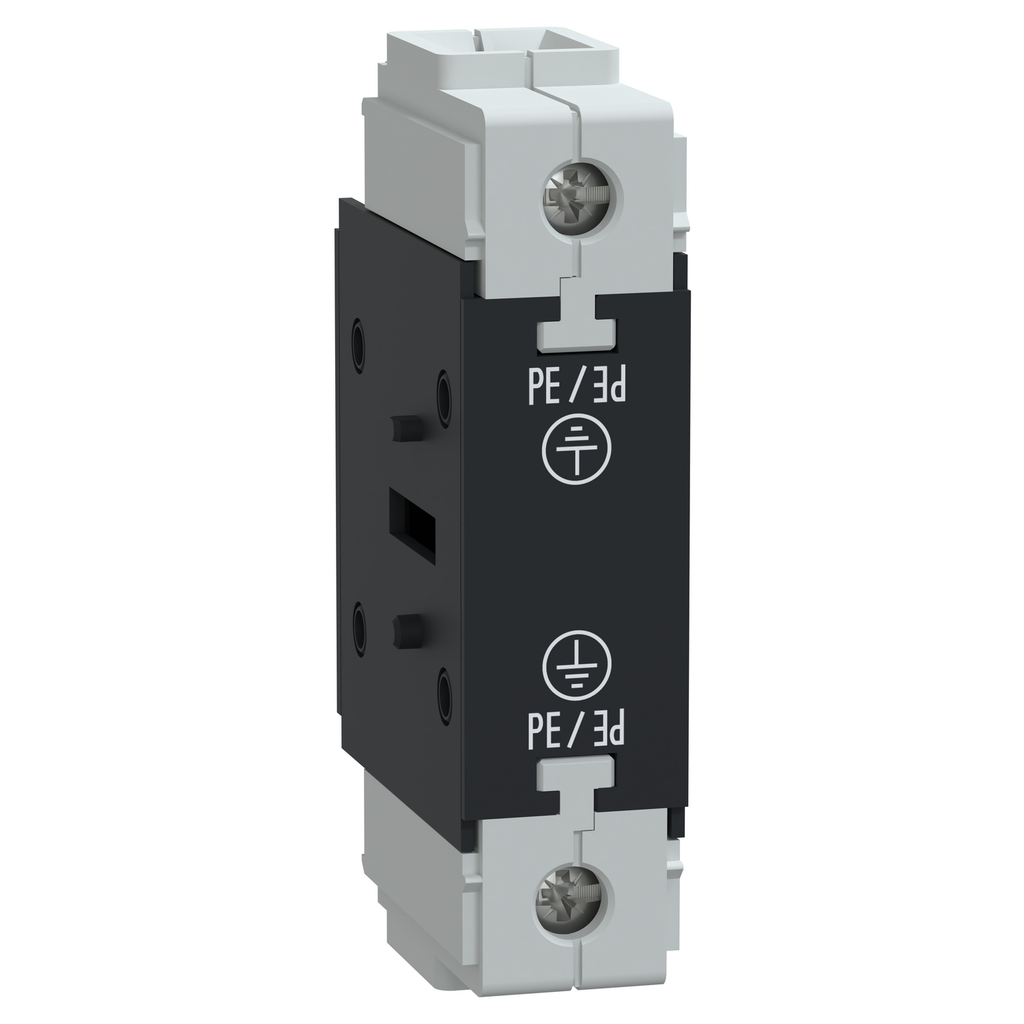

VZ15 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A to 80A 690V, to be used with V3 and V4 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Environment
• Product Certifications : UL || CSA || GL || UKCA
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60947-3
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Protective Treatment : TC
• Mechanical Robustness : vibrations 10...150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
• Fire Resistance : 960 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2211001
• Packaging Without Single Use Plastic : No
• Scip Number : 65661eb0-9ea7-4d52-b0a4-16b981f28f63
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.5107007432432431
• Complementary
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• Height : 83 mm
• [Ith] Conventional Free Air Thermal Current : 80 A
• Net Weight : 0.1 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Mounting Location : left || right
• Connections - Terminals : screw clamp terminals
• Width : 20 mm
• Depth : 46 mm
• Specifications
• Country of Origin : Czechia
• Width : 20 mm
• Height : 83 mm
• Weight : 0.1 kg
• Network Frequency : 50/60 Hz
• Network Type : DC || AC
• Product Or Component Type : additional earthing block
• Performance Level : high performance
• Range : TeSys
• Contacts Type And Composition : without
• Product Compatibility : V3 || V4
• Device Short Name : VZ
